Step 19
Install the lid
You will need: lid, two hinge pins and two hair pin cotters.
Set the lid in place from the rear of the barbecue. Close and
align the hinge at the rear. Insert hinge pins from the
outside through the hinge. Insert hair pin cotters into the
small holes in the hinge pins. Figure 24.

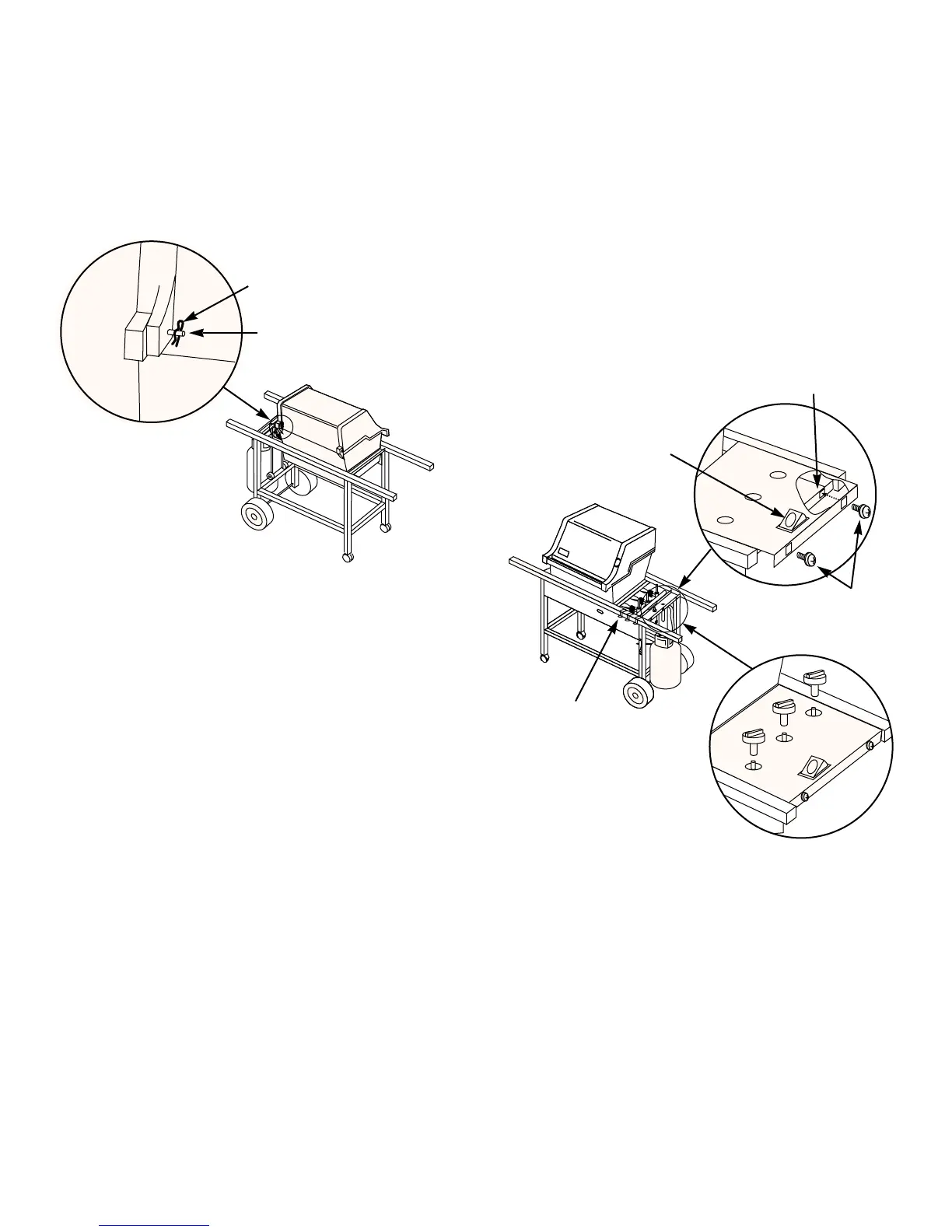

Figure 24
Hair pin cotter
Hinge pin
Step 20
Install tool holders, control panel and burner
control knobs
You will need: three tool holders, control panel, two Phillips
screws/washers, a Phillips screwdriver, and three burner
control knobs.
Hook the tool holders over the frame rail. Figure 25.
Set the control panel in place over both frame braces. (Hold
the Crossover Ignition button up while setting the control
panel in place.) Line up the holes in the control panel with
the holes in the inserts in the frame brace. Insert the screws
and tighten with a Phillips screwdriver until snug. Do not
overtighten. Figure 25 (a).
Push on the burner control knobs. Figure 25 (b).
Figure 25
Insert in frame brace
Tool holders
(a)
(b)
Control panel
Phillips screws/
washers
Crossover
Ignition
Button
