20
Slot in frame
(view from below)
Insert one end of the hinge rod into the hole in the frame.
Figure 27 (a).
Insert the other end into the hole in the swing table end
bracket. Figure 27 (b). Hold the end bracket at an angle so
the lower tab is inside the frame tube. Push the bracket into
the frame. Check to see that the lower tab of the bracket is
hooked in the slot in the frame. Figure 27 (c).
To fully seat the bracket, you may have to tap it lightly with
a hammer.
WARNING: If swing table end bracket is in any way
cracked or damaged, do not use swing table. Call our
Customer Service Center to order a new part.
WARNING: The load limit for the swing table is
30 pounds.

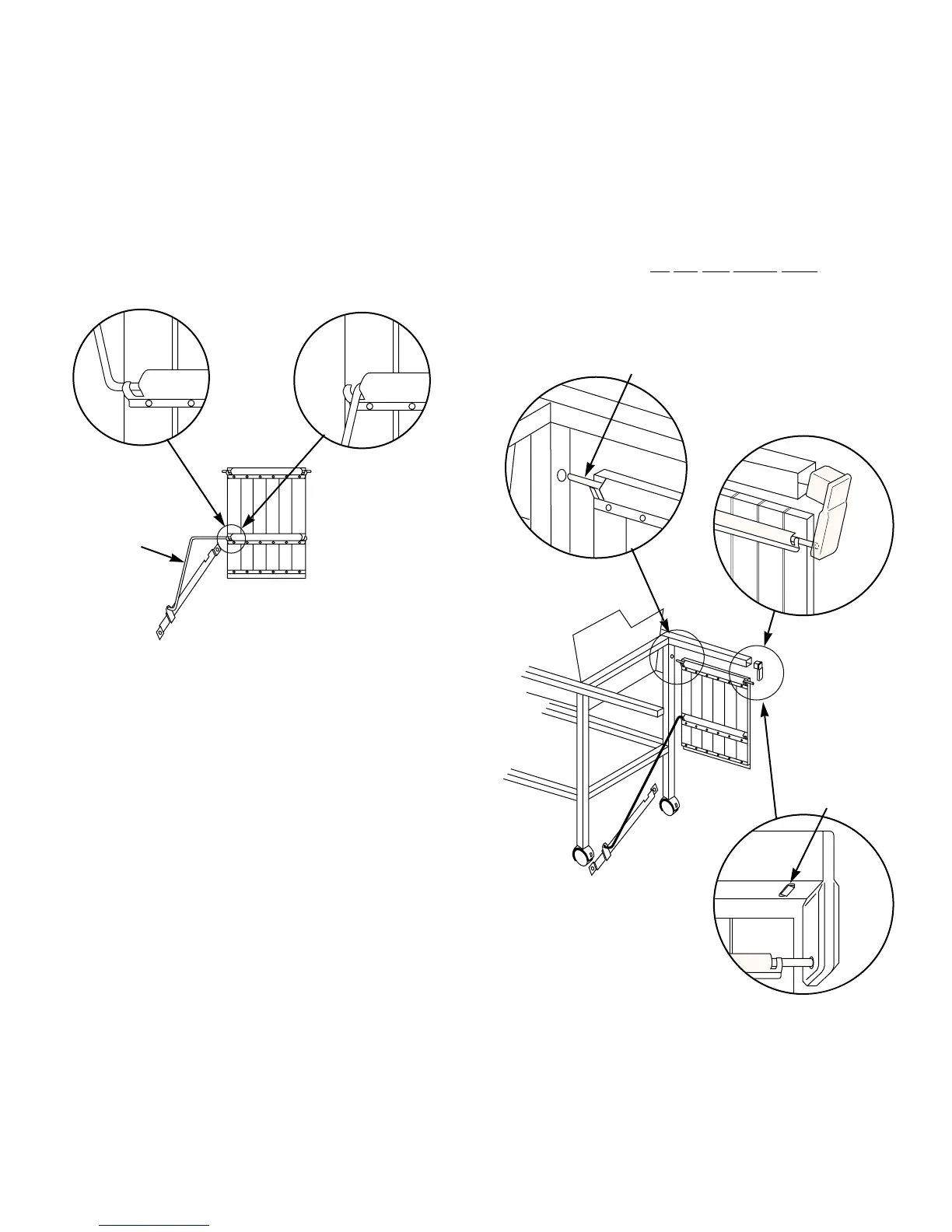

Figure 27
(c)
View from rear
of barbecue
Hinge rod
(b)
(a)
Step 21
Install swing table
You will need: swing table end bracket, two 10-24 hex
nuts, two 10-24 x 1 3/4 inch machine screws, slide bar
assembly, swing table, four nylon washers, screwdriver
and pliers.
Allow the slide bar to hang down. Push the support rod
into the lower support bracket. Figure 26 (a). Swing the
rod up so you can slide the rod all the way inside the
locking tab. Figure 26 (b). The rod should swing freely
inside the locking tab. Figure 26 (c).
Figure 26
(a)
(b)
(c)
Support rod
To Next Page
