21

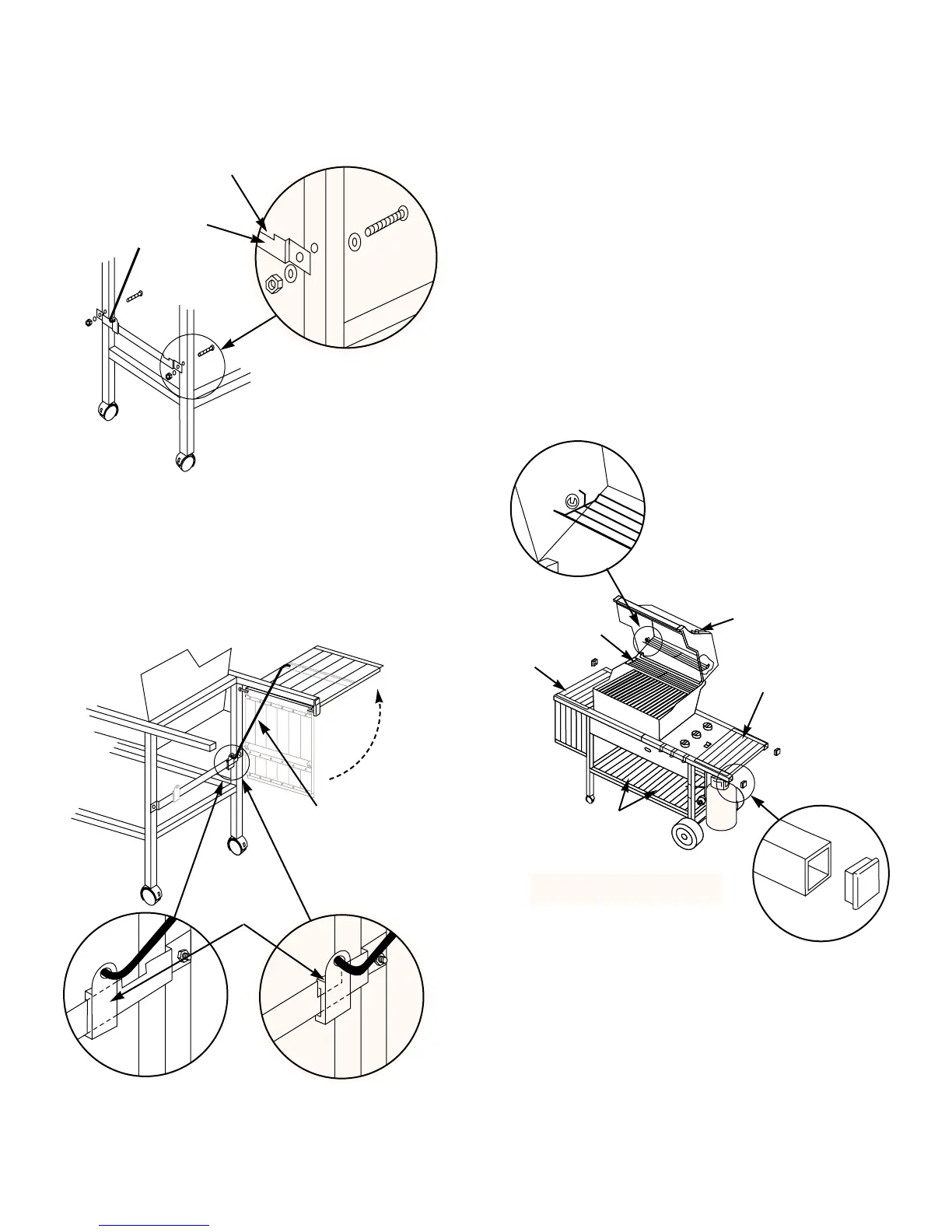

Position slide bar assembly on the outside of the caster
frame. Put a nylon washer on each 1 3/4 inch screw, insert
screws through frame and slide bar assembly and add
nylon washers and hex nuts. Tighten nuts using a
screwdriver and pliers. Figure 28.
Figure 28
View from front
of barbecue
Notch to the front
Slide bar
To lower table: Pull support rod up to disengage slide lock,
and lower table. To raise table, lift table up and engage slide
in locked position. Figure 29.
View from rear
of barbecue
Support rod
Locked position
Unlocked position
Figure 29
Slide
Step 22
Complete accessory installation
You will need: two work tables, two accessory trays, Warm-
Up Basket, warming rack, thermometer, three tubing plugs
and a hammer.
Insert one end of the Weber Warm-Up Basket into the hole
in the right end of the lid and the other end into the slot in
the left end of the lid. Figure 30 (a).
Set the work tables onto the left and right side rails.
Figure 30 (b).
Set the accessory trays between the two frame connectors.
Figure 30 (c).
Set the warming rack into the slots at the rear of the
cooking box. Figure 30 (d).
Insert the thermometer into its holder. Figure 30 (e).
Insert tubing plugs into the ends of the frame. To fully seat
the plugs, you may have to tap them lightly with a hammer.
Figure 30 (f).
Figure 30
(a)
(d)
(e)
(f)
(b)
(c)
(b)
CAUTION: To keep the barbecue stationary, the tabs
on the locking casters should be in the down position.
