25
Troubleshooting

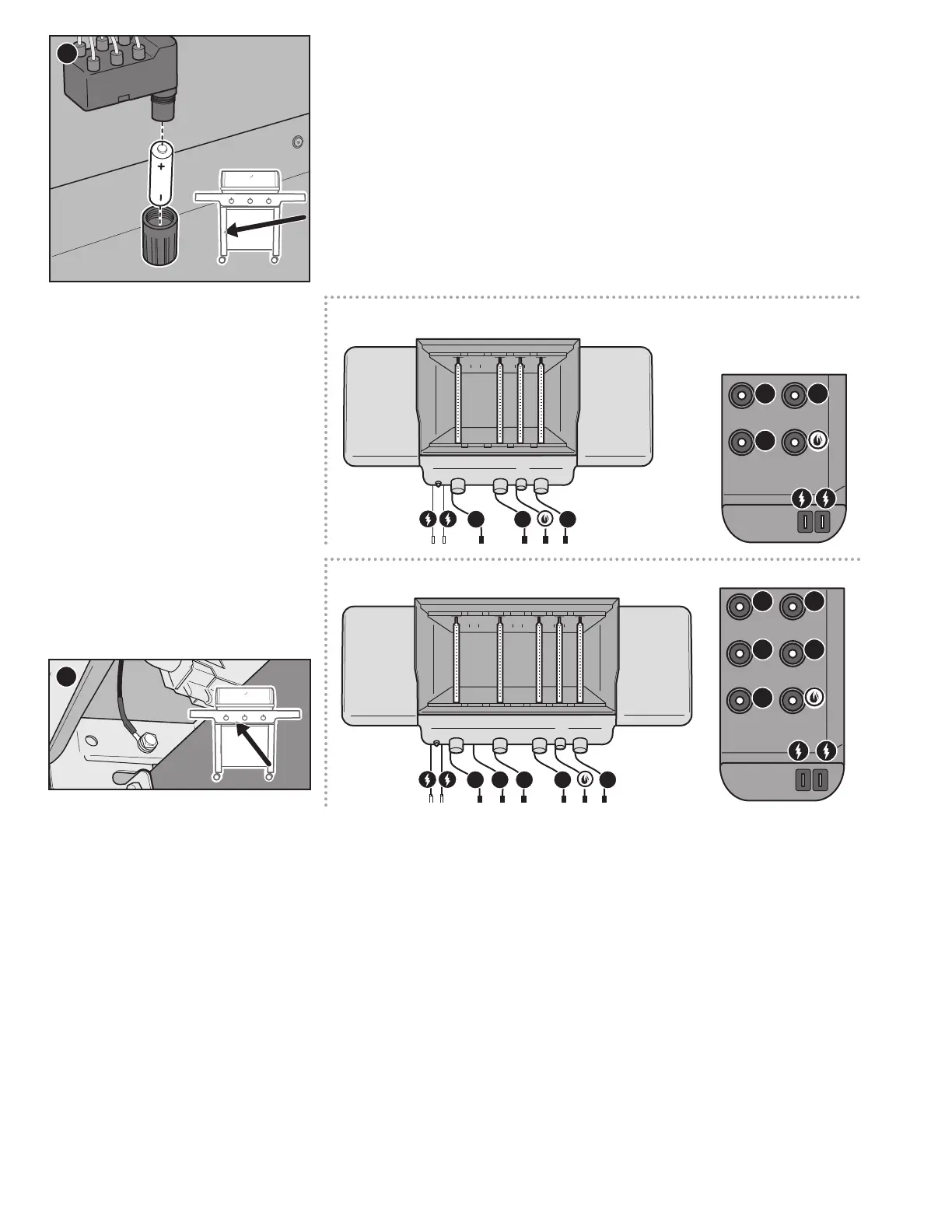

Checking the Components of the
Electronic Ignition System
When pressing the ignition button you should hear a
ticking sound. If you cannot hear the ticking sound,
check the battery, then check the wires. Remove the
heat shield to check these components.
Checking the Battery
There are three potential issues with the battery that
supplies the power to your ignition module that need
to be checked:
1) Some batteries have a plastic protective wrap
around them. (Do not confuse this plastic with
the battery label.) Check that this plastic wrap is
removed.
2) Confirm that the battery is installed correctly (C).
3) If the battery is old, replace it with a new battery.
Checking the Ground Wire
Models 425s and 435 have a ground wire connected to
the manifold bracket. This is visible from beneath the
control panel (D):
1) Check that the ground wire is properly secured with
a screw.
Checking the Wires
There are two potential trouble spots that need to be
checked:
1) Check that the ignition wires are connected
securely to the terminals on the ignition button
under the control panel.
2) Make sure the ignition wires are properly attached
to the ignition module. The wire terminals are
colour coded to correspond with the terminals on
the ignition module. The number of wires will vary
per model.
NOTE: Reinstall the heat shield to the ignition module.
325s Igniter Module Wire Chart
D
C
425s Igniter Module Wire Chart
5
3
1
4
2
1 3 425
1 2 3
3
1
2
