11

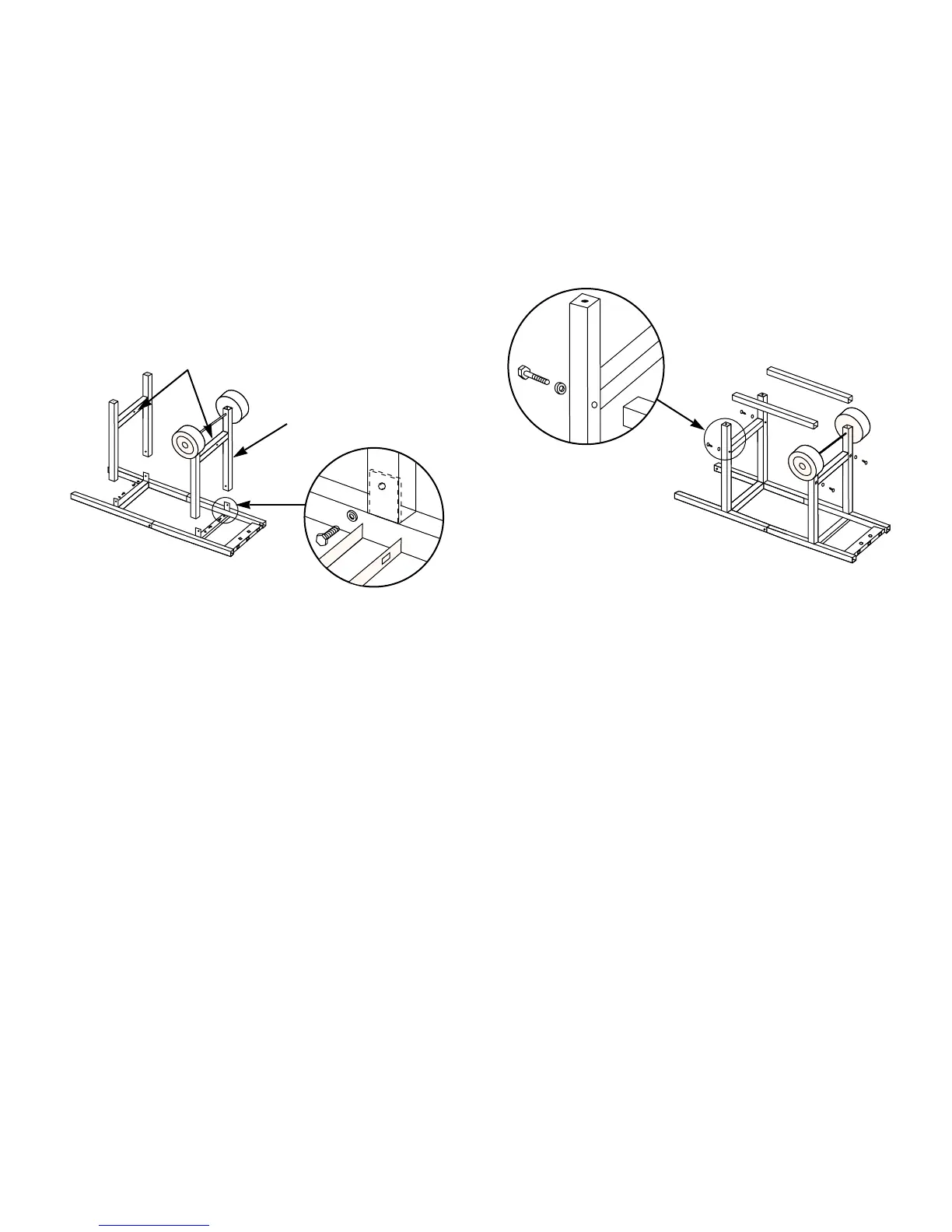

Figure 3
Step 4
Continue frame assembly
You will need: caster frame, wheel frame, four 1/4-20 x 1/2
inch bolts, four nylon washers and a 7/16 inch wrench.
Place the caster frame onto the tabs of the left frame with
the dimple to the inside. Figure 3. Place the wheel frame
onto the tabs of the right frame with the dimple to the
inside. The fuel scale decal should face away as shown.
Figure 3.
The leg tabs must be on the inside of the frames.
Add the washers to the bolts, insert in the holes as shown
and tighten with the wrench. Figure 3.
Dimples to
the inside
Fuel scale
decal
Step 5
Complete frame assembly
You will need: partial frame assembly, two frame
connectors, four 1/4-20 x 2 inch bolts, four nylon
washers and a 7/16 inch wrench.
Hold one frame connector between the leg and wheel
frame. Add the nylon washer to the bolt. Put the bolt
through the frame and screw into frame connector.
Tighten.
Repeat procedure with the other frame connector. Figure 4.
Figure 4
