C-5
Install Right Work Surface
You will need right work surface, two 1/2 inch bolts,
two nylon washers and a 7/16 inch or adjustable
wrench.

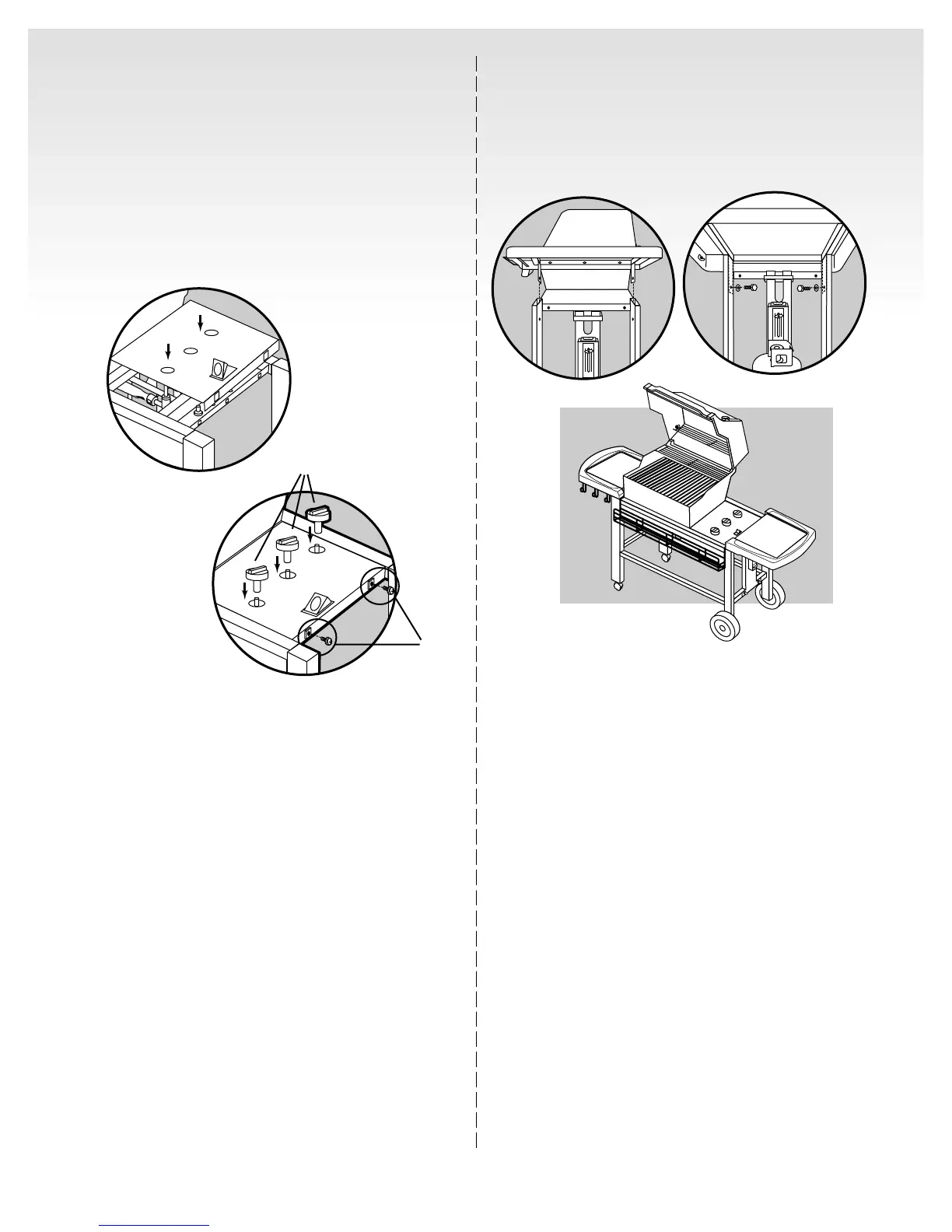

Insert the right work surface tabs in the slots In the
frame(1). Slip washers on the bolts and insert the bolts
as shown(2). Tighten
(2)
Reinstall control panel (after checking for gas
leaks)
(1) Set the control panel in place over both sides of
the frame. Hold the crossover ignition button up
while setting the control panel in place.
(2) Line up the control panel with the white plastic
plugs in the frame brace. Insert screws and tighten
with a Phillips screwdriver until snug. Do not
overtighten.
(3) Push each of the burner control knobs onto their
valve.
(1)
(2)
(3)
To Next Page
