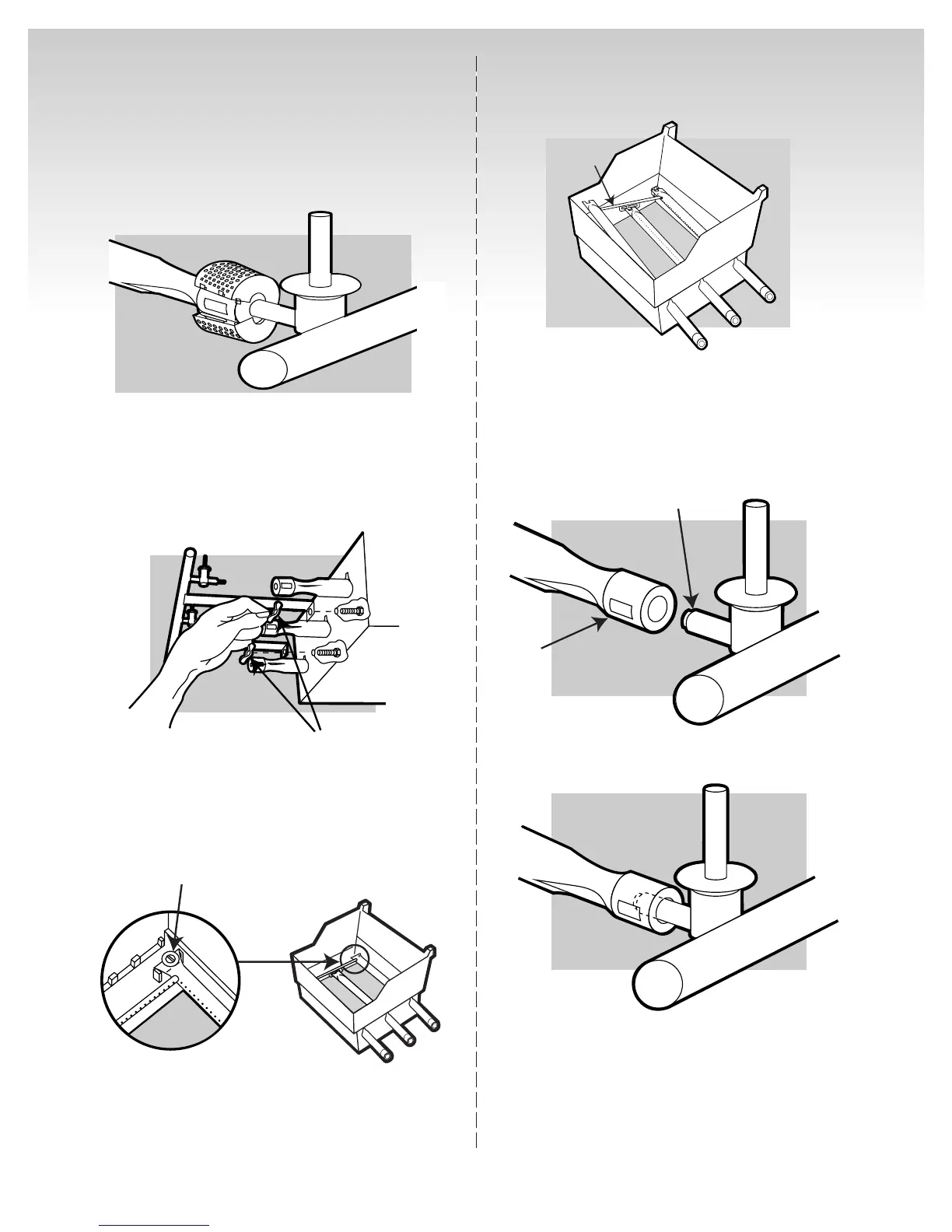

Replacing Main Burners
1) Your Weber Gas Barbecue must be OFF and cool.
2) Turn gas OFF at source.
3) To remove control panel: take off the burner
control knobs. Remove the screws holding the
control panel in place. Lift off the control panel.
4) Unlatch the Spider Stopper™ Guards and remove
them.
5) Remove the manifold bracket and unscrew the two
wing nuts(1) that hold the manifold to the cooking
box. Pull the manifold and valve assembly out of
the burners and carefully set it down.
6) Slide the burner assembly out from under the
guide screw and washer(1) in the corners of the
cooking box.
7) Lift and twist the burner assembly slightly, to
separate the crossover tube(1) from the burners.
Remove the burners from the cooking box.
8) To reinstall the burners, reverse 3) through 7).
m CAUTION: The burner openings(1) must be
positioned properly over the valve orifices(2).
Check proper assembly before fastening manifold in
place.
