Getting Started
Installing the LPG Cylinder
Cabinet Requirements
The LPG cylinder must fit inside the barbecue cabinet.
The maximum size requirements for cylinders
installed inside the cabinet are:
Cylinder Capacity: 13 kg maximum
Cylinder Height: 587 mm maximum
Cylinder Width: 289 mm maximum
(rectangular footprint) or
318 mm maximum
(round footprint)
The base of the cylinder must fit within the tank holder
and rest flat on the bottom.

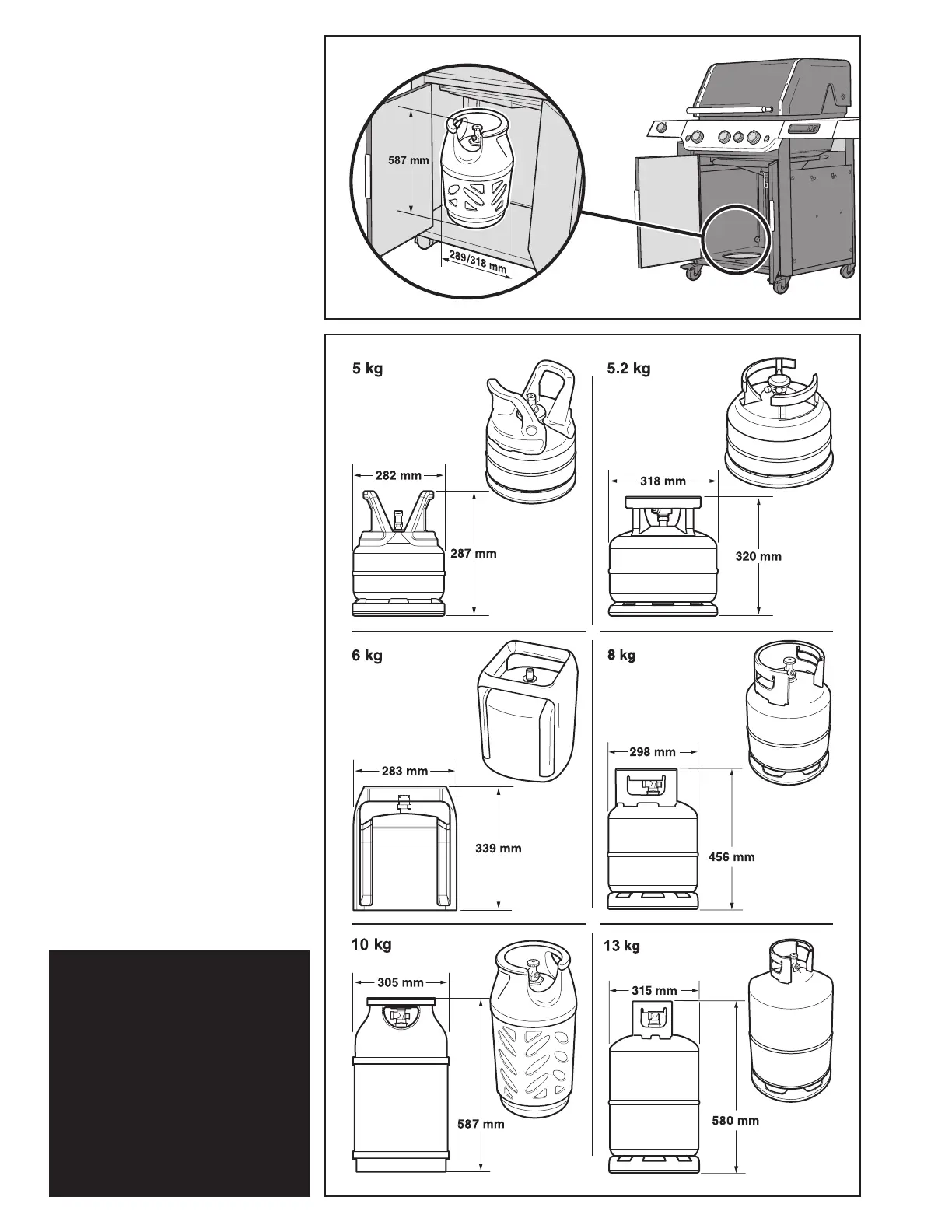

Several possible cylinder models approved for
installation inside the cabinet are illustrated, with
dimensions included.
m WARNING: Do not use an LPG cylinder if it does
not meet the cylinder size requirements for
placement inside the cabinet.
