13

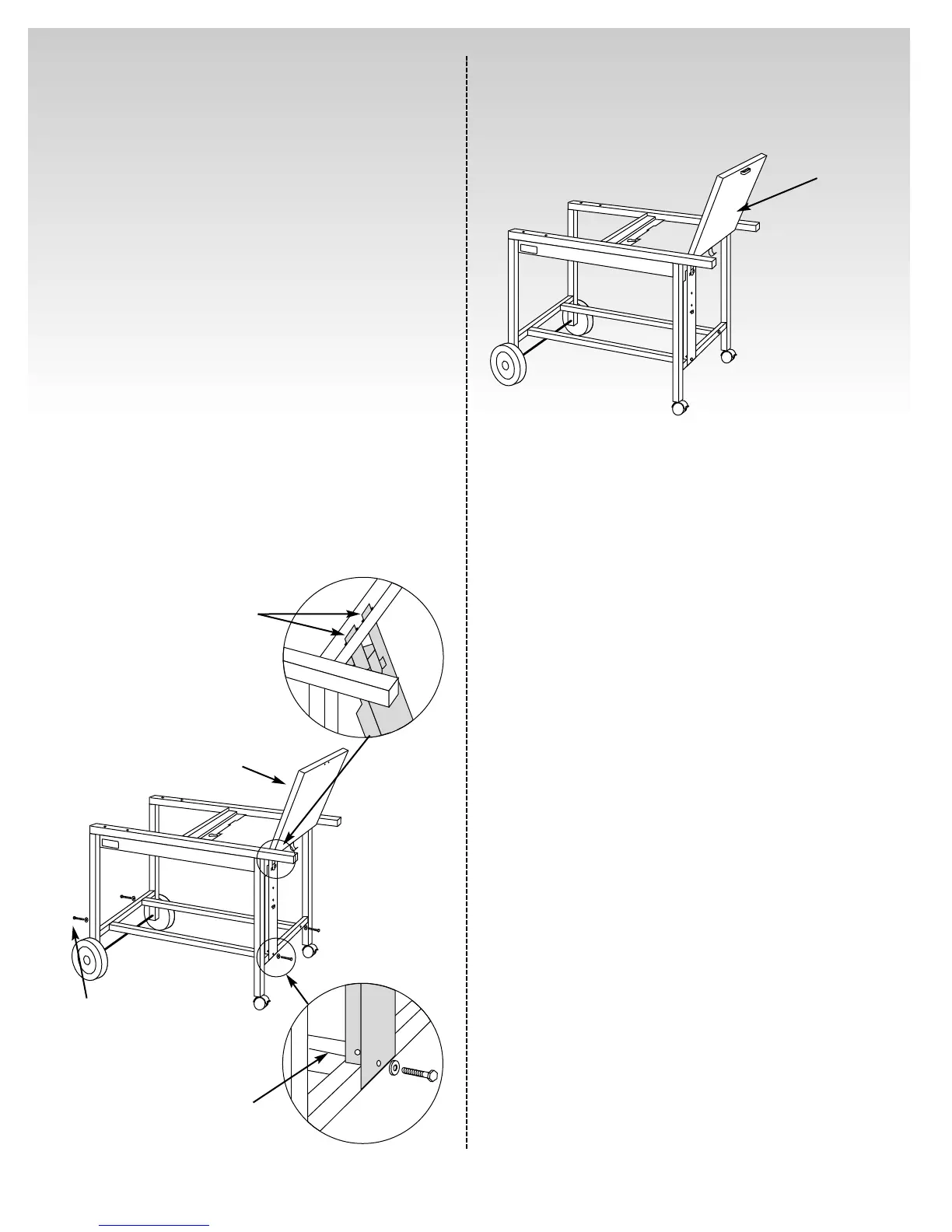

Figure 5
Step 5
Complete frame assembly
You will need: two bottom connectors, tank holder
assembly, four 1 3/4 inch bolts, four nylon washers and a
7/16 inch open-end or an adjustable wrench.
Turn over partial frame assembly and remove twist tie
from CharBin lid.
Hold one bottom connector between wheel and caster
frames, below front panel. Place washer on bolt, insert
through wheel frame and screw into bottom connector.
Figure 5.
Lift open CharBin lid. Insert tank holder assembly tabs
into the slots in the frame brace. Figure 5 (a). Slide up
until the notch at the bottom of the tank
holder assembly fits over the cross brace of the
caster frame. Figure 5 (b).
Place washer on bolt, insert through tank holder
assembly and frame, and screw into bottom
connector. Do not fully tighten bolts until both
bottom connectors are in place.
Hold the other bottom connector between wheel
and caster frames. Add washers to bolts. Insert bolts
through frame and screw into bottom connector.
Figure 5. Tighten all four bolts.
(a)
Slots in frame brace
CharBin lid
Install this
bolt first
Bottom connector
(b)
Figure 6
Step 6
Uncover CharBin lid
Remove protective plastic covering from CharBin lid.
Figure 6.
CharBin lid
