Figure 7
Step 7
Install bowl assembly
You will need: bowl assembly, four 1 3/4 inch bolts, eight
nylon washers, four aluminum washers, four acorn nuts,
7/16 inch open-end or adjustable wrench and pliers.

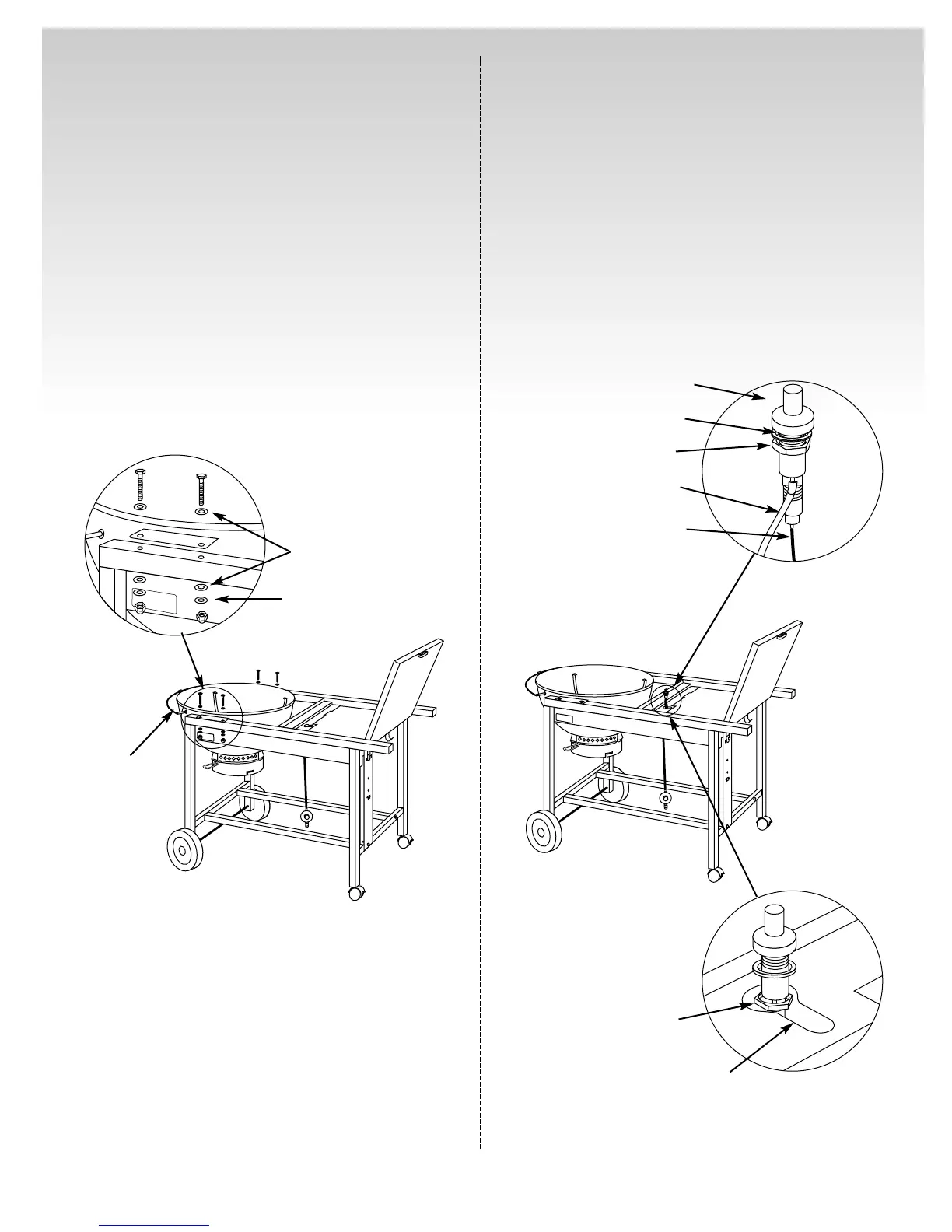

Set bowl assembly in open end of frame with lid
holder to the outside, and align mounting brackets over
holes in frame. Figure 7.
Slip a nylon washer on a bolt and insert bolt through
bowl mounting bracket and frame. Place a nylon washer
then an aluminum washer and acorn nut on end of bolt.
Figure 7.
Repeat for the other three bolts. Do not tighten until all
four bolts are correctly in place.
îCAUTION: Do not overtighten the bolts. Over
tightening can fracture the porcelain.
Lid holder
Nylon washers
Aluminum washer
Figure 8
Step 8
Install igniter
Note - The igniter wires have been attached to the
igniter for factory testing of the ignition system. There is
no need to disconnect for installation. Figure 8 (a).
The igniter assembly is taped to the burner assembly.
Remove the tape and insert top part of igniter through
the large part of the keyhole.
Loosen the igniter lock nut and slide igniter to the
narrow end of the keyhole with the igniter gasket above
the frame brace. Tighten the igniter lock nut.
Figure 8 (b).
Note - If the igniter works loose in the frame, carefully
tighten the igniter lock nut with an adjustable wrench
or pliers.
(a)
(b)
Igniter lock nut
Igniter
Igniter gasket
Igniter lock nut
Key hole in
frame brace
White igniter wire
Black igniter wire
