mAINTENANcE
REPLACING MAIN BURNERS
A) Your Summit
®
gas grill must be off and cool.
B) Turn gas off at source.
C) Disconnect gas supply.
D) Remove cooking grates.
E) Remove Flavorizer
®
bars.
F) Remove smoker box (if included in your model).

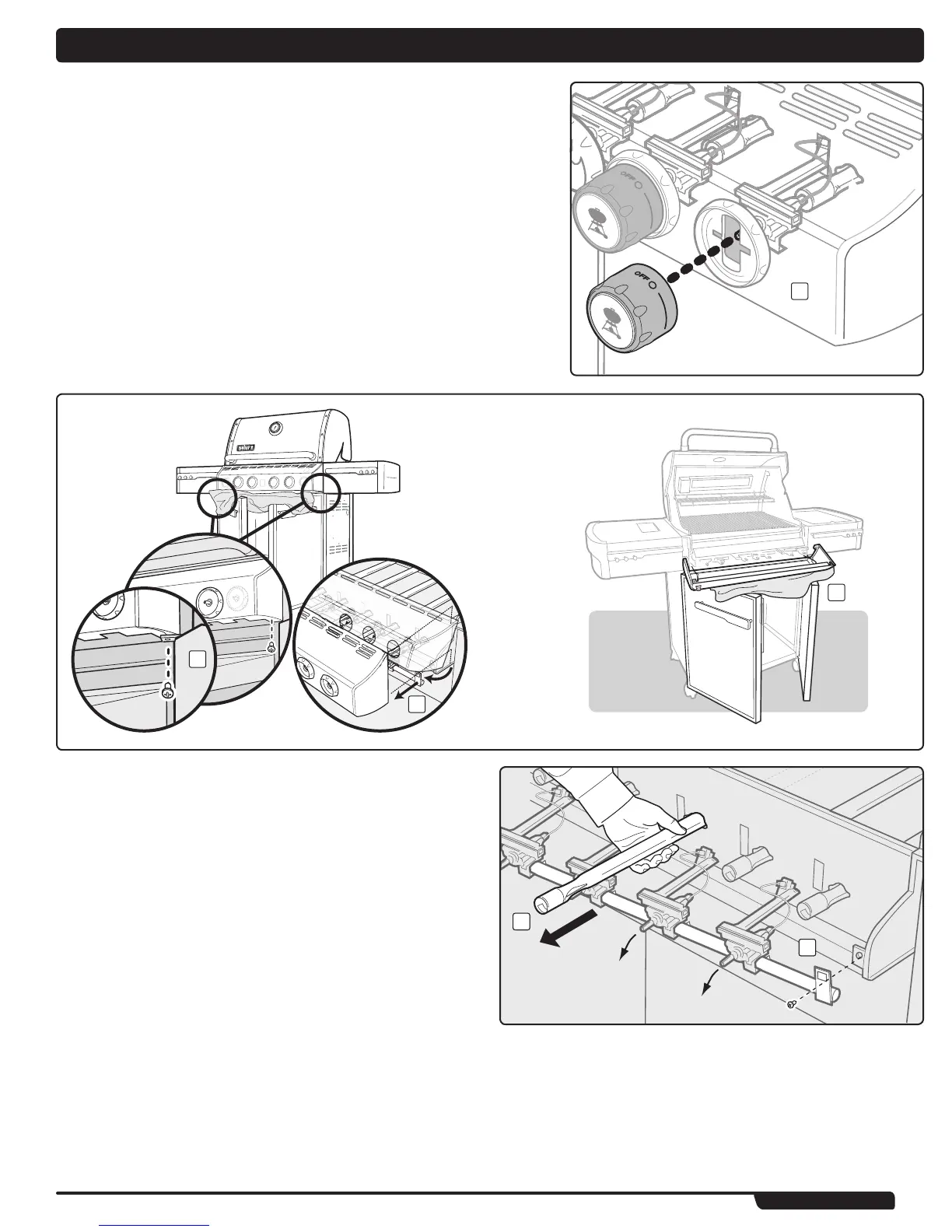

Remove Control Panel
Parts required: Phillips screwdriver and a towel.
A) Remove the burner control knobs (1).
B) Open both doors and place a towel on top of the doors.
This will protect the control panel and tops of the doors from getting scratched on
the next step.
C) Remove the screws from the underside of the control panel with a Phillips
screwdriver (2).
D) Tilt the conrol panel forward and lift up and away from the grill (3) (For Summit
®
models with LED features: Be careful not to break or disconnect the wires for the
control panel LED’s).
E) Place the control panel on the towel covering the door assemblies (4).
F) Remove the two screws that secure the manifold to the cookbox. Pull manifold
assembly out from the manifold frame (5).
G) Pull the selected burner(s) tube(s) from manifold frame and replace with a new
burner tube (6).
The grill illustrated may
have slight differences
than the model purchased.
