WWW.WEBER.COM
®
3

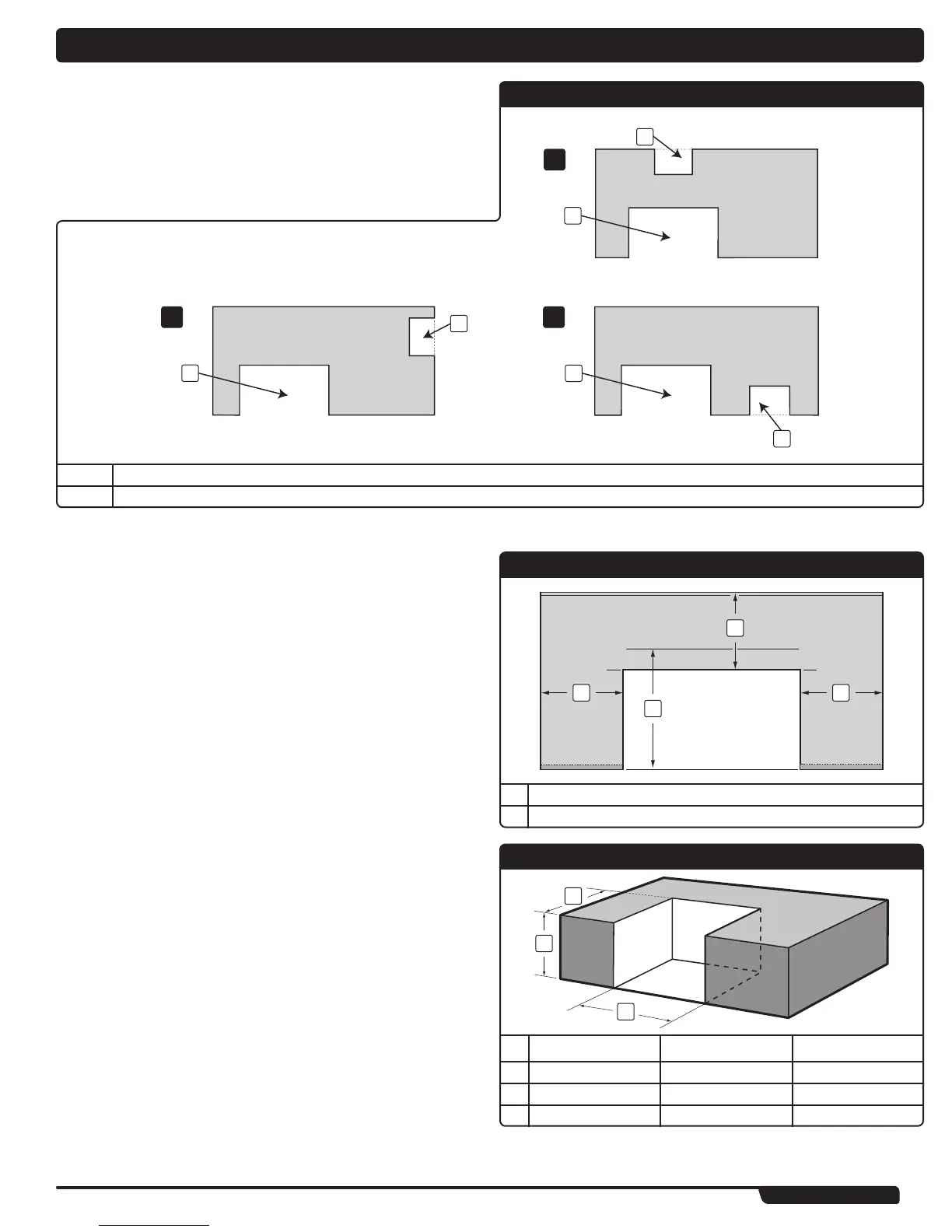

BUILT-IN CUTOUT DIMENSIONS
“ISLAND” STRUCTURE CONFIGURATION OPTIONS
There are several configuration options for the grill and gas supply access of your Island
structure.
The 3 common options (A, B, C) are illustrated in the “ ‘Island’ Structure Configuration
Options” table.
X
BUILT-IN STRUCTURE CUTOUT DIMENSIONS
All dimensions are to finished surfaces.
! WARNING: All countertop finished surfaces must be
constructed of a noncombustible material.
X
BUILT-IN CUTOUT GENERAL DIMENSIONS
1
2
3
460 660 TOLERANCES
1 34" (864 mm) 42" (1067 mm) ±1/4" (6 mm)
2 36" (914 mm) 36" (914 mm) max
3 24 5/16" (618 mm) 24 5/16" (618 mm) ±1/4" (6 mm)
CLEARANCES
1
2
1 1
1 24" (610 mm) any surface
2 27" (686 mm) minimum for lid clearance
LOCATING YOUR GRILL
When determining a suitable location for your Summit
®
gas grill installation, give
attention to concerns such as exposure to wind, proximity to traffic paths, and keeping
any gas supply lines as short as possible. Never locate the Summit
®
gas grill in a
garage, breezeway, shed, under an unprotected overhang, or other enclosed area.
Locate the grill and structure so there is enough room to safely evacuate the area in
case of a fire.
CLEARANCE FROM SURFACES OR STRUCTURES
! WARNING: Clearance from any surface or structure is24"
(610 mm) from the back and sides of the grill. Refer to
“TYPICAL GAS SUPPLY INSTALLATION” before starting
installation.
! WARNING: The structure, “island”, countertops, and
adjacent work areas for the built-in grill installation must be
built from noncombustible materials only.
NOTE: If you have questions on what materials are considered noncombustible, contact
your local building materials supplier or fire department.
X
“ISLAND” STRUCTURE CONFIGURATION OPTION
1
2
2
2
1
1
CB
A
1 Summit
®
4-burner/6-burner grill
2 Gas supply
