MAINTENANCE

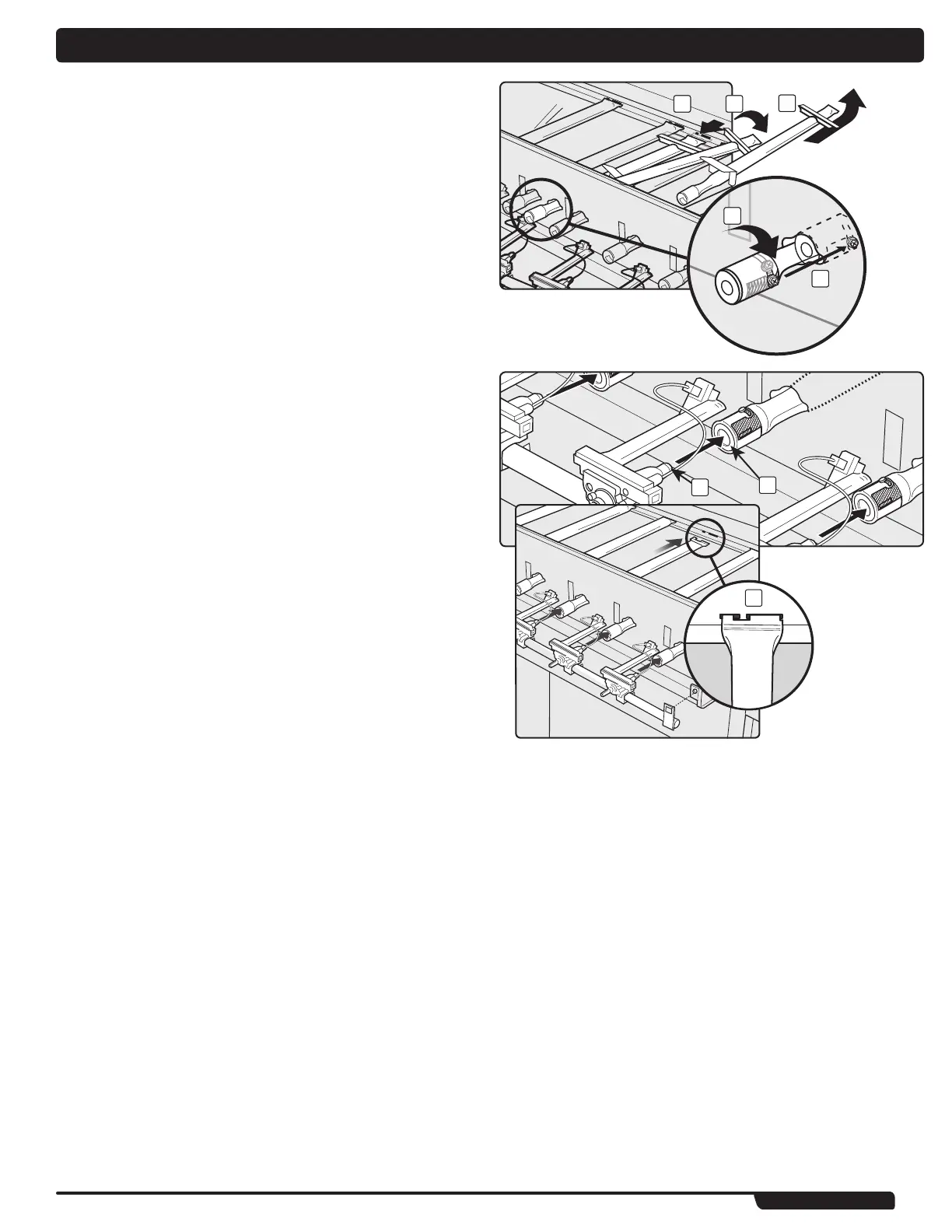

Remove SEAR STATION Burner
To remove the SEAR STATION burner, pull the burner tube toward you. This removes it
from the burner tube notch (10). Then rotate the tube clockwise (11), so that the screw at
the end of the tube (12) fits through the notch in the heat shield opening (13). When the
burner tube is free, remove it from the cookbox (14).
Reinstall Manifold
A) To reinstall the manifold assembly, reverse steps for “Remove Burner Tubes” as
previously described.
m CAUTION: The burner openings (15) must be positioned properly
over the valve orifices (16). Make sure the opposite end of the
burner tubes (17) properly align into the slots on the backside of
the cookbox. Check proper assembly before fastening manifold
in place.
m WARNING: You should check for gas leaks every time you
disconnect and reconnect a gas fitting. Refer to CHECKING FOR
GAS LEAKS.
B) Replace cookbox components (not pictured).
Reinstall Control Panel
A) To reinstall the control panel assembly, reverse steps for “Remove Control Panel” as
previously described.
B) Verify proper wire connections. Refer to “LIGHT FEATURES”.
m WARNING: Make sure that all parts are assembled and hardware
is fully tightened before operating the grill. Your actions, if
you fail to follow this product warning, may cause a fire, an
explosion, or structural failure resulting in serious personal
injury or death as well as damage to property.
◆
4
3
1 2
5
10 11
12
13
14
3
16
15
17
