Safety Precautions ...............................................................................................................................
A. Introduction ..........................................................................................................................................
Burner Model Number..............................................................................................................
SC Specications.....................................................................................................................
SC Model Conguration...........................................................................................................
Specication Data....................................................................................................................
Dimensional Data....................................................................................................................
B. Component ldentication......................................................................................................................
C. Installation.............................................................................................................................................
D. Special lnstructions For Canadian lnstallations....................................................................................
E. Burner Mounting Criteria ......................................................................................................................
F. Fuel Systems........................................................................................................................................
G. Initial Settings.......................................................................................................................................
H. Ignition Systems...................................................................................................................................
I. Start-up & Operating Adjustments........................................................................................................
J. Troubleshooting...................................................................................................................................
K. General Maintenance And Care...........................................................................................................
L. Care of Burner During Shutdown.........................................................................................................
M. Replacement Parts...............................................................................................................................
N. Warranty Validation & Field Start-up Report.........................................................................................
2
3
3
4
5
6
7
8
11
12
13
14
18
19
19
26
28
30
30
30
TABLE OF CONTENTS
A. INTRODUCTION
Page 3 IntroductionSC Manual
This manual covers the Model SC burners offered by
Webster Combustion Technology LLC. These burners can
be used in a wide variety of Cast Iron, Firebox, Firetube,
Flextube and other applications. They can re gas, oil and
combination gas and oil, with several different operating
systems.
READ AND SAVE THESE INSTRUCTIONS FOR
REFERENCE.
WARNING
DO NOT ATTEMPT TO START, ADJUST OR MAIN-
TAIN THIS BURNER WITHOUT PROPER TRAINING
OR EXPERIENCE. FAILURE TO USE KNOWLEDGE-
ABLE TECHNICIANS CAN RESULT IN EQUIPMENT
DAMAGE, PERSONAL INJURY OR DEATH.
The startup and maintenance of the SC burner requires the
skills of an experienced and properly trained burner techni-
cian. Inexperienced individuals should not attempt to start
or adjust this burner.
Every attempt has been made to accurately reect the
burner construction, however, product upgrades and spe-
cial order requirements may result in differences between
the content of this manual and the actual equipment.
These special components will be described in the infor-
mation provided with the burner and should be used as the
controlling document.
NOTE: This manual must be readily available to all op-
erators and maintained in legible condition.
1. Nameplate Information
Each burner has a nameplate with important job details,
similar to the nameplates shown in Figure A-1.

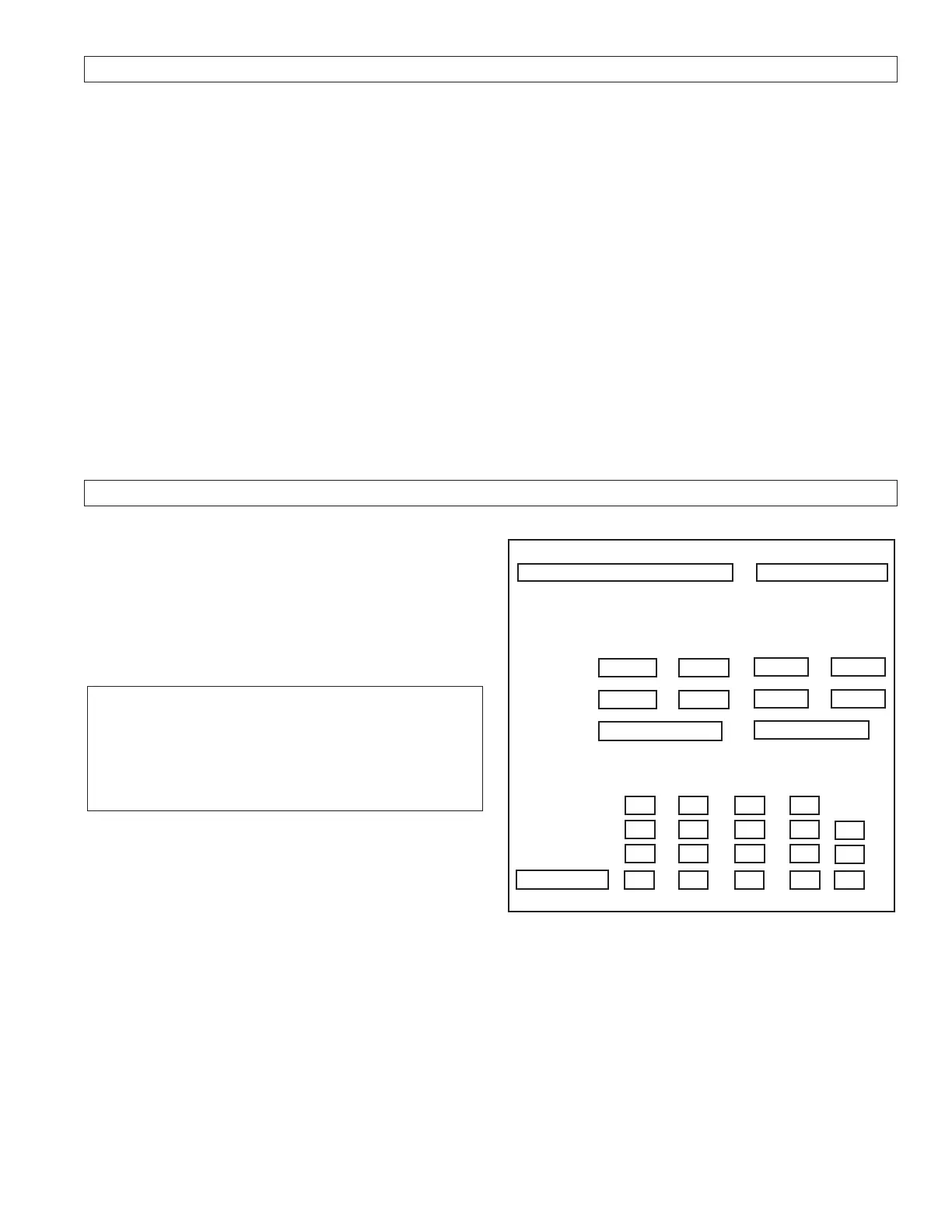

Figure A-1 Nameplate
MODEL NUMBER
SC12C-15-RM7840L-UL-IRI
SERIAL NUMBER
U81375A-018-06
OIL INPUT RATINGGAS INPUT RATING
MBTU/HR IN.WC
GPH PSI
2940
2.8
21 300
MAXIMUM
1680
1.0
12 100
MINIMUM
NATURAL GAS
#2 FUEL OIL
FUEL
VOLTS AMPS HERTZ PHASE
HP
115
CONTROL CIRCUIT
5.0
60 1
208
BURNER MOTOR
5.9
60 3
1.5
208
OIL PUMP MOTOR
4.3
60 3
1/2
The serial number represents the unique number for that
burner and is a critical number that will be needed for
any communications with Webster Combustion.
The input rates dene the maximum and minimum inputs
for that burner, given in MBH for gas and GPH for oil.
Air atomized burners show both the oil pressure and
air pressure. Pressure atomized burners only list the oil
pressure. For gas ring, the gas manifold pressure is
given in “in wc” which is inches of water column.
The electrical ratings of the burner are given, with the volt-
age, current load, frequency and phase (this will either
be single or 3-phase). For motors, the motor HP is listed.
To Next Page
