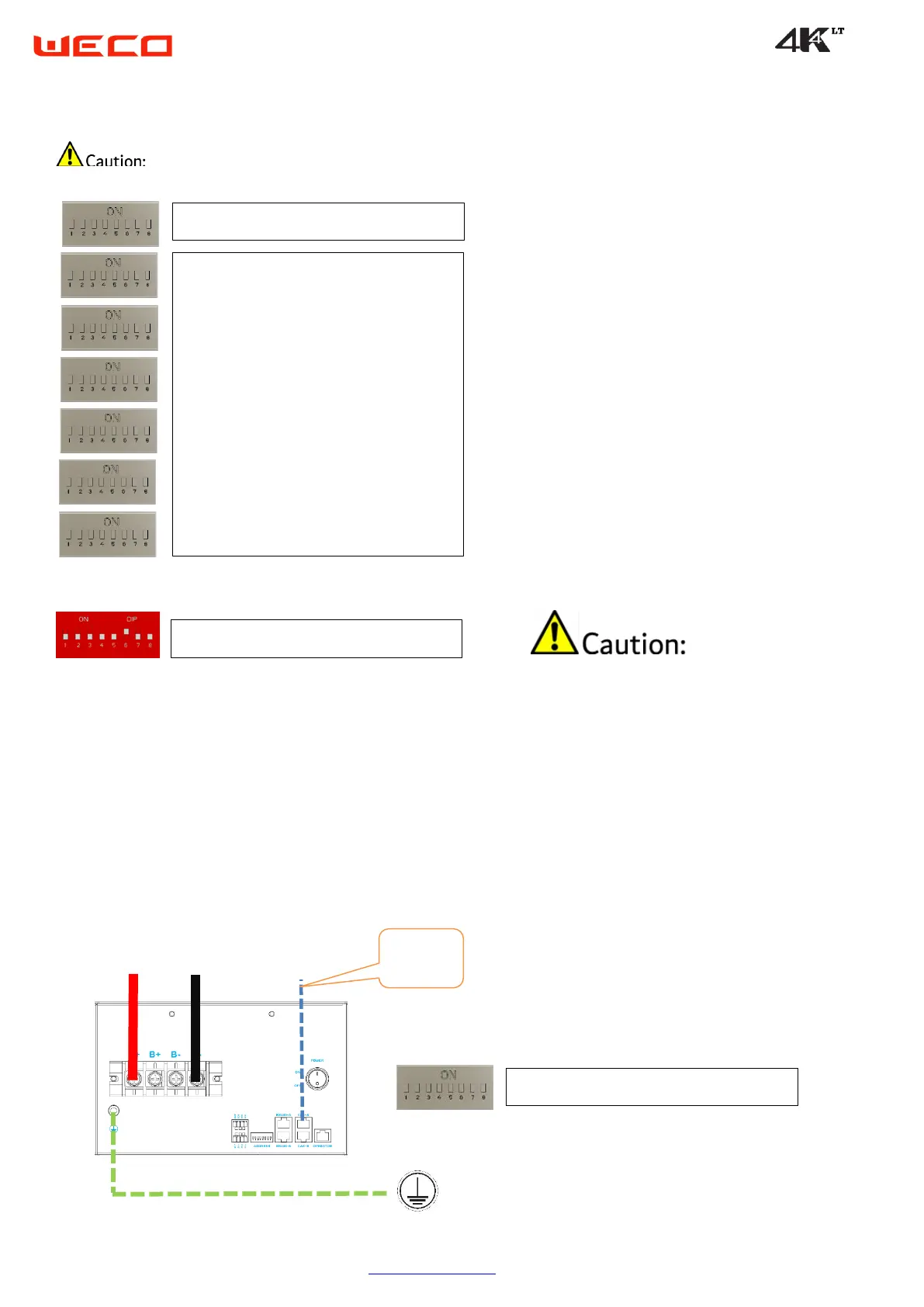

5.6 Parallel battery wiring convention
Parallel battery installation must follow the wiring conventions shown in the illustrations in this section.
ATTENTION IMPORTANT NOTE
• DIP switches must be set with the battery off.
• The RS485 cables must be installed in sequence starting from the RS485 B Master Port battery and continuing to the RS485A port of
the first Slave module.
• RS485 communication cables must be installed with batteries off.
• In case of incorrect installation of RS485 cables and / or incorrect setting of DIP switches it will be necessary to turn off all batteries.
• manually and correct the configuration/setting and repeat the power sequence (see following pages).
SINGLE BATTERY WIRING
To Next Page
