Weco 4K4LT - Parallel Battery Wiring Configurations; Master + Slave 1; Master + Slaves from 1 to n (MAX 8 MODULE)

30
WeCo Srl Italy www.wecobatteries.com 4K4LT V1.00 24/01/2023

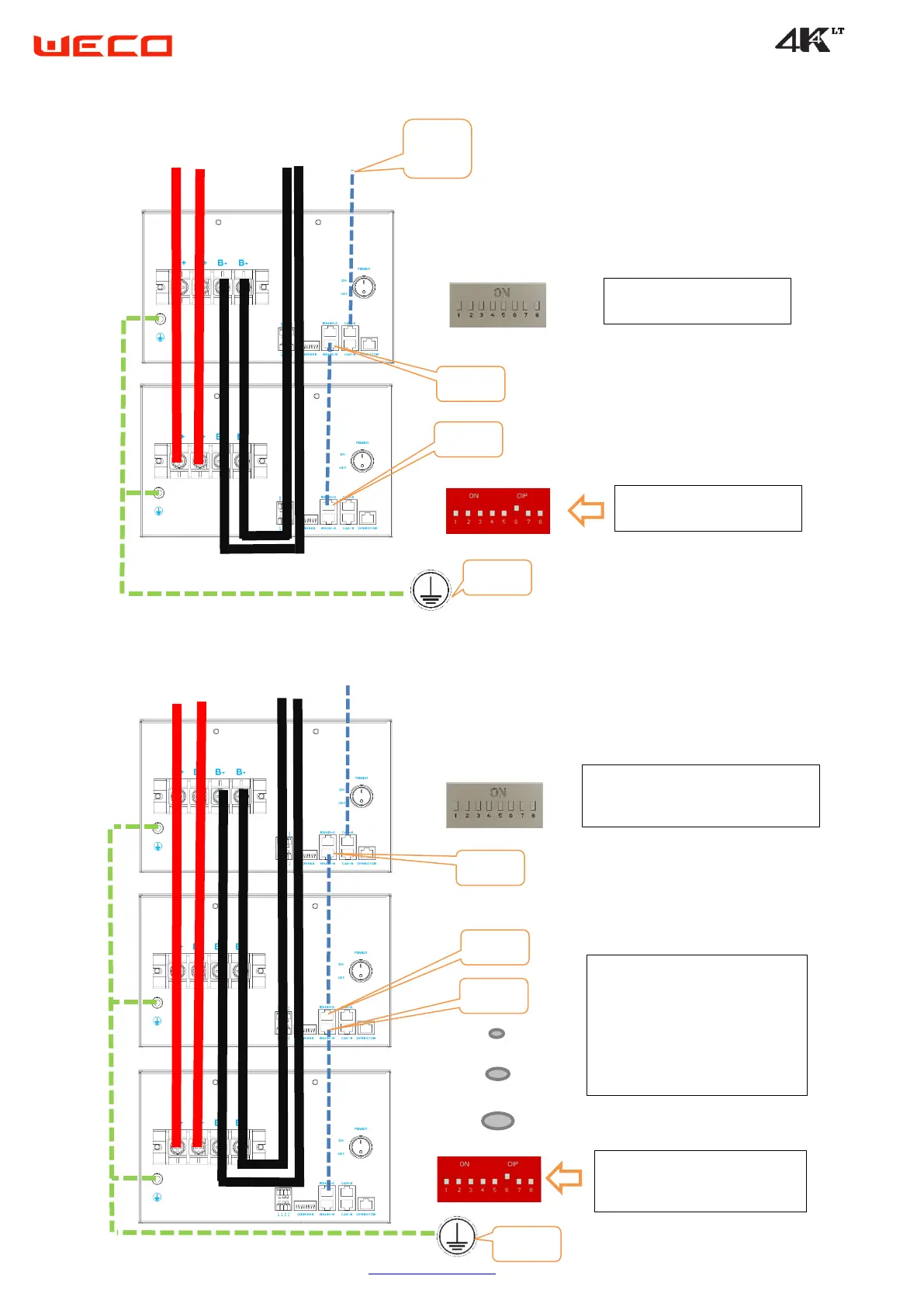

5.6.1 Master + Slave 1
MASTER
SLAVE 1
5.6.2 Master + Slaves from 1 a n * (MAX 8 MODULE)
MASTER
SLAVES
From 1 to n
LAST
RS485 A
RS485 B
CAN to
Inverter
GND
ATTENTION, DIP 6 ON
RS485 B
SLAVE 7
ATTENTION, DIP 6 ON
SLAVE BATTERY MODULES
TO CELEBRATE 1 and SLAVE 6
DIP 00000000 (OFF)
MASTER
ATTENTION, DIP ALL OFF
GND
ATTENTION, DIP OFF
RS485 B
RS485 B
