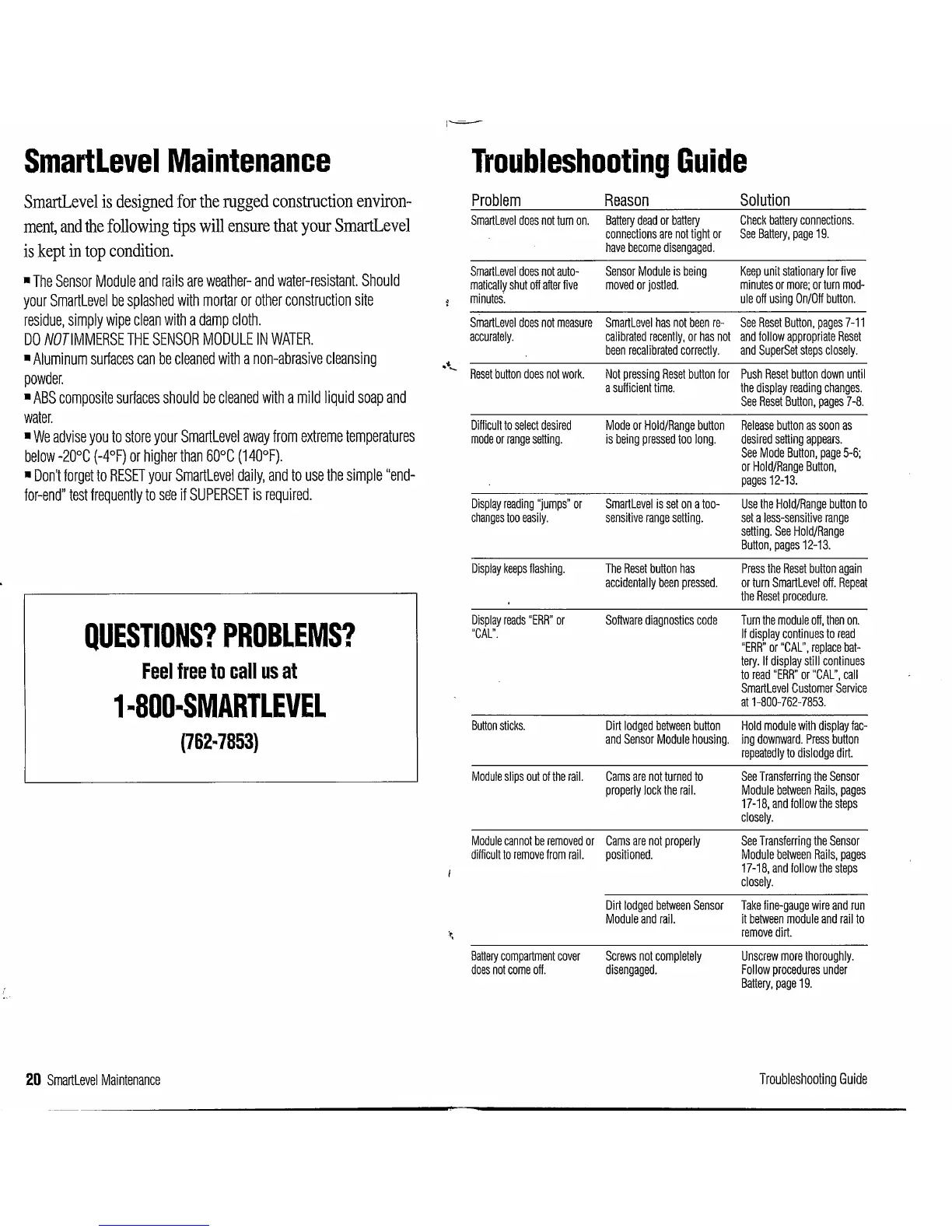

SmartLevel Maintenance
SmartLevel is designed for the rugged construction environ-
ment, and the following tips will ensure that your SmartLevel
is kept in top condition.
• The Sensor Module and rails are weather- and water-resistant. Should
your Smartlevel be splashed with mortar or other construction site
residue, simply wipe clean with a damp cloth.
DO NOT IMMERSE THE SENSOR MODULE IN WATER.
• Aluminum surfaces can be cleaned with a non-abrasive cleansing
powder.
• ABS composite surfaces should be cleaned with a mild liquid soap and
water.
• We advise you to store your Smartlevel away from extreme temperatures
below -20°C (-4°F) or higher than 60°C (140°F).
• Don't forget to RESET your Smartlevel daily, and to use the simple "end-
for-end" test frequently to see if SUPERSET is required.
QUESTIONS? PROBLEMS?
Feel free to call us at
1·800-SMARTLEVEL
(762 .. 7853)
20 Smartlevel Maintenance
~~-~
Troubleshooting Guide
Problem Reason
Solution
SmartLevel does not turn on. Battery dead or battery
Check battery connections.
connections are not tight or
See Battery, page 19.
have become disengaged.
SmartLevel.does not auto- Sensor Module is being Keep unit stationary for five
matically shut off after five moved or jostled.
minutes or more; or turn mod-
minutes. ule off using On/Off button.
SmartLevel does not measure SmartLevel has not been re- See Reset Button, pages 7-11
accurately. calibrated recently, or has not and follow appropriate Reset
been recalibrated correctly. and SuperSet steps closely.
.........
Reset button does not work. Not pressing Reset button for Push Reset button down until
a sufficient time.
the display reading changes.
See Reset Button, pages 7-8.
Difficult to select desired Mode or Hold/Range button Release button as soon as
mode or range setting. is being pressed too long. desired setting appears.
See Mode Button, page 5-6;
or Hold/Range Button,
pages 12-13.
Display reading "jumps" or
SmartLevel is set on a too- Use the Hold/Range button to
changes too easily. sensitive range setting. set a less-sensitive range
setting. See Hold/Range
Button, pages 12-13.
Display keeps flashing. The Reset button has Press the Reset button again
accidentally been pressed. or turn SmartLevel off. Repeat
the Reset procedure.
Display reads "ERR" or
Software diagnostics code Turn the module off, then on.
"CAL".
If display continues to read
"ERR" or "CAL", replace bat-
tery. If display still continues
to read "ERR" or "CAL", call
SmartLevel Customer Service
at 1-800-762-7853.
Button sticks. Dirt lodged between button Hold module with display lac-
and Sensor Module housing. ing downward. Press button
repeatedly to dislodge dirt.
Module slips out of the rail. Cams are not turned to
See Transferring the Sensor
properly lock the rail. Module between Rails, pages
17-18, and follow the steps
closely.
Module cannot be removed or Cams are not properly See Transferring the Sensor
difficult to remove from rail. positioned. Module between Rails, pages
17-18, and follow the steps
closely.
Dirt lodged between Sensor Take fine-gauge wire and run
Module and rail. it between module and rail to
1-t
remove dirt.
Battery compartment cover Screws not completely Unscrew more thoroughly.
does not come off. disengaged. Follow procedures under
Battery, page 19.
