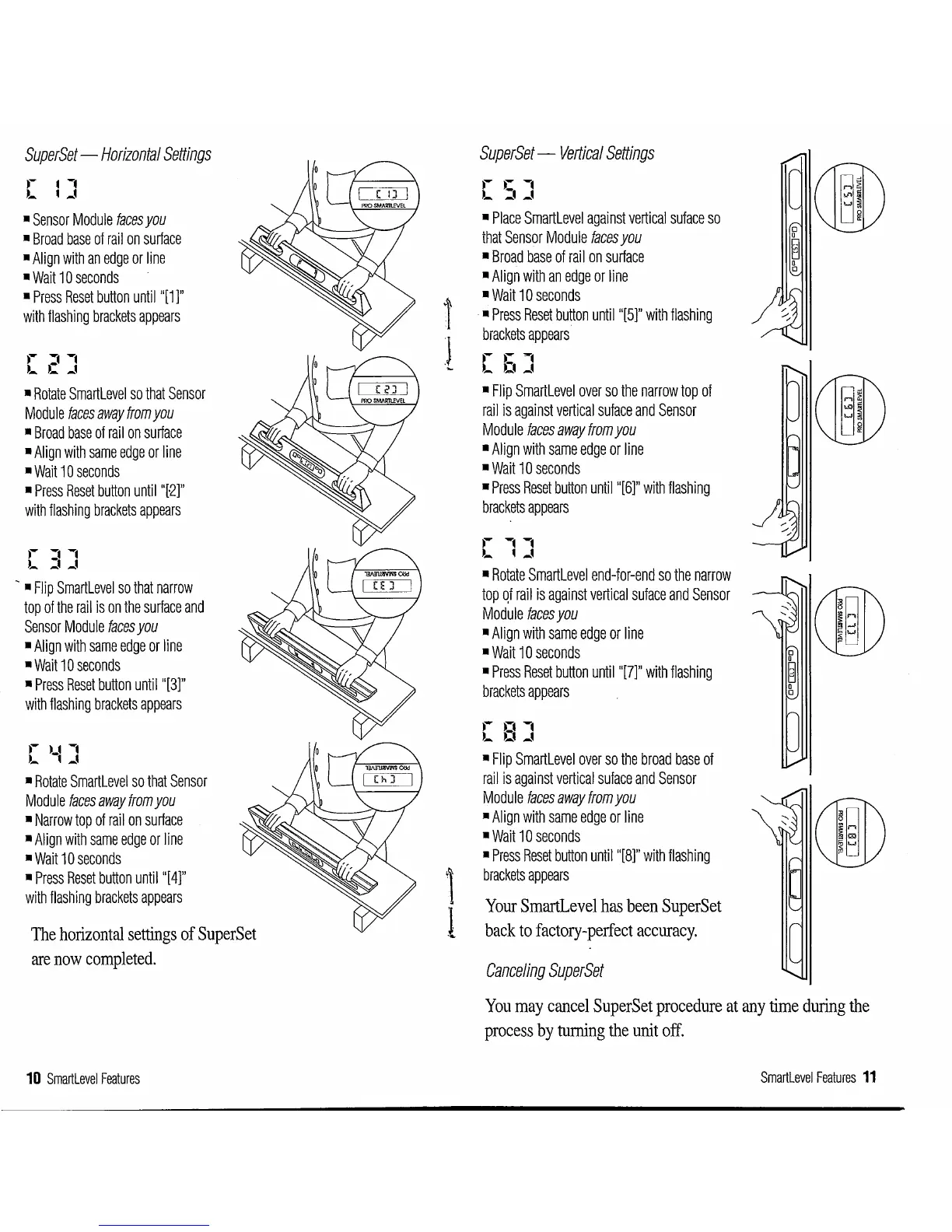

SuperSet- Horizontal Settings
,~ 1 ~-
L. 1 -·
• Sensor Module faces you
• Broad base of rail on surface
• Align with an edge or line
• Wait 1 0 seconds
• Press Reset button until"[1 ]"
with flashing brackets appears
, .... ""1 ""1
L.C~
• Rotate Smartlevel so that Sensor
Module faces away from you
• Broad base of rail on surface
• Align with same edge or line
• Wait 1 0 seconds
• Press Reset button until"[-2]"
with flashing brackets appears
, ......... ""1
L. =· -·
- • Flip Smartlevel so that narrow
top of the rail is on the surface and
Sensor Module faces you
• Align with same edge or line
• Wait 1 0 seconds
• Press Reset button until"[3]"
with flashing brackets appears
..... ,. .....
,_ -. ~
• Rotate Smartlevel so that Sensor
Module faces away from you
• Narrow top of rail on surface
• Align with same edge or line
• Wait 1 0 seconds
• Press Reset button until"[4]"
with flashing brackets appears
The horizontal settings of SuperSet
are now completed.
10 Smartlevel Features
1
1
~1
l
SuperSet- Vertical Settings
..... r'" ......
,_ ~ -•
• Place Smartlevel against vertical suface so
that Sensor Module faces you
• Broad base of rail on surface
• Align with an edge or line
• Wait 1 0 seconds
• Press Reset button until"[5]" with flashing
brackets appears
..... r'" ,....
L. 0 -•
• Flip Smartlevel over so the narrow top of
rail is against vertical suface and Sensor
Module faces away from you
• Align with same edge or line
• Wait 1 0 seconds
• Press Reset button until"[6]" with flashing
brackets appears
........... ""1
L. ......
• Rotate Smartlevel end-for-end so the narrow
top qf rail is against vertical sutace and Sensor
Module faces you
• Align with same edge or line
• Wait 1 0 seconds
• Press Reset button until"[?]" with flashing
brackets appears
, .... r1 ......
,_ 0 .....
• Flip Smartlevel over so the broad base of
rail is against vertical suface and Sensor
Module faces away from you
• Align with same edge or line
• Wait 1 0 seconds
• Press Reset button untii"[B]" with flashing
brackets appears
Your SmartLevel has been SuperSet
back to factory-perfect accuracy.
