Weichai America Corp.
Revision: October 2018 26
Torque Head Bolts and Nuts
NOTE: Cylinder head bolts are allowed to be reused and torqued only three (3)
times. Discard these bolts after the third torque because they lose their elasticity and
strength and should not be torqued for a fourth time. Remove cylinder head covers.

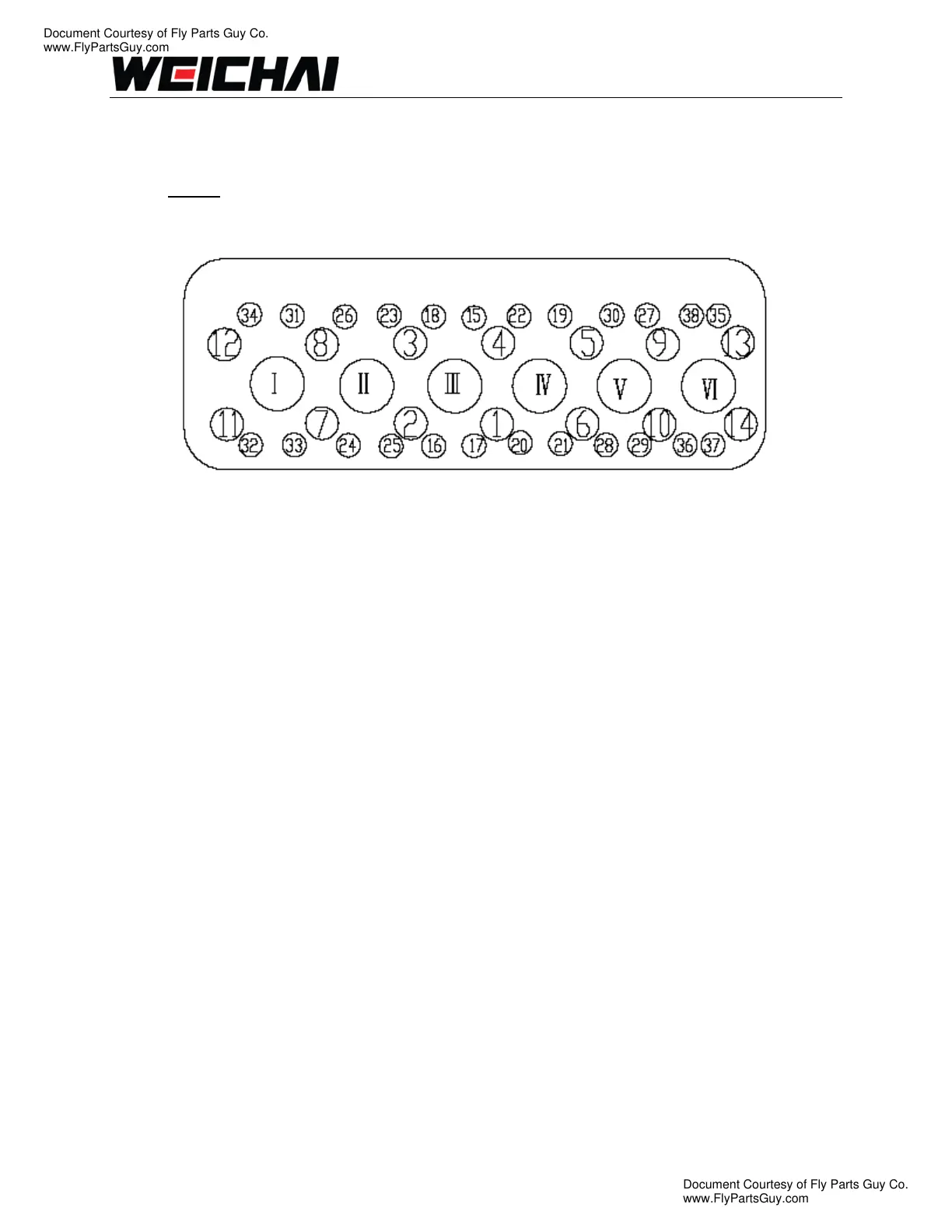

Illustration 14: Tighten order of cylinder head bolts and nuts
Tightening Process is as follows:
A. Align the cylinder head with the cylinder block. Apply a proper amount of clean lubricating
oil to the threads and pressure-bearing surfaces of shoulders of the main bolts of cylinder
head and the shouldered nuts. Install the main bolts to the cylinder head. Install the
clamping blocks and nuts to the auxiliary bolts of cylinder head.
B. Tighten the main bolts in the specified sequence to the torque of 60±6Nm.
C. Tighten the nuts of auxiliary bolts in the specified sequence to the torque of 25±3Nm.
D. Tighten the nuts of auxiliary bolts in the specified sequence by 120º±5º. Then make
marks on the nuts.
E. Tighten the main bolts in the specified sequence by 120º±5º. Then make marks on the
bolts.
F. Tighten the nuts of auxiliary bolts in the specified sequence by another 120º±5º
G. Tighten the main bolts in the specified sequence by another 120º±5º
H. The cylinder head bolts and nuts shall be tightened according to the order given by
Illustration 14, in which, those numbering 1-14 are nuts of auxiliary bolt, while those
numbering 15-38 are main bolts of cylinder head.
