Weider 145 - Page 7

7

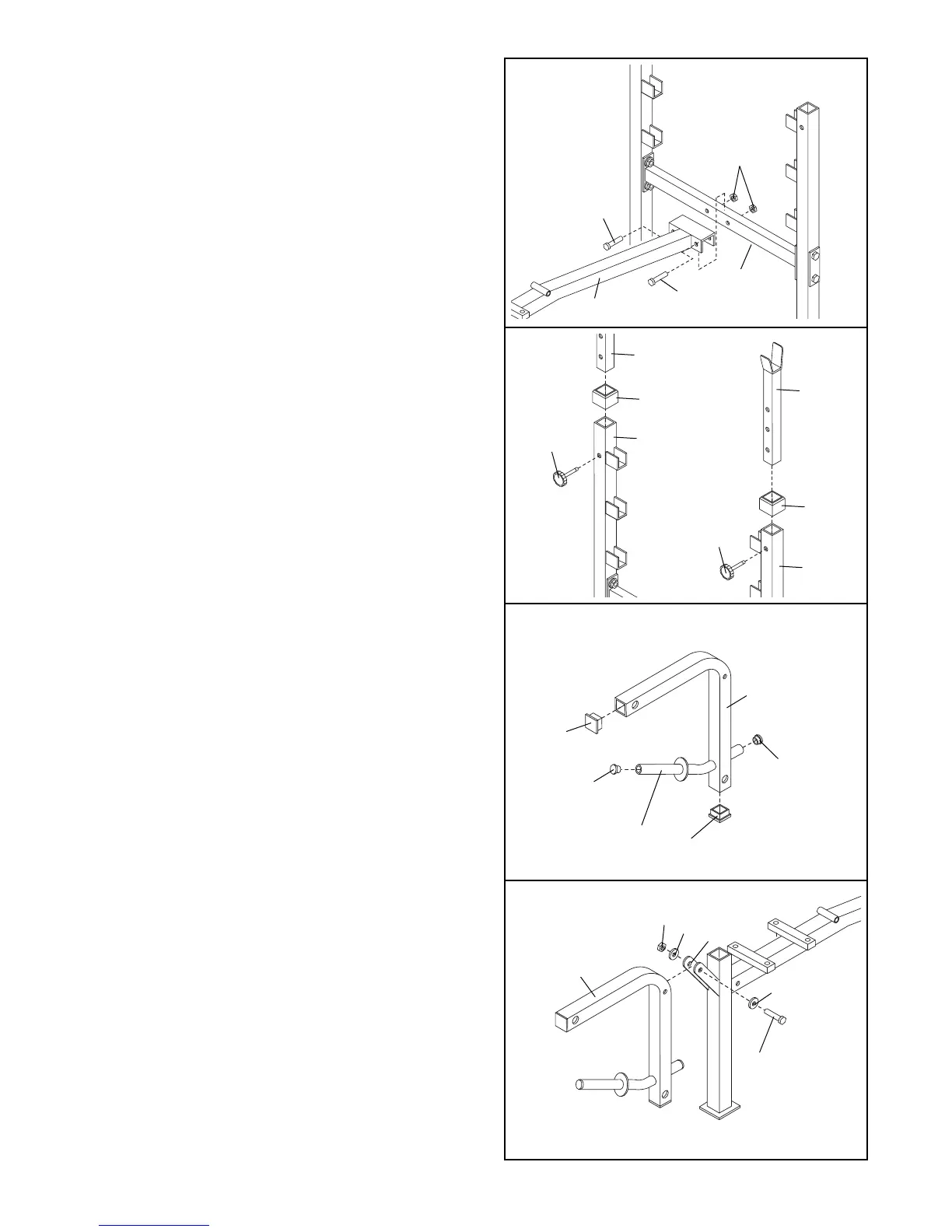

3. Attach the Frame (2) to the Crossbar (3) with two
M8 x 55mm Bolts (25) and two M8 Nylon Locknuts
(34).
4. Press a 50mm Square Bushing (31) onto each
Upright (1, 15) and tap them in place with a rubber
mallet.
Slide a Weight Rest (16) into Upright A (1). Align
one of the adjustment holes in the Weight Rest with
the adjustment hole in the Upright. Tighten the
Large Threaded Knob (20) into the adjustment hole
in the Upright.
Attach the other Weight Rest (16) to Upright B (15)
in the same manner.
5. Tap a 38mm Square Inner Cap (32) into each end
of the Leg Lever (4).
Tap a 25.4mm Round Inner Cap (21) into each end
of the weight tube.
6. Lubricate the M10 x 70mm Bolt (26). Attach the Leg
Lever (4) to the Front Leg (8) with the Bolt, two M10
Washers (29) and the M10 Nylon Locknut (30).
