6
Before beginning assembly, carefully read the
following information and instructions:
• Place all parts in a cleared area and remove the
packing materials; do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• For help identifying the small parts used in
assembly, use the PART IDENTIFICATION
CHART on the page 5.
• As you assemble the weight bench, be sure that
all parts are oriented as shown in the drawings.
THE FOLLOWING TOOLS (NOT INCLUDED) ARE
REQUIRED FOR ASSEMBLY:
• Two (2) adjustable wrenches
• One (1) rubber mallet
• One (1) standard screwdriver
• Lubricant, such as grease or petroleum jelly
plus soapy water.
Assembly will be more convenient if you have the
following tools: A socket set, a set of open-end or
closed-end wrenches or a set of ratchet wrenches.
2
1

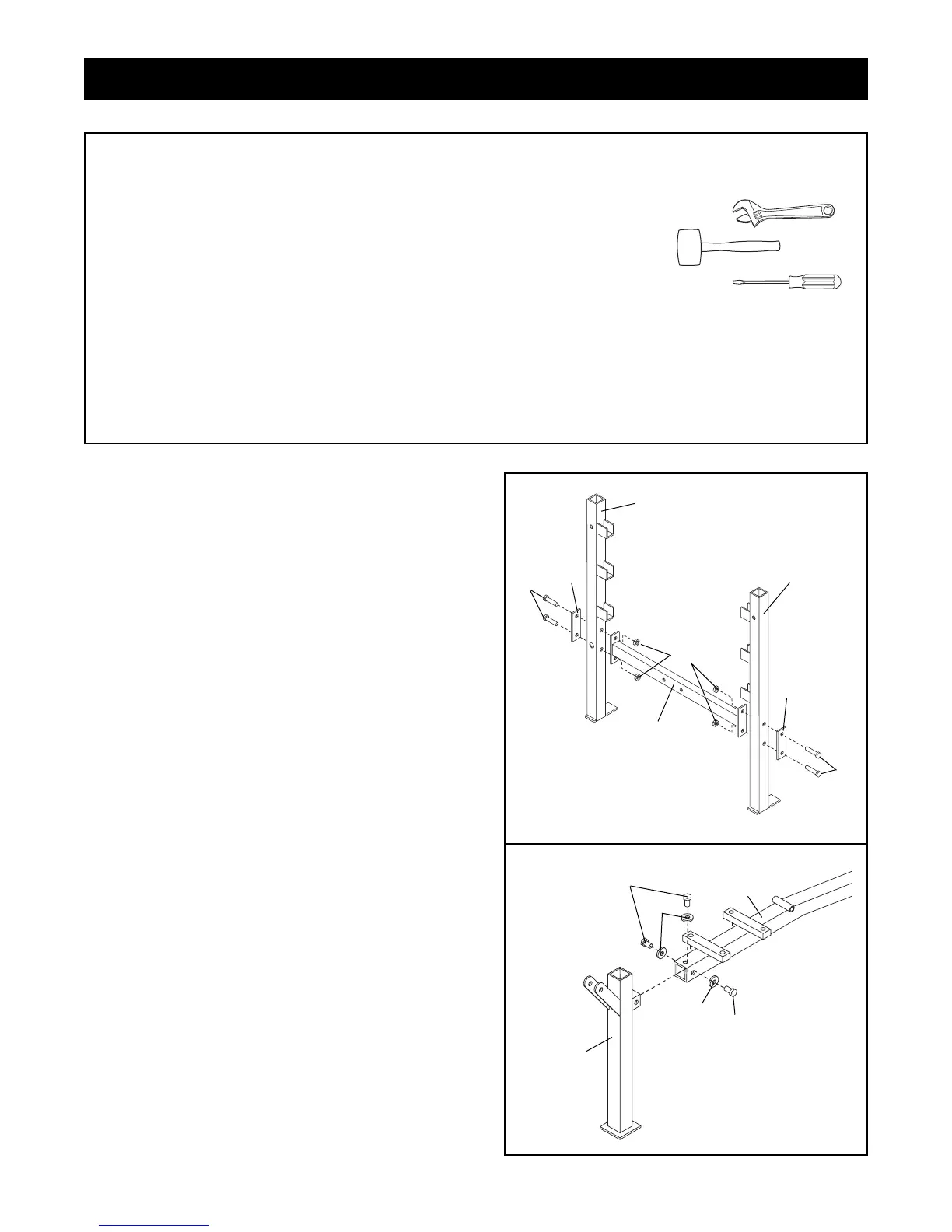

1. Before assembling this product, be sure that
you have read and understand the information
in the box above.
Attach the Crossbar (3) to Upright A (1) with two
M10 x 70mm Bolts (26), a Support Plate (14) and
two M10 Nylon Locknuts (30). The Upright must
be oriented as shown.
Attach the Crossbar (3) to Upright B (15) in the
same manner.
2. Attach the Front Leg (8) to the Frame (2) with three
M8 x 16mm Bolts (28) and three M8 Washers (17).
Assembly
26
14
14
26
3
15
30
8
28
28
17
2
17
1
To Next Page
