Weider 2990 I - Page 20

20

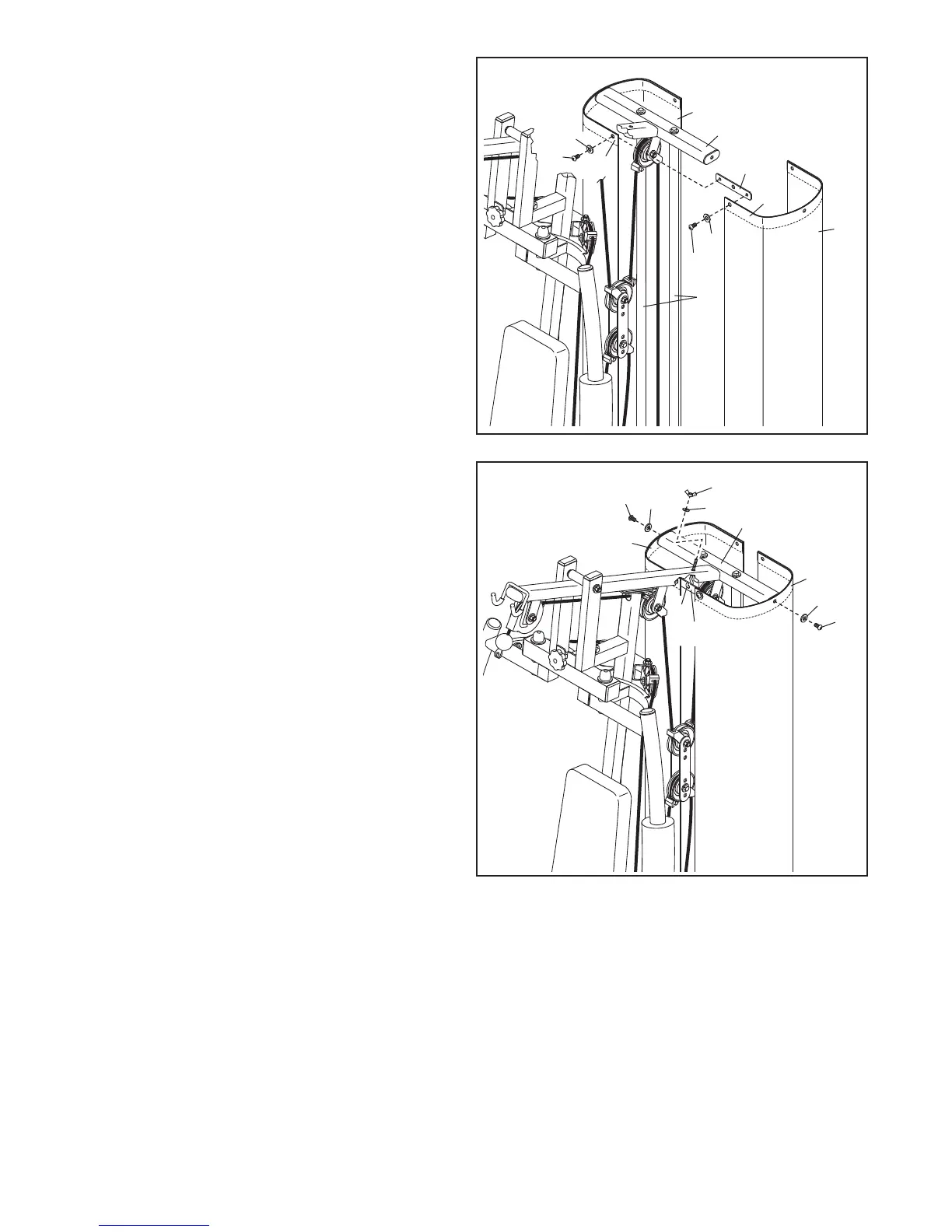

34. Have a second person hold the Shrouds (29)
and the upper Shroud Brackets (30) around the
rear of the Top Frame (8).
Attach the front of each upper Shroud Bracket
(
30) to the Shroud Plate (82) with an M8 x
20mm Screw (65) and an M8 Washer (74).
3
4
35. Insert the hook on the J-bolt (80) into the center
hole in the Shroud Plate (82).
Then, insert the J-bolt (80) upward through the
Top Frame (8). Tighten the Wingnut (81) and
the M6 Washer (79) onto the end of the J-bolt.
Attach each upper Shroud Bracket (30) to the
Top Frame (8) with an M8 x 20mm Screw (65)
and an M8 Washer (74).
35
82
65
65
74
74
3
0
29
29
30
8
8
4
30
30
82
80
79
81
65
65
74
74
