ASSEMBLY

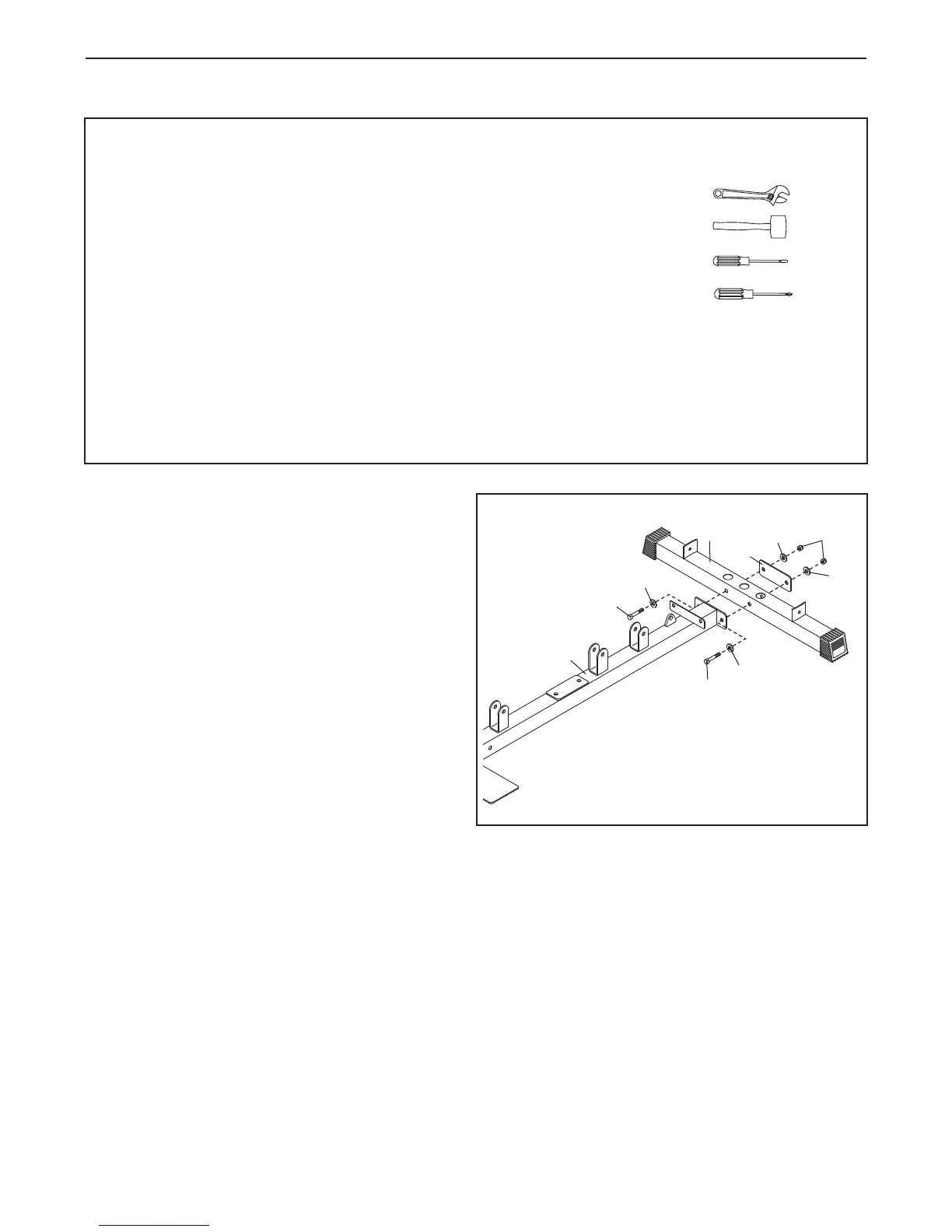

1. Orient the Long Base (1) and the Short Base
(6) as shown.
Attach the Long Base (1) and a Base Plate (83)
to the Short Base (6) with two M10 x 75mm
Bolts (66), four M10 Washers (73), and two
M10 Locknuts (68).
1
1
6
68
73
73
83
73
73
66
66
To make assembly easier, carefully read the
following information and instructions:
• Assembly requires two persons.
• Because of its weight and size, the weight system
should be assembled in the location where it will
be used. Make sure that there is enough clear-
ance to walk around the weight system as you
assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
• The following tools (not included) may be required
for assembly:
two adjustable wrenches
o
ne rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly may be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
