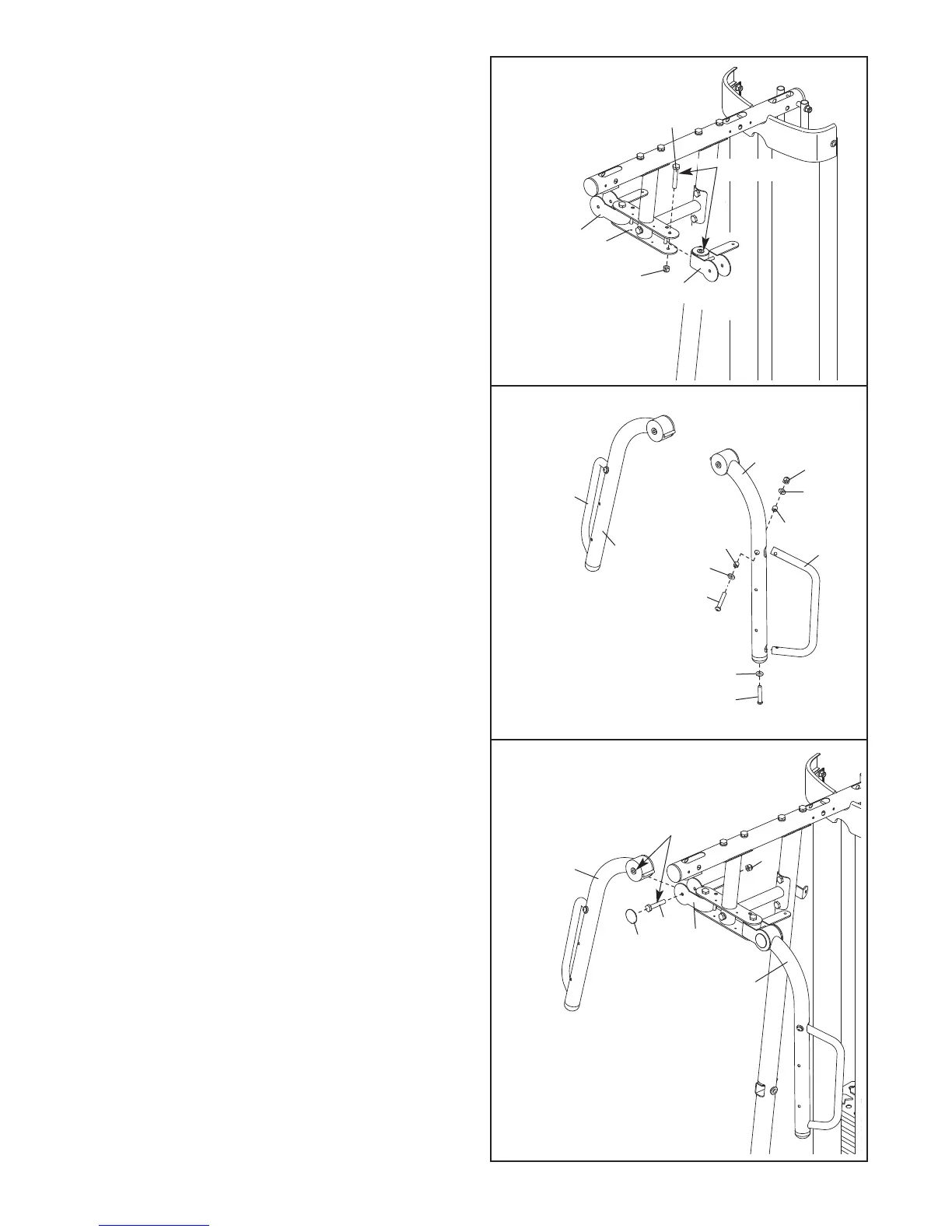

13. Apply grease to the locations shown and attach
the Left Butterfly Bracket (28) to the Butterfly
F
rame (5) with an M10 x 80mm Bolt (84) and an
M10 Nylon Locknut (77).
Repeat this step for the Right Butterfly
Bracket (29).
Tighten the Nylon Locknuts (77, 78, 107) used
in steps 2–13.
14. Attach a Butterfly Handle (27) to the Left Butterfly
Arm (25) with an M10 x 65mm Button Bolt (106),
two M10 Washers (80), two 13mm Steel Spacers
(109), and an M10 Nylon Locknut (77).
Secure the Left Butterfly Arm (25) with an M10 x
82mm Button Screw (92) and an M10 Large
Washer (105).
Repeat this step for the Right Butterfly Arm
and Butterfly Handle (26, 27).
15. Apply grease in the locations shown and attach
the Right Butterfly
Arm (26) to the Right Butterfly
Bracket (29) with an M10 x 75mm Bolt (82) and
an M10 Nylon Locknut (77). Press a Bolt Cap
(44) onto the end of the Bolt.
Do not overtighten
the Bolt; the Butterfly
Arm must be able to
pivot freely.
Repeat this step for the Left Butterfly
Arm (25).
13
14
26
27
77
80
27
80
106
109
109
5
84
77
29
28
105
92
25
15
25
29
77
82
26
44
Grease
Grease
