Weider 3130 User Manual

14

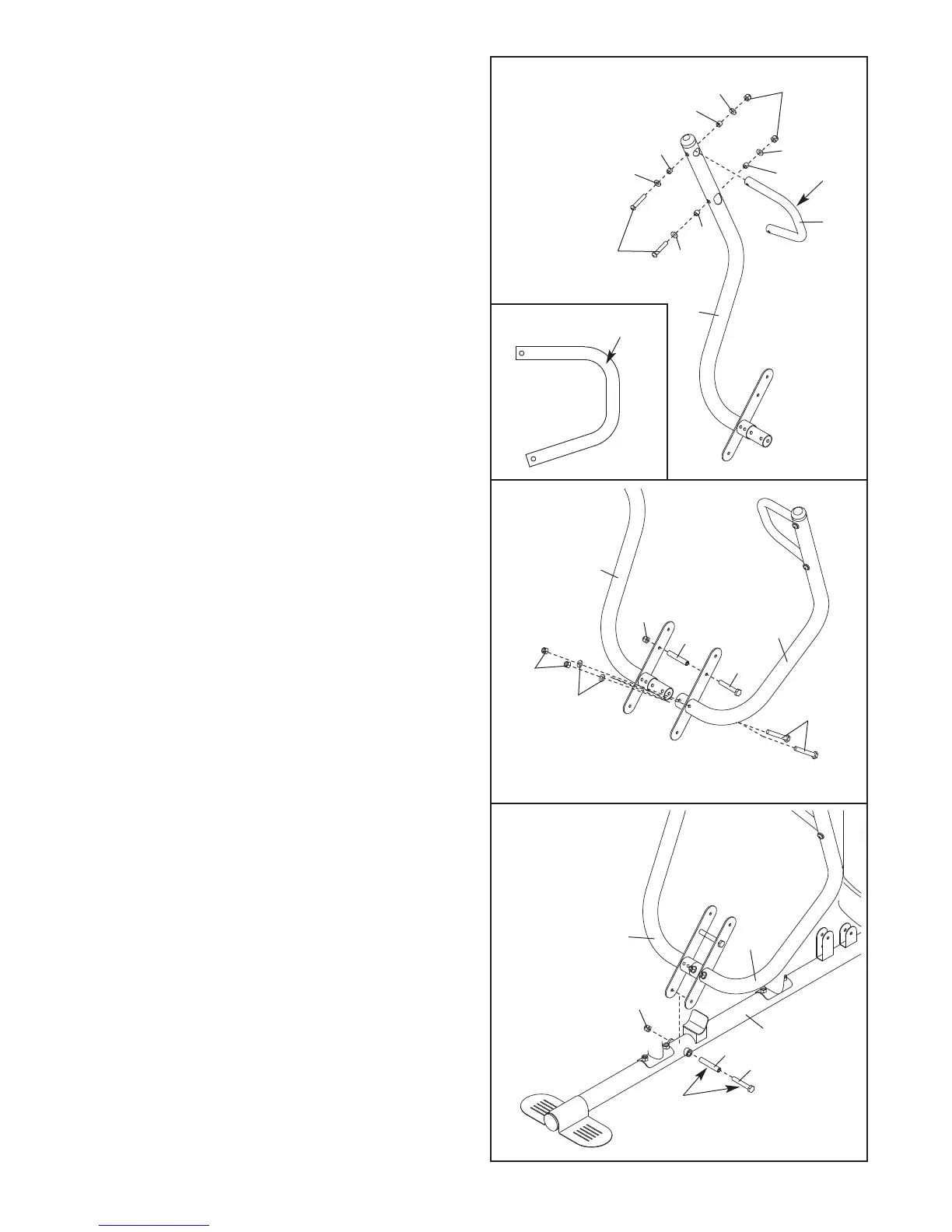

16. Orient a Press Arm Handle (17) with the 90° bend
at the top as shown in the inset drawing. Attach a
P
ress Arm Handle (17) to the Right Press Arm
(16) with two M10 x 65mm Button Bolts (106),
f
our M10 Washers (80), four 11mm Spacers (99),
and two M10 Nylon Locknuts (77).
Repeat this step for the Left Press Arm (not
shown).
17. Attach the Left Press Arm (15) to the Right Press
Arm (16) with an M10 x 110mm Bolt (93), an
89.5mm Spacer (59) and an M10 nylon Locknut
(77).
Finish attaching the Press Arms with two M10 x
65mm Bolts (85), two M10 Washers (80), and two
M10 Nylon Locknuts (77). Do not tighten the
Nylon Locknuts yet.
18.
Attach the Left and Right Press
Arms (15, 16) to
the Base (1) with an M10 x 110mm Bolt (93), an
89.5mm Spacer (59), and an M10 Nylon Locknut
(77). Do not over tighten the Nylon Locknut;
the Press Arms (15, 16) must be able to pivot
freely.
T
ighten the Nylon Locknuts (77) used in
step 17.
17
16
15
77
77
59
93
80
85
18
16
15
77
1
106
16
99
99
99
80
80
77
99
80
80
17
16
90° Bend
9
0°
Bend
Grease
59
93
