15

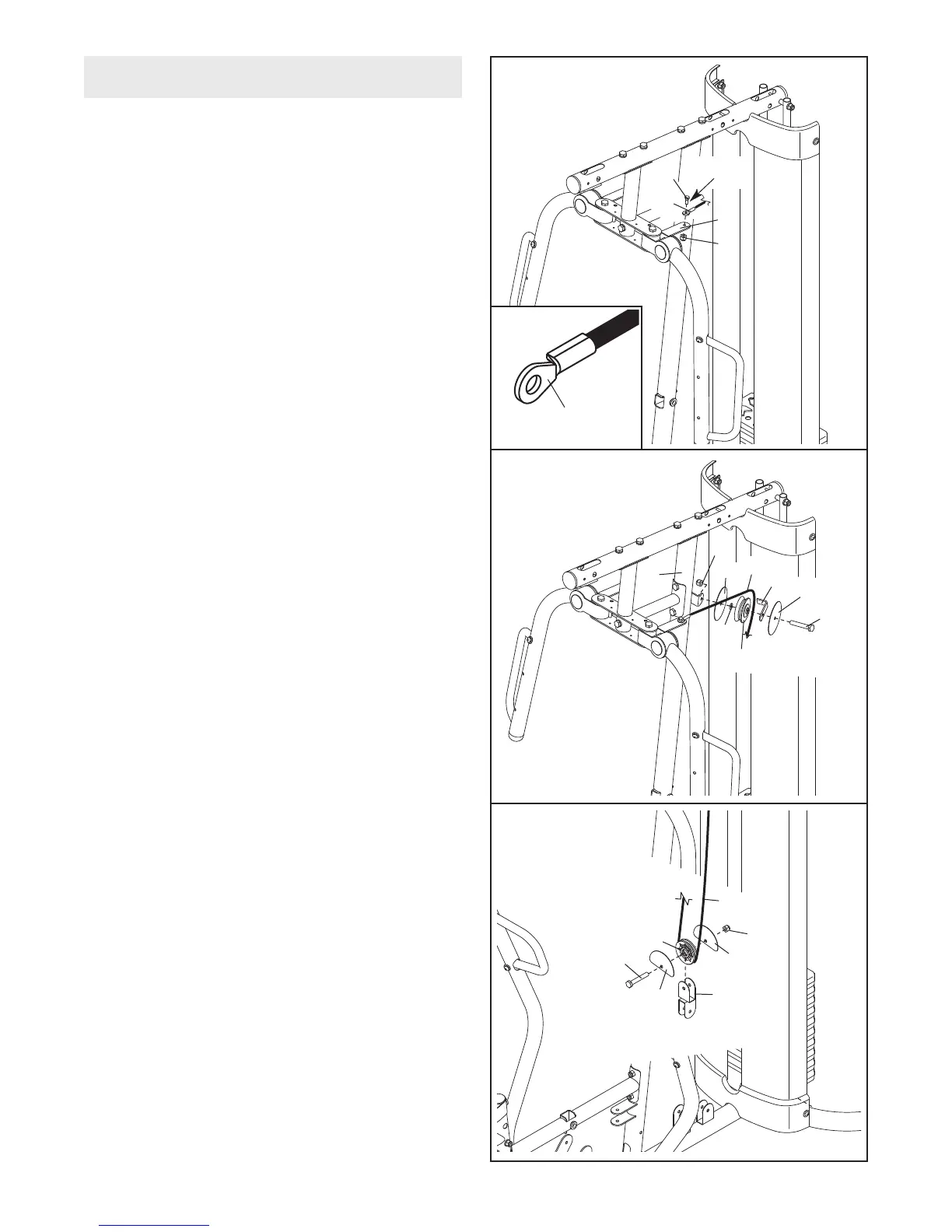

19. See the CABLE DIAGRAMS on page 28 to identi-
fy the cables as you assemble them.
Identify the Butterfly Cable (50).
Grease an
M8 x 22mm Shoulder Bolt (90). Attach the Cable to
the Left Butterfly Bracket (28) with the Shoulder Bolt
and an M8 Nylon Locknut (78). Make sure the flat
edge of the Cable is against the Butterfly Arm.
Do not overtighten the Shoulder Bolt; the Cable
must be able to pivot freely.
20. Wrap the Butterfly Cable (50) over a “V”-pulley
(47). Attach the “V”-pulley, a Long Cable Trap
(57), an M10 Washer (80), and two Guards (54)
to the Upright (2) with an M10 x 60mm Bolt (79)
and an M10 Nylon Locknut (77).
21.
W
rap the Butterfly Cable (50) under a 90mm
Pulley (48). Attach the Pulley and two Half
Guards (55) to the Double “U”-bracket (61) with
an M10 x 45mm Bolt (86) and an M10 Nylon
Locknut (77). Make sure the Half Guards are
oriented as shown.
19
20
54
50
47
2
80
54
57
79
77
50
78
90
Grease
28
21
48
50
77
55
55
61
86
Cable Assembly
Flat Edge
To Next Page
