16

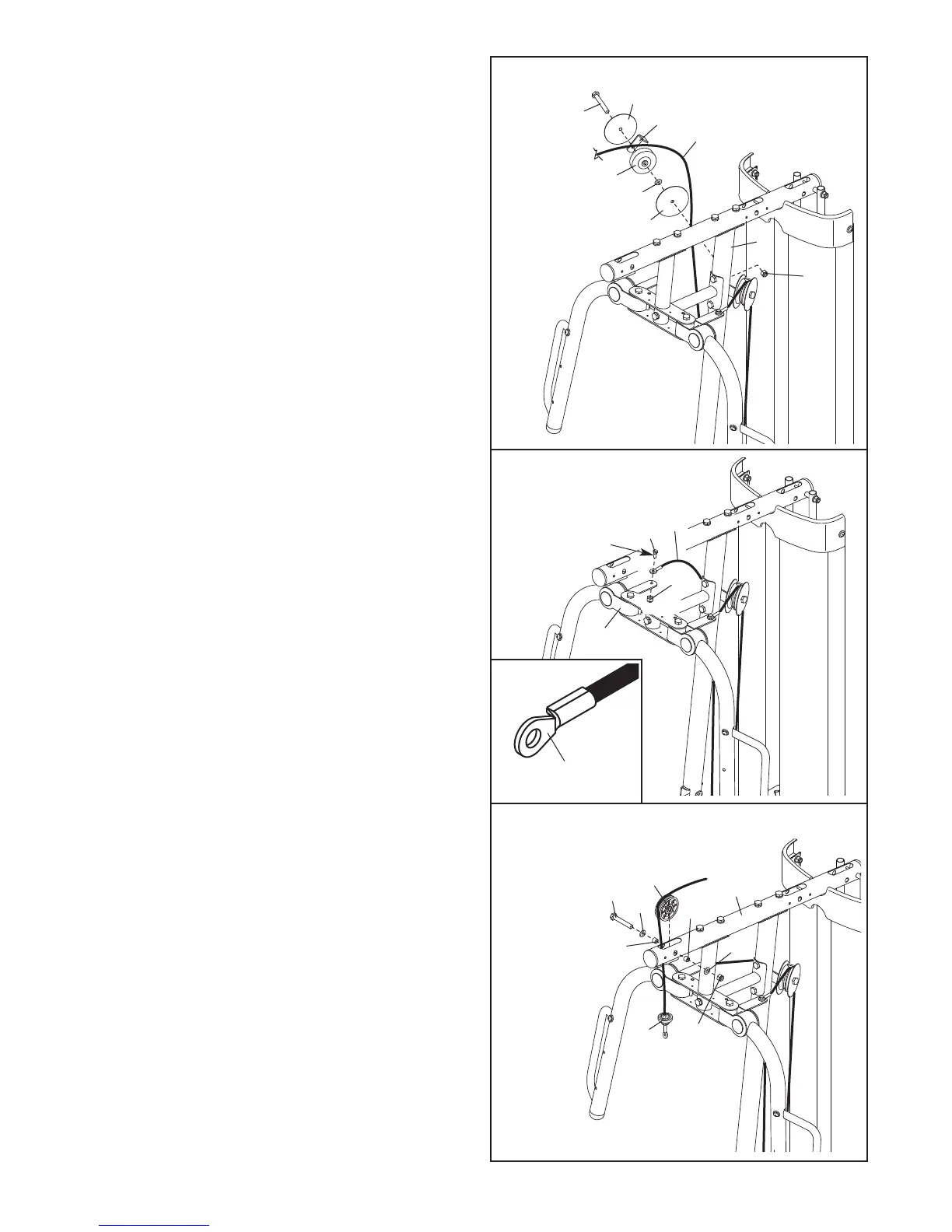

22. Wrap the Butterfly Cable (50) over a “V”-pulley
(
47). Attach the “V”-pulley, a Long Cable Trap
(57), an M10 Washer (80), and two Guards (54)
to the Upright (2) with an M10 x 60mm Bolt (79)
and an M10 Nylon Locknut (77).
23. Grease an M8 x 22mm Shoulder Bolt (90). Attach
the Butterfly Cable (50) to the Right Butterfly Arm
(29) with the Shoulder Bolt and an M8 Nylon
Locknut (78).
Make sure the flat edge of the
Cable is against the Butterfly Arm.
24. Identify the Lat Cable (49). Route the Cable up
through the
T
op Frame (4) and over a 90mm
Pulley (48). Attach the Pulley inside the Top
Frame with an M10 x 80mm Bolt (84), two M10
W
ashers (80), two 19mm Spacers (67), and an
M10 Nylon Locknut (77).
2
2
23
90
50
29
78
57
50
2
77
5
4
54
47
80
7
9
24
84
80
80
77
67
67
48
4
49
Flat Edge
Grease
To Next Page
