Weider 3130 User Manual

12
1

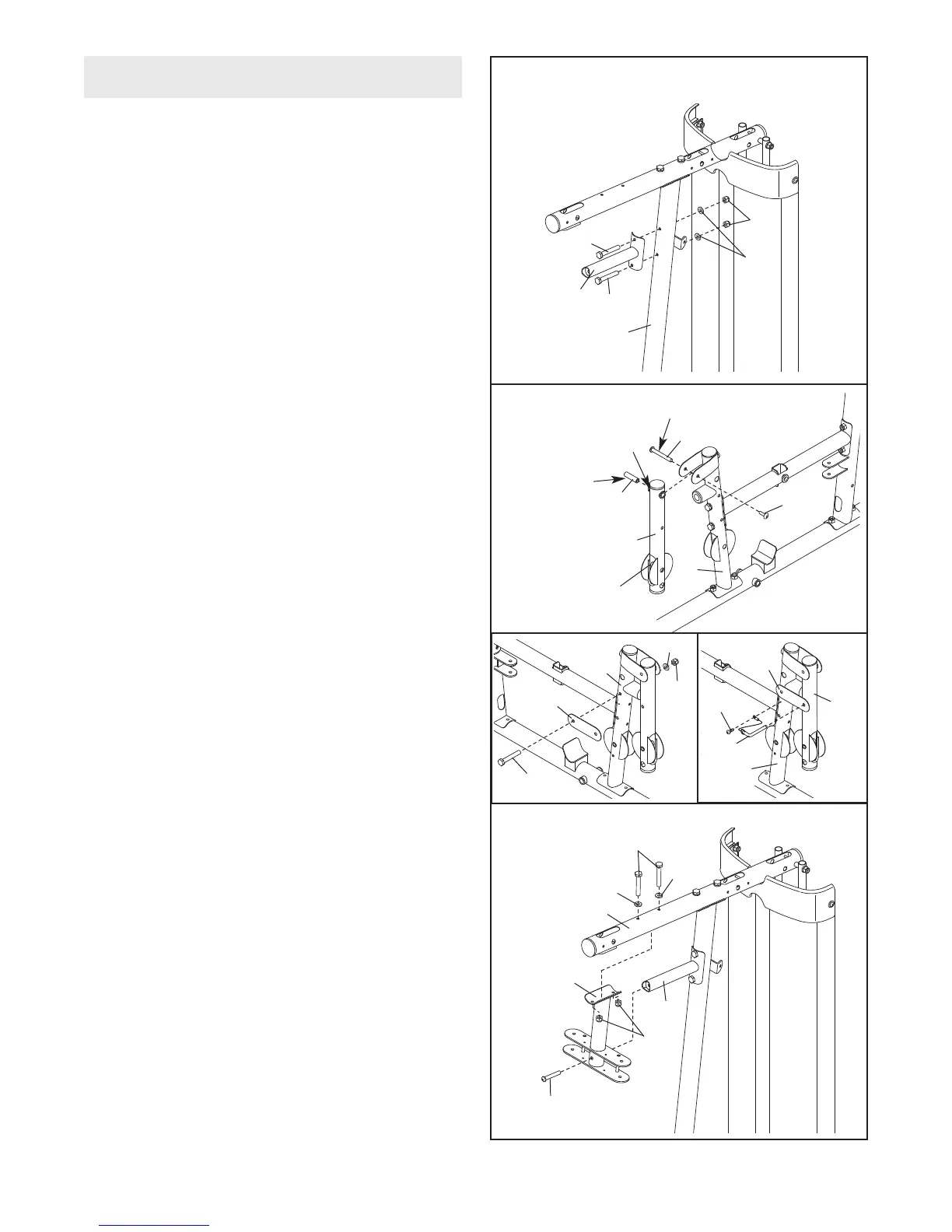

0. Attach the Butterfly Frame Brace (6) to the
Upright (2) with two M8 x 80mm Bolts (100), two
M8 Washers (103), and two M8 Nylon Locknuts
(78).
Do not tighten the Nylon Locknuts yet.
11. Apply grease in the locations shown. Insert a
57mm Spacer (69) the indicated hole in the Leg
Lever (12). Attach the Leg Lever to the Front Leg
(10) with an M10 x 61mm Bolt Set (116).
Make
sure the barrel of the Bolt Set is inserted
through both sides of the bracket on the Front
Leg. Make sure the indicated rod is oriented
as shown.
See the left inset drawing. Attach the Lock Plate
(14) to the Front Leg (10) with the M8 x 69mm
Shoulder Bolt (87), an M8 Washer (103), and an
M8 Nylon Locknut (78).
See the right inset drawing. Insert the Lock
Plate Pin (95) through the Lock Plate (14) and the
Leg Lever (12). Attach the tether on the Lock
Plate Pin to the Front Leg (10) with an M4 x
12mm Self-tapping Screw (102).
12.
Attach the Butterfly Frame (5) to the
T
op Frame
(4) with two M8 x 80mm Bolts (100), two M8
Washers (103), and two M8 Nylon Locknuts (78).
Do not tighten the Nylon Locknuts yet.
Attach the Butterfly Frame (5) to the Butterfly
Frame Brace (6) with an M10 x 75mm Button
Screw (1
18).
10
11
10
Rod
12
Hole
116
78
6
2
103
100
100
12
103
78
1
18
103
100
4
5
6
102
103
87
14
10
78
95
10
14
12
Arm Assembly
69
1
16
Grease
Grease
