Weider 6900 - Cable Routing Diagram

26
1
2
4
2
3
4
5
5
Arm Cable (54)
Length: 7 ft. 5 in. (227 cm)
High Cable (55)
Length: 10 ft. 10 in. (330 cm)
Low Cable (53)
Length: 10 ft. 8 in. (326 cm)
3
1
6
1
2
3
4
5
6
CABLE DIAGRAM

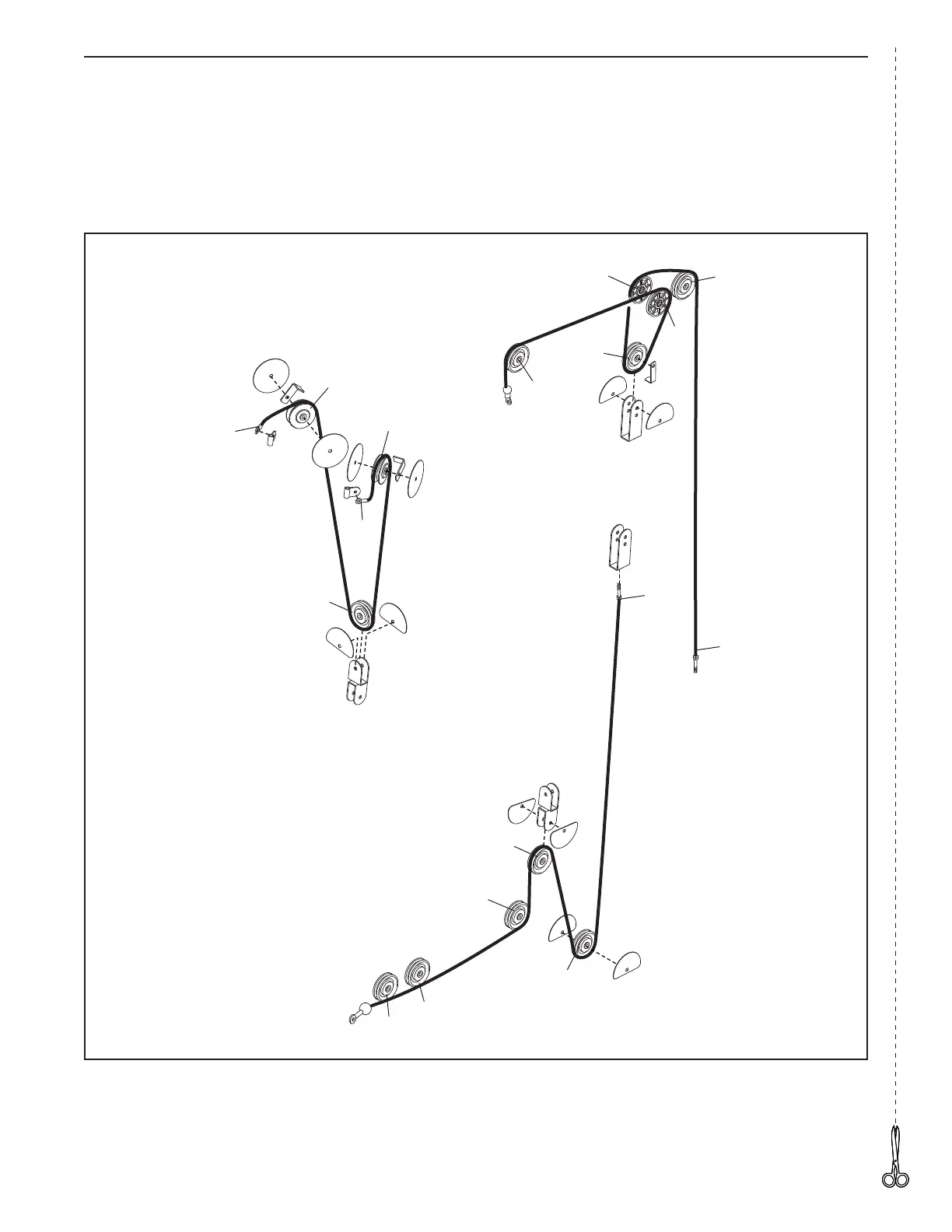

The diagram below shows the proper routing of the cables. The numbers in each drawing show the proper route
of that cable. Cut along the dotted line, and refer to this diagram while you assemble the cables and the pulleys. If
the cables and the pulleys are not assembled correctly, the weight system will not function properly and damage
may occur. Make sure that the cable traps do not touch or bind the cables. After you assemble the weight
system, save this diagram with this manual for future reference.
