Weider 6900 - Part Identification Chart

6
M6 Washer (82)
M8 Washer (59)
M8 Locknut (58)
M6 Locknut (51)
M10 Locknut (56)
M10 x 77mm Bolt (79)
M10 x 80mm Bolt (67)
M10 x 45mm Bolt (81)
M10 x 68mm Bolt (71)
M8 x 65mm Bolt (68)
M8 x 20mm
Shoulder Bolt (65)
M6 x 35mm Screw (64)
M6 x 16mm
Screw (62)
M4 x 25mm
Self-tapping Screw (69)
M10 x 50mm Bolt (66)
M10 Washer (57)
Large Washer (85)
M8 x 58mm Carriage Bolt (87)
M4.2 x 19mm
Self-tapping Screw (49)
M10 x 25mm
Screw (77)
M10 x 130mm Bolt (72)
M10 x 64mm Bolt Set (76)
M10 x 63mm Bolt (75)
10mm Spacer
(86)
13mm Spacer
(52)
M12 Nut (84)

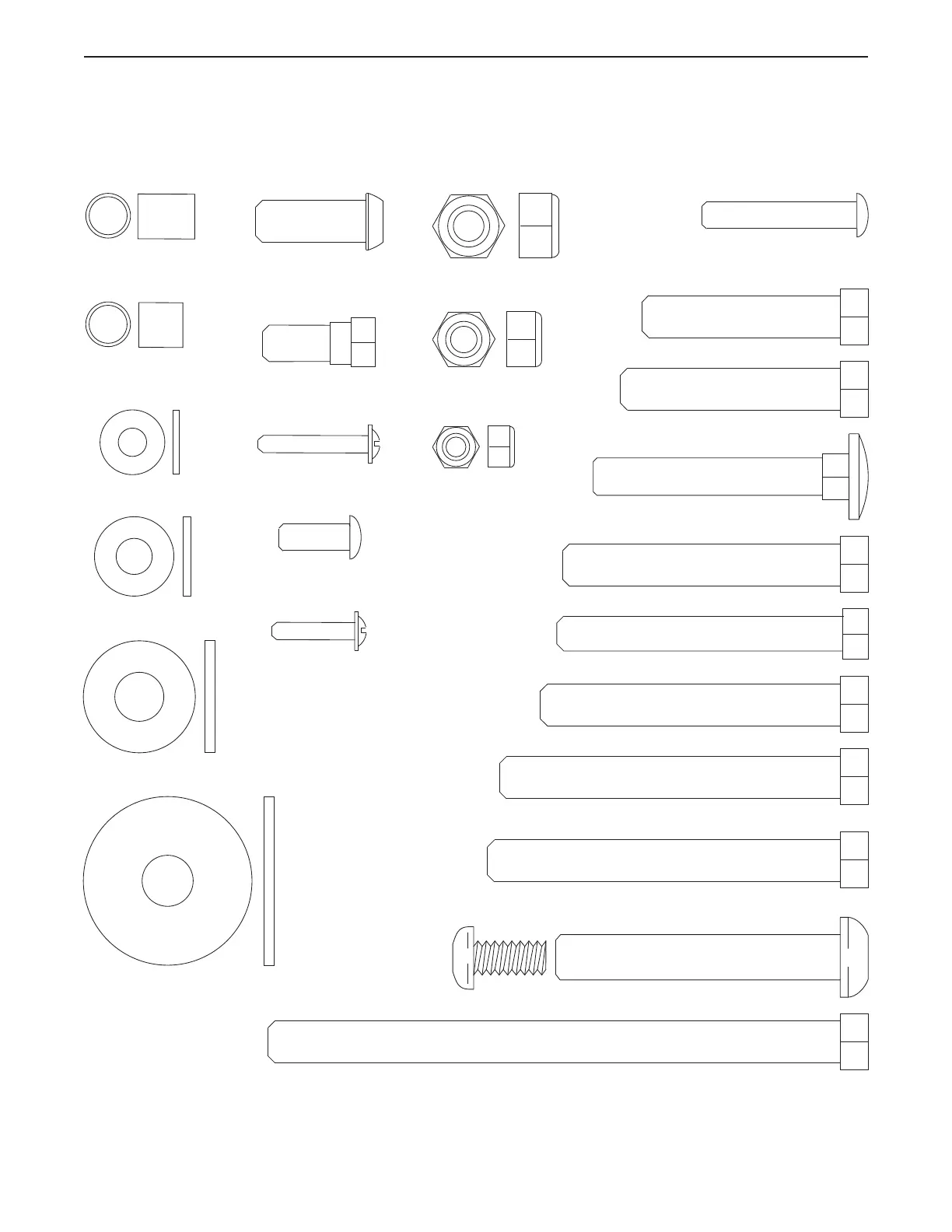

PART IDENTIFICATION CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in the
hardware kit, check to see if it has been preassembled. Extra parts may be included.
