Weider 6900 - Frame Assembly

8
Frame Assembly
2
1
38

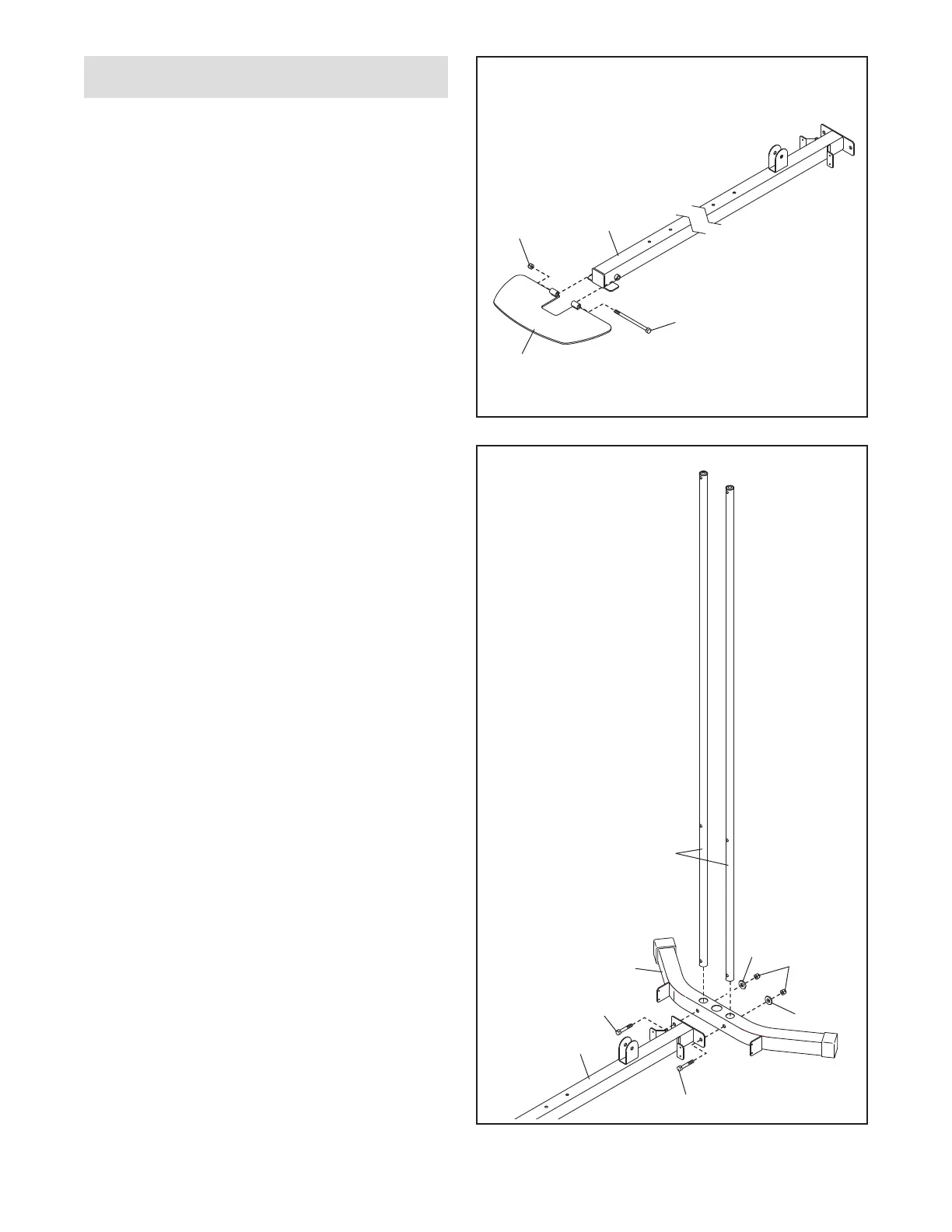

3. Attach the Weight Guides (21) and the Base
(1) to the Stabilizer (2) with two M10 x 68mm
Bolts (71), two M10 Washers (57), and two
M10 Locknuts (56); do not tighten the
Locknuts yet.
3
56
71
71
2
57
57
21
56
72
1
2. To make assembly easier, read the information
on page 7. Before you begin, make sure
that you have:
• removed the packaging materials from all
of the parts
• placed all of the parts near you in a
cleared area
• located the included grease packet
Attach the Foot Plate (38) to the Base (1) with
an M10 x 130mm Bolt (72) and an M10 Locknut
(56). Do not overtighten the Locknut; the Foot
Plate must pivot easily.
