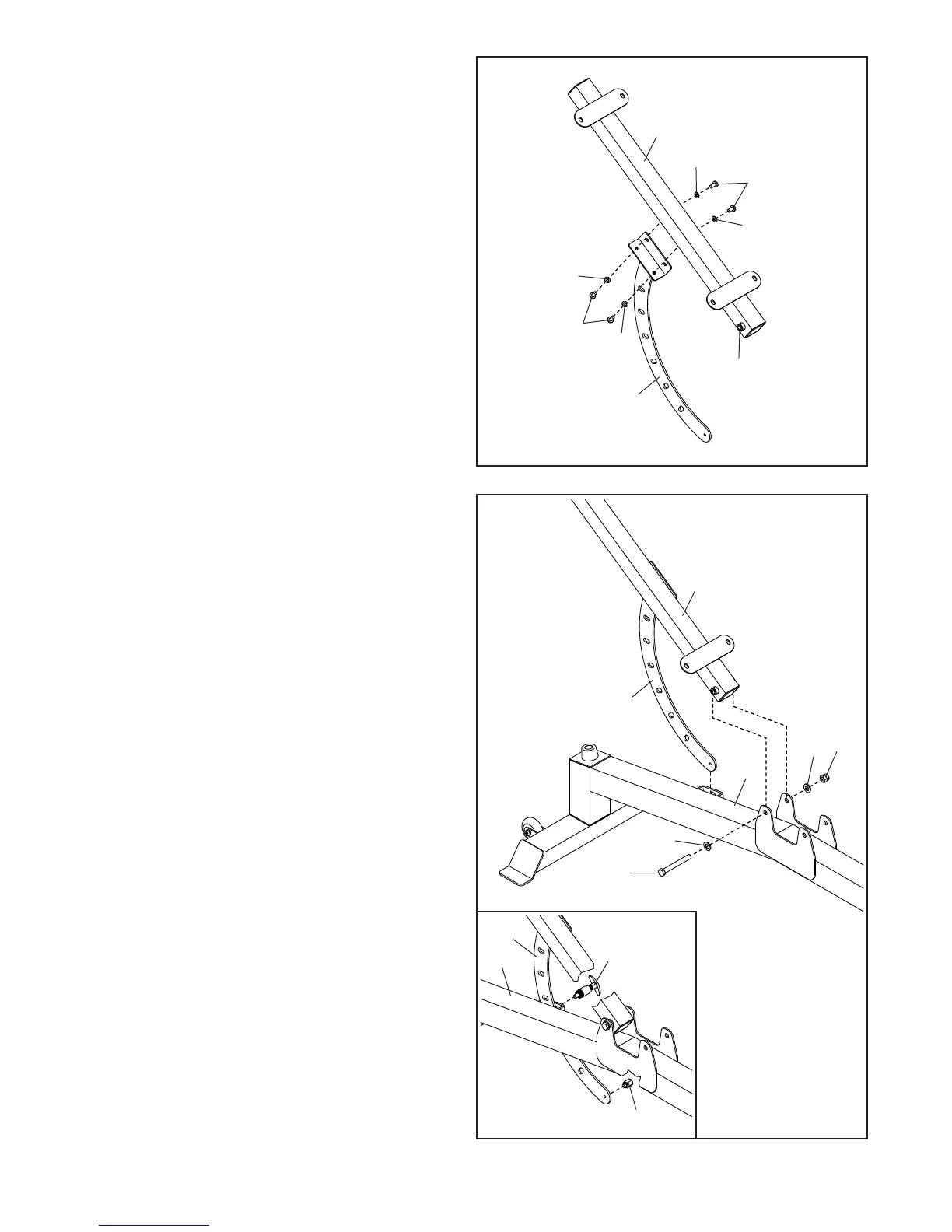

3. Orient the Backrest Frame (3) so that the welded
tubes (A) are in the position shown. In addition,
orient the Backrest Bracket (5) as shown.
Attach the Backrest Bracket (5) to the Backrest
Frame (3) with four M8 x 15mm Screws (13) and
four M8 Washers (18); do not fully tighten the
Screws yet.
4. Insert the end of the Backrest Bracket (5) into
the Frame (1), and then attach the Backrest
Frame (3) to the Frame with an M12 x 100mm
Bolt (14), two M12 Washers (15), and an M12
Locknut (16) as shown. Do not overtighten
the Locknut; the Backrest Frame must pivot
freely.
See step 3. Tighten the M8 x 15mm Screws (13).
See the inset drawing. Firmly tighten one of
the Adjustment Knobs (9) into the Frame (1) and
into one of the adjustment holes in the Backrest
Bracket (5). Then, tighten one of the Stop Screws
(17) into the end of the Backrest Bracket.
3
4
13
13
18
18
18
18
5
A
3
15
14
17
9
15
16
5
1
1
5
3
