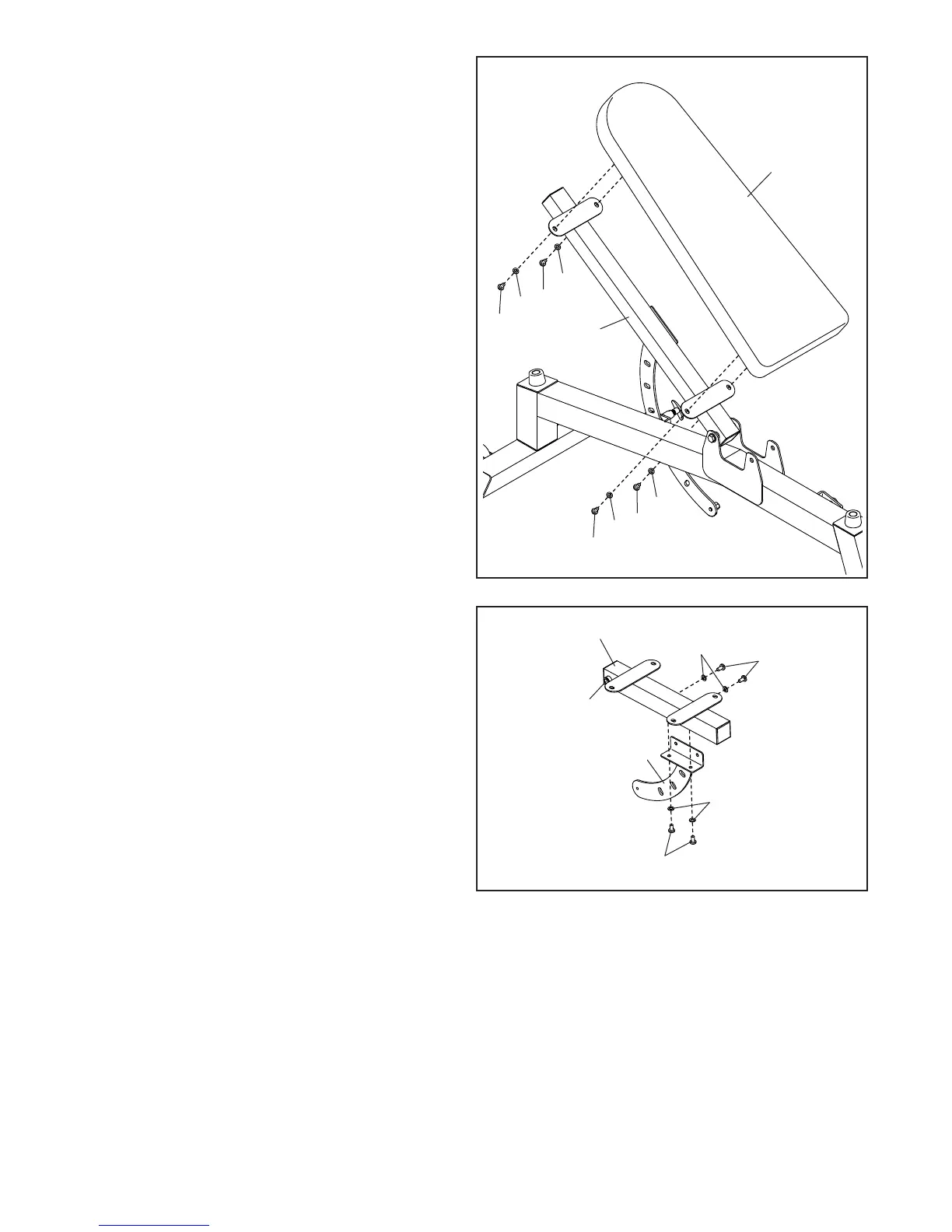

5. Attach the Backrest (4) to the Backrest Frame
(3) with four M8 x 15mm Screws (13) and four
M8 Washers (18); start all the Screws, and
then tighten them. To avoid damaging the
Backrest, tighten the Screws only until the
Backrest does not move or feel loose.
Note: To adjust the angle of the Backrest (4), see
ADJUSTING THE BACKREST on page 10.
6. Orient the Seat Frame (6) so that the welded
tubes (B) are in the position shown. In addition,
orient the Seat Bracket (8) as shown.
Attach the Seat Bracket (8) to the Seat Frame
(6) with four M8 x 15mm Screws (13) and four
M8 Washers (18); do not fully tighten the
Screws yet.
