9

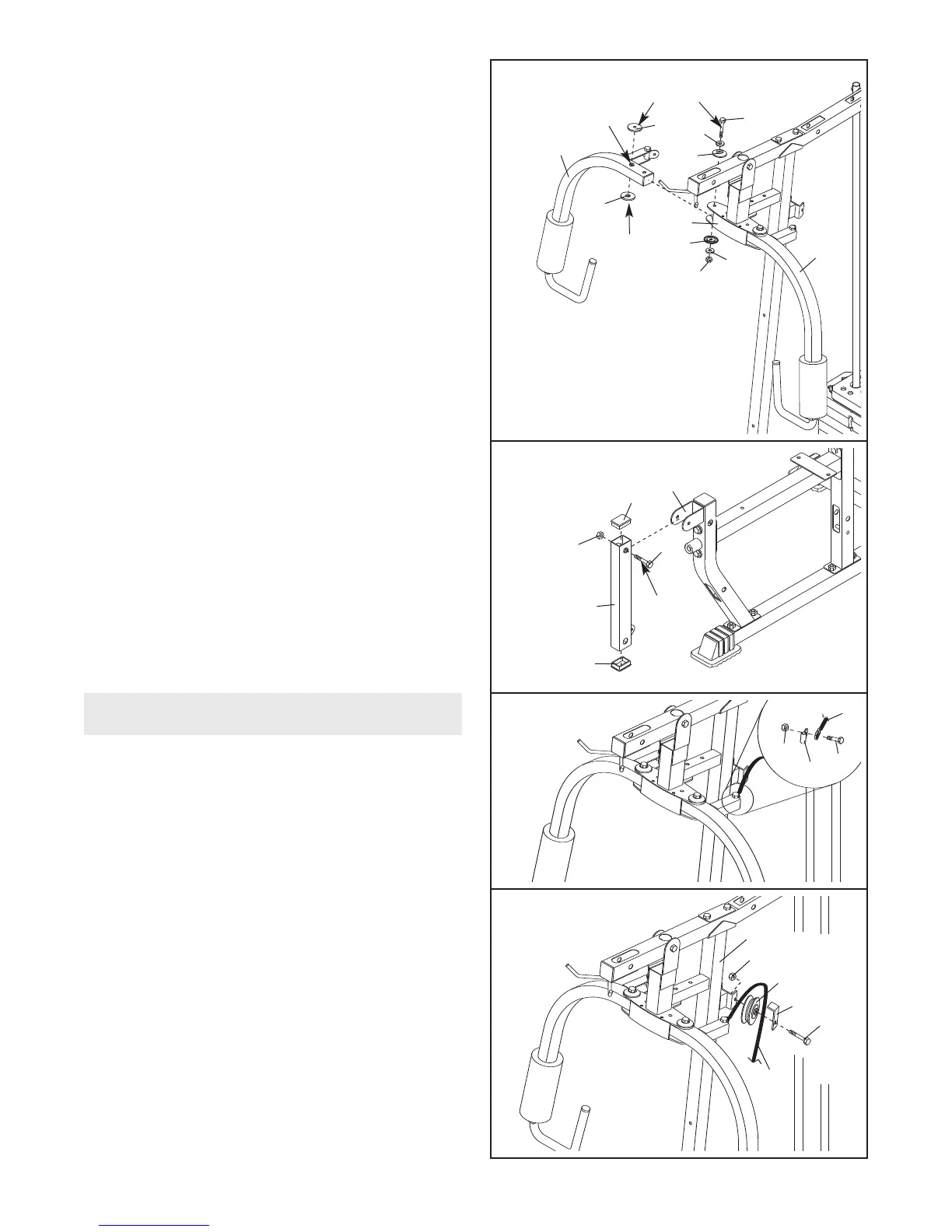

12. Press two 40mm x 50mm Inner Caps (23) into
the ends of the Leg Lever (4).
Lubricate an M10 x 65mm Bolt (81) with grease.
Attach the Leg Lever (4) to the Seat Upright (73)
with the Bolt and an M10 Nylon Locknut (71). Do
not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
11. Lubricate an M10 x 80mm Allen Head Bolt (50)
and both sides of two Plastic Washers (55) with
grease. Attach the Right Butterfly Arm (11) to the
Butterfly Frame (9) with the Bolt, the two Plastic
Washers, two Butterfly Caps (54), two M10
Washers (26), and an M10 Nylon Locknut (71).
Do not overtighten the Locknut; the Butterfly
A
rm must be able to pivot easily. Make sure
the indented sides of the Plastic Washers fit
over the welded bushing in the Butterfly Arm.
Repeat this step with the Left Butterfly Arm (10).
9
Lubricate
Welded
Bushing
Lubricate
1
1
71
55
55
54
54
26
2
6
50
10
1
1
4
Lubricate
81
71
23
23
73
12
13. Locate the Butterfly Cable (46). Attach the
Cable to the indicated Pivot Bracket (48) with an
M8 x 27mm Shoulder Bolt (63) and an M8 Nylon
Locknut (70).
70
46
48
63
13
CABLE ASSEMBLY
14. Wrap the Butterfly Cable (46) over a “V”-pulley
(39).
Attach the “V”-pulley and a Long Cable
T
rap
(40) to the bracket on the Front Upright (6) with
an M10 x 57mm Bolt (69) and an M10 Nylon
Locknut (71). Be sure the Cable T
rap is turned
to hold the Cable in the groove of the Pulley
.
69
46
40
71
6
39
14
To Next Page
