10

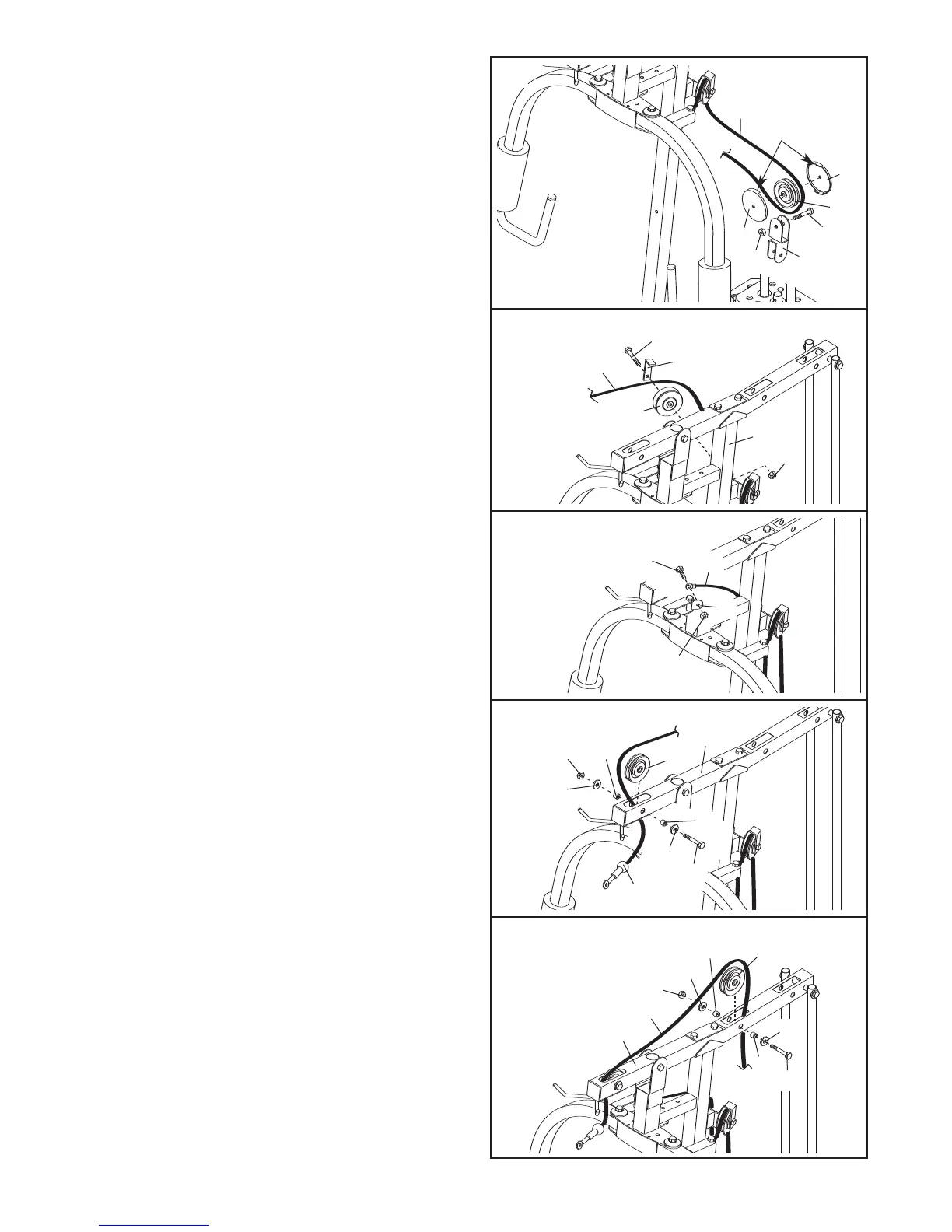

16. Wrap the Butterfly Cable (46) over a “V”-pulley
(39). Attach the “V”-pulley and a Long Cable Trap
(40) to the bracket on the Front Upright (6) with
an M10 x 57mm Bolt (69) and an M10 Nylon
Locknut (71).
Make sure the Cable Trap is
turned to hold the Cable in the groove of the
Pulley.
15. Wrap the Butterfly Cable (46) under a 90mm
Pulley (38). Attach the Pulley and a pair of Pulley
C
overs (44) to the Double “U”-bracket (37) with
an M10 x 53mm Bolt (61) and an M10 Nylon
L
ocknut (71). M
ake sure the small tabs on the
Pulley Covers are on top.
61
37
3
8
71
46
44
44
15
6
39
46
69
71
40
16
Small
Tabs
17. Attach the Butterfly Cable (46) to the indicated
Pivot Bracket (48) with an M8 x 27mm Shoulder
Bolt (63) and an M8 Nylon Locknut (70).
70
46
63
48
17
18. Locate the High Cable (45). Route the bolt end
of the Cable up through the Top Frame (8) and
over a 90mm Pulley (38). Attach the Pulley inside
the Top Frame with an M10 x 68mm Bolt (59),
two M10 Washers (26), two 13mm Spacers (34),
and an M10 Nylon Locknut (71).
8
45
34
34
38
71
26
26
59
18
19.
Wrap the High Cable (45) over a 90mm Pulley
(38). Attach the Pulley inside the T
op Frame (8)
with an M10 x 68mm Bolt (59), two M10 Washers
(26), two 13mm Spacers (34), and an M10 Nylon
Locknut (71).
8
45
34
26
38
71
34
26
59
19
