Weider 9025 - Cable Assembly; Butterfly Cable Routing; Short and High Cable Routing; Low Cable Routing

10

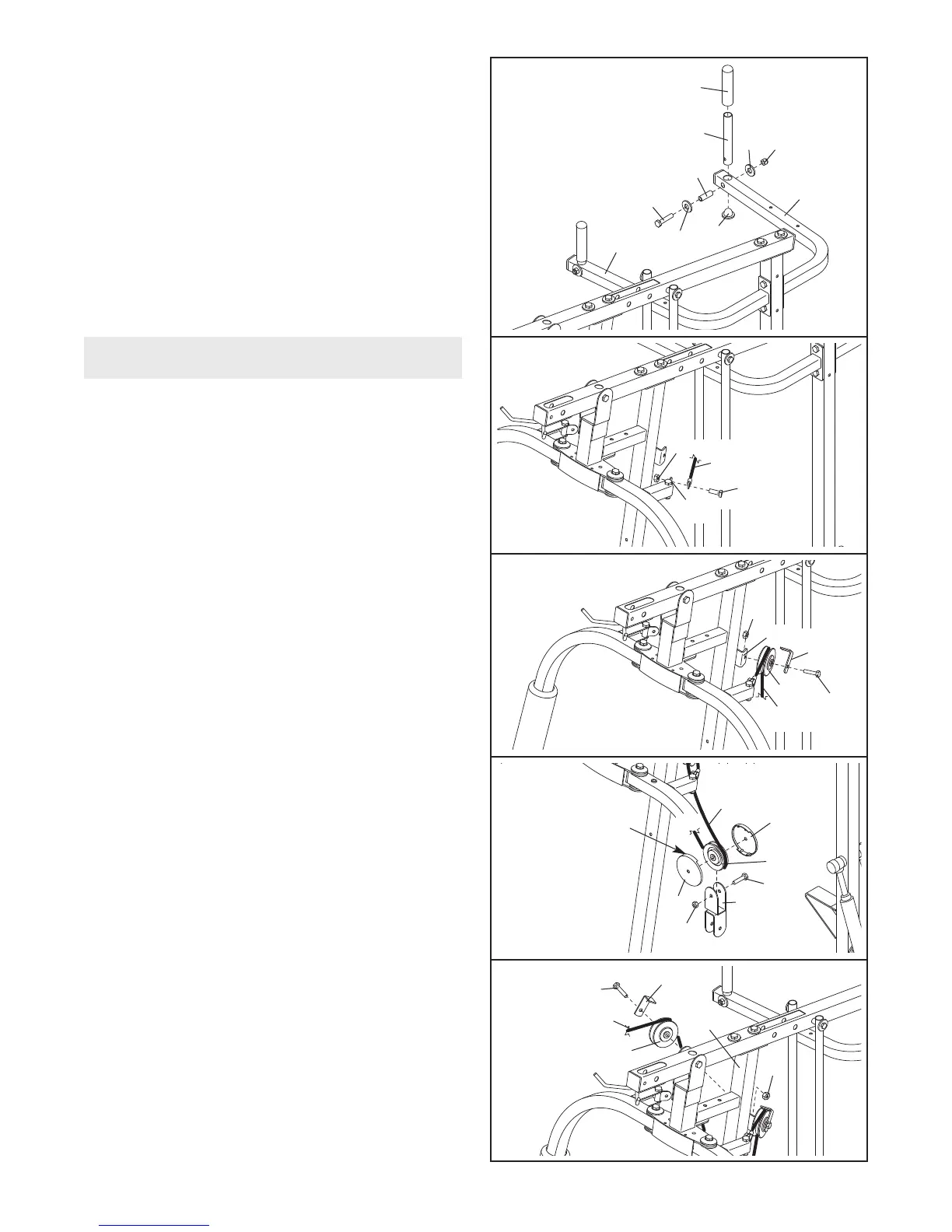

12. Slide a Grip (41) onto a VKR Handle (42). Attach
the VKR Handle to the Left VKR Arm (13) with an
M
10 x 55mm Bolt (80), two M10 Washers (71), a
7mm Spacer (43), and an M10 Nylon Locknut
(
72).
Press a 25mm Round Inner Cap (105) into the
bottom of the VKR Handle (42).
Repeat this step with the Right VKR Arm (12).
13. Locate the Butterfly Cable (55). Attach the
Cable to the indicated Cable Pivot (58) with an
M8 x 20mm Shoulder Bolt (93) and an M8 Nylon
Locknut (73).
14. Wrap the Butterfly Cable (55) over a “V”-pulley
(47). Attach the “V”-pulley and a Cable Trap (48)
to the Front Upright (4) with an M10 x 60mm Bolt
(95) and an M10 Nylon Locknut (72).
16. Wrap the Butterfly Cable (55) over a “V”-pulley
(47). Attach the “V”-pulley and a Cable
T
rap (48)
to the Front Upright (4) with an M10 x 60mm Bolt
(95) and an M10 Nylon Locknut (72).
15. Wrap the Butterfly Cable (55) under a 90mm
Pulley (46).
Attach the Pulley and two Pulley
Covers (49) to the Double “U”-bracket (51) with
an M10 x 53mm Bolt (88) and an M10 Nylon
Locknut (72). Make sure the small tabs on the
Pulley Covers are on the top.
15
Small
Tab
13
14
16
1
2
71
71
72
41
42
105
80
43
13
12
58
93
95
48
47
72
4
55
73
49
88
55
46
49
51
55
95
48
47
72
4
55
Cable Assembly
