Weider 9025 - Page 12

12

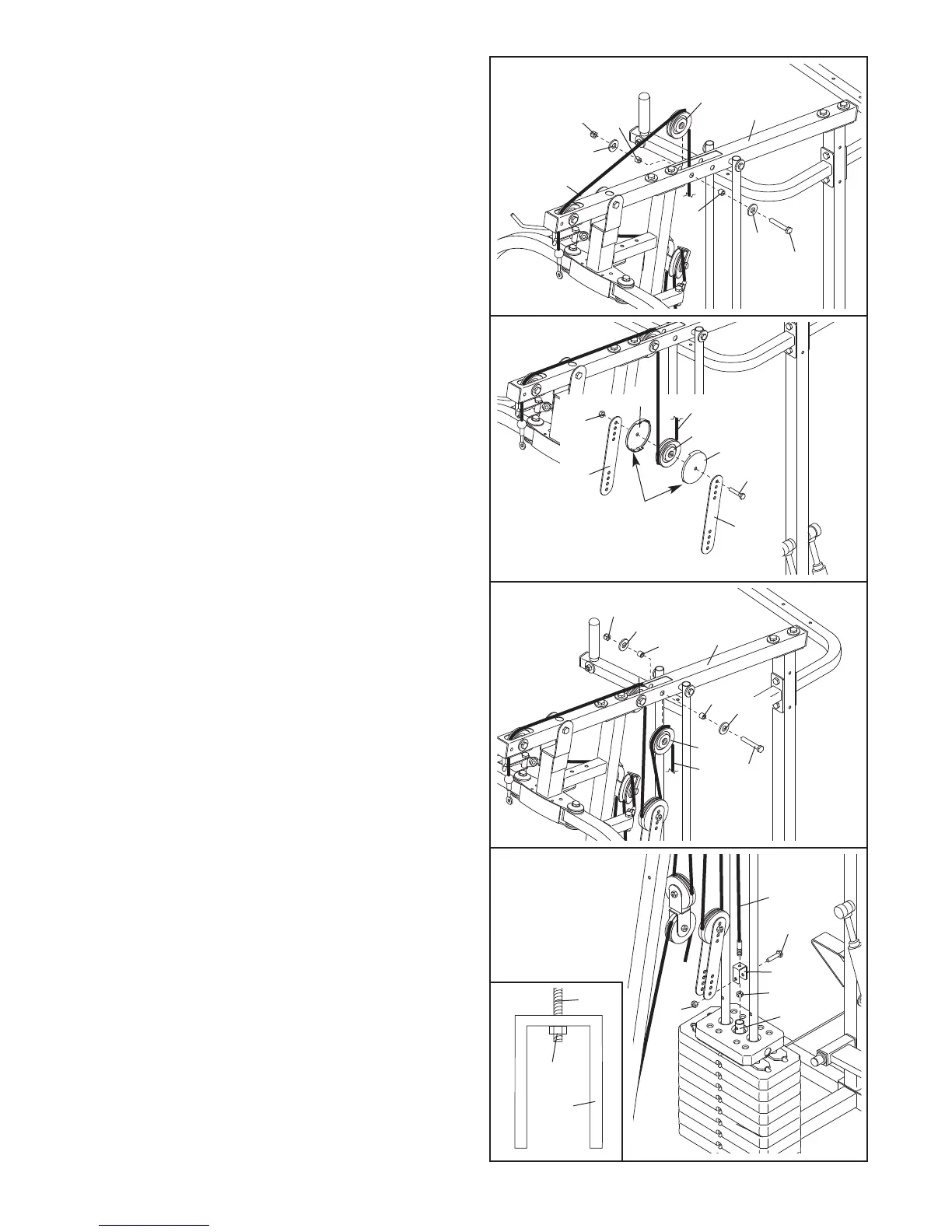

22. Route the High Cable (57) over a 90mm Pulley
(46) and down through the Top Frame (6). Attach
t
he Pulley inside the Top Frame with an M10 x
68mm Bolt (87), two M10 Washers (71), two
1
2mm Spacers (54), and an M10 Nylon Locknut
(72).
23. Route the High Cable (57) under a 90mm Pulley
(46). Attach the Pulley and two Pulley Covers (49)
to the upper set of holes in the two Pulley Plates
(50) with an M10 x 53mm Bolt (88) and an M10
Nylon Locknut (72).
Make sure the large tabs
on the Pulley Covers are on the bottom.
24. Route the High Cable (57) over a 90mm Pulley
(46). Attach the Pulley inside the Top Frame (6)
with an M10 x 68mm Bolt (87), two M10 Washers
(71), two 12mm Spacers (54), and an M10 Nylon
Locknut (72).
25.
Attach the High Cable (57) to the Small “U”-
bracket (52) with an M8 Nylon Locknut (73).
Thread the Locknut onto the end of the Cable
so that two threads show past the Locknut
(see the inset drawing).
Attach the Small “U”-bracket (52) to the Weight
T
ube (18) with an M8 x 45mm Bolt (96) and an
M8 Nylon Locknut (73).
Do not overtighten the
Locknut; the Weight Tube must be able to
pivot freely.
25
57
96
52
73
73
18
2
2
23
87
6
5
7
71
50
Large
Tab
50
72
49
49
88
46
57
72
54
71
5
4
24
72
71
71
54
6
54
46
57
87
4
6
52
73
57
