12

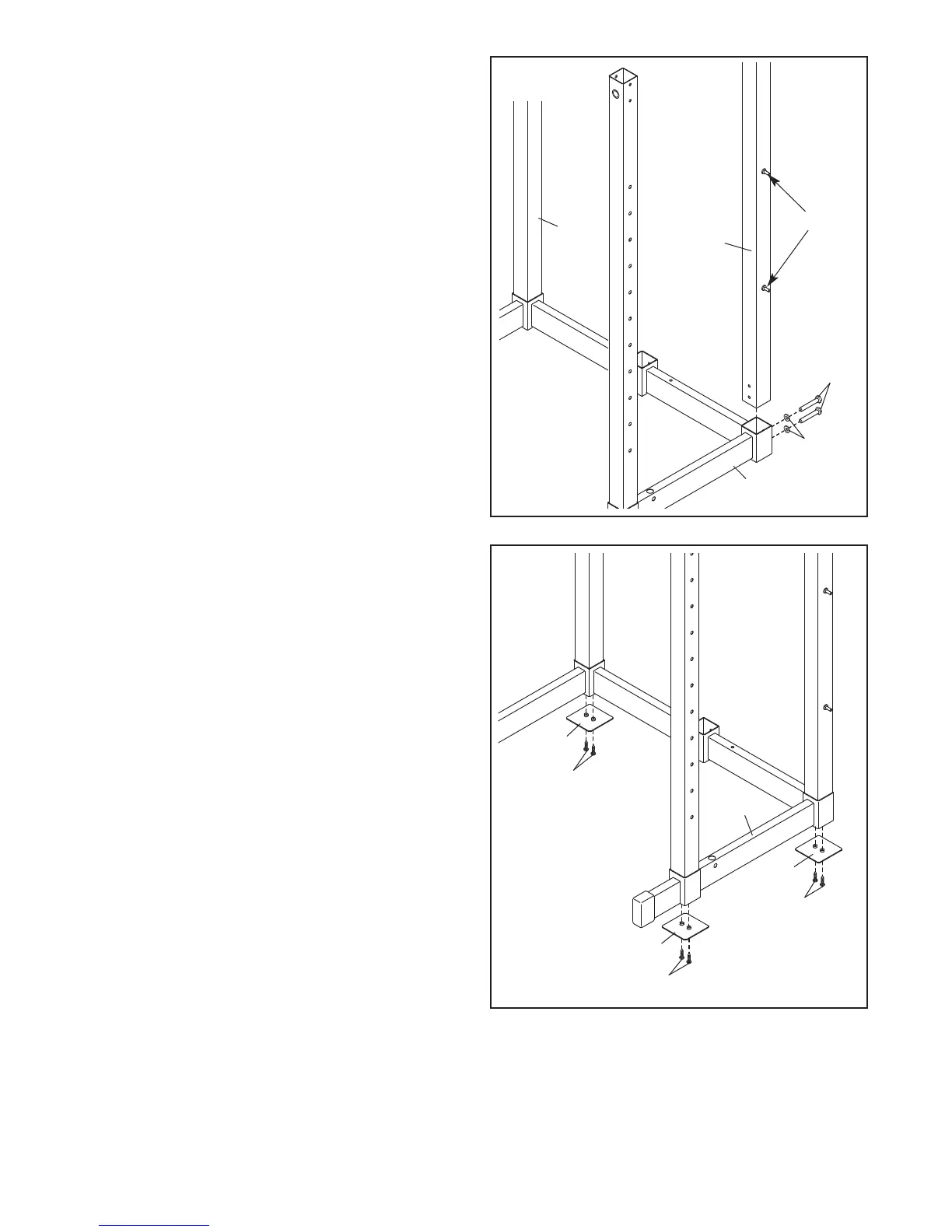

15. Attach a Floor Guard (78) to the the Base (14)
with two M4 x 20mm Self-tapping Screws (120).
Attach the remaining three Floor Guards (78)
to the Base (14) in the same way.
15
78
78
78
14
120
120
120
14. Orient a Rear Upright (12) as shown. Attach the
Rear Upright to the Base (14) with two M10 x
1
10mm Screws (130) and two M10 Washers
(148).
Do not tighten the Screws yet.
Attach the other Rear Upright (12) to the Base
(14) in the same way.
12
12
14
148
130
Posts
14
To Next Page
