15

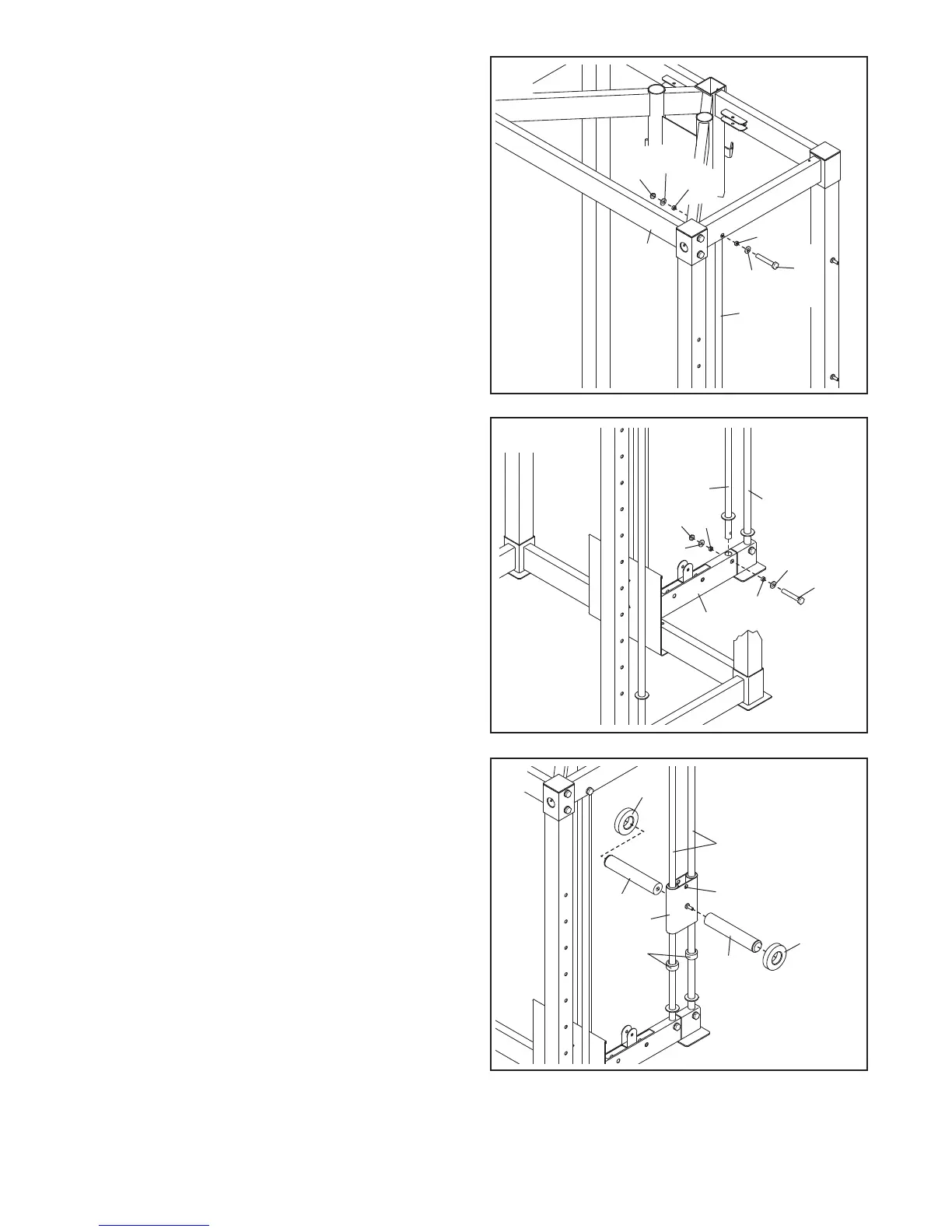

20. Attach a Barbell Guide (112) to the Top Frame
(
17) with an M10 x 55mm Bolt (127), two M10
Washers (148), two M10 x 6.5mm Spacers (151),
a
nd an M10 Nylon Locknut (153).
Attach the other Barbell Guide (not shown) to
the Top Frame (17) in the same way.
S
ee steps 14, 16, and 17. Tighten the M10 x
110mm Screws (130).
21. Attach a Weight Carriage Guide (21) to the
Weight Carriage Base (20) with an M10 x 55mm
Bolt (127), two M10 Washers (148), two M10 x
6.5mm Spacers (151), and an M10 Nylon Locknut
(153).
Do not tighten the Nylon Locknut yet.
Attach the other Weight Carriage Guide (21) to
the Weight Carriage Base (20) in the same
way.
22. Slide the two Weight Carriage Bumpers (138)
onto the Weight Carriage Guides (21).
Orient the Weight Carriage (19) as shown, and
slide it onto the W
eight Carriage Guides (21).
Tighten the two Weight Carriage Tubes (96) onto
the Weight Carriage. Next, slide the Weight
Bumpers (97) onto the W
eight Carriage
T
ubes.
127
148
112
127
148
153
151
148
17
21
21
20
151
153
96
97
96
97
Hole
19
138
21
20
151
148
22
21
151
