11
6

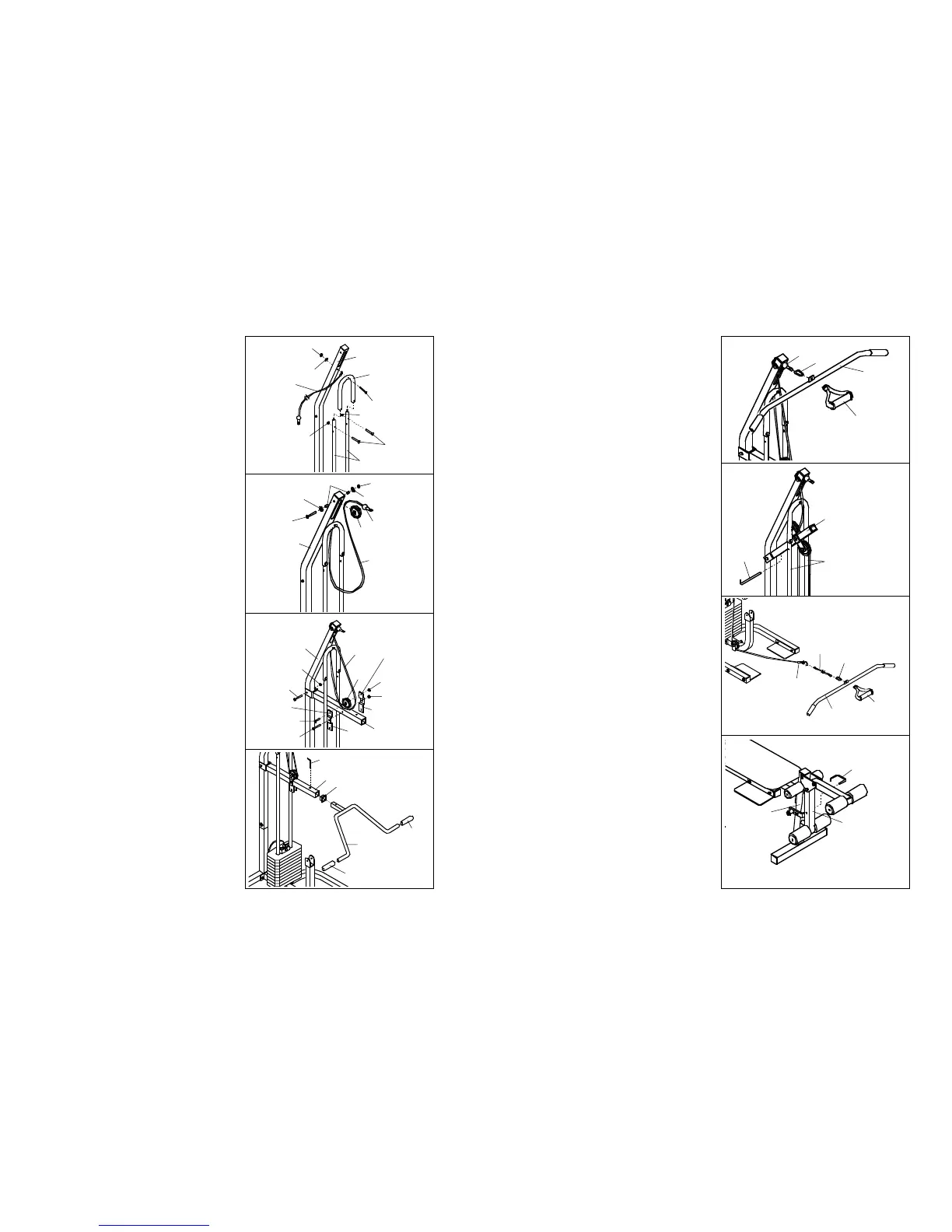

5. Attach the Weight Guide Top (53) to the Weight
Guides (38) with two 1/4” x 1 1/2” Bolts (61) and
two 1/4” Nylon Locknuts (60).
Attach the Medium Cable (68) and the Weight
Guide Top (53) to the Top Frame (42) with a 5/16”
x 3 3/4” Bolt (62), a 5/16” Washer (20), and a
5/16” Nylon Locknut (1).
6. Wrap the Medium Cable (68) around a 3 1/2”
Pulley (4). Note: The ball on the Cable must be
on the indicated side of the Pulley. Attach the
Pulley to the Top Frame (42) with the 3/8” x 2 3/4”
Bolt (12), two 3/8” Washers (3), two 17/32” Long
Spacers (13), and a 3/8” Nylon Locknut (2).
7. Attach the Press Arm Lever (8) to the Top Frame
(42) with a 5/16” x 3” Bolt (69) and a 5/16” Nylon
Jam Nut (5).
Attach the two Pulley Brackets (9) to the Press
Arm Lever (8) with a 5/16” x 2 1/4” Bolt (23) and
a 5/16” Nylon Locknut (1). Note: The short ends
of the Pulley Brackets must be on top.
Wrap the Medium Cable (68) around a 3 1/2”
Pulley (4). Attach the Pulley to the Pulley
Brackets (9) with a 3/8” x 1 3/4” Bolt (22) and a
3/8” Nylon Locknut (2).
8. Press the 1 1/2” Square Bushing (10) into the
indicated end of the Press Arm Lever (8).
Insert the Press Arm (7) into the Press Arm Lever
(8). Align the holes in the Press Arm with the
holes in the Press Arm Lever. Insert the Short “L”-
Pin (14) into the Press Arm Lever and the Press
Arm.
Wet the handles on the Press Arm (7) with soapy
water. Slide a Handgrip (6) onto each handle.
5
61
62
42
20
1
60
60
68
53
38
4
68
2
3
3
12
Ball
69
Short End
Short End
13
1
5
2
22
42
6
6
10
14
8
7
6
8
7
4
68
42
23
9
9
8
ATTACHING THE LAT BAR OR NYLON STRAP TO
THE HIGH PULLEY STATION
Attach the Lat Bar (24) to the Medium Cable (68) with
a Cable Clip (72).
The Nylon Strap (70) can be attached in the same
manner.
LOCKING THE PRESS ARM LEVER
Disconnect the cable and s-hook from the leg lever.
Remove the Press Arm (SEE ADJUSTING THE
PRESS ARM on page 10).
Lift the Press Arm Lever (8) until it is above the indi-
cated holes in the Weight Guides (38). Insert the
Long “L”-Pin (58) through the holes in the Weight
Guides. Rest the Press Arm Lever on the Long “L”-
Pin.
USING THE LOW PULLEY STATION
To perform low pulley exercises, the press arm lever
must be locked in place (see LOCKING THE PRESS
ARM LEVER above). Remove the backrest (see
ATTACHING AND REMOVING THE BACKREST on
page 10).
Attach the Lat Bar (24) to the Short Cable (71) with a
Cable Clip (72). Attach the other end of the Short Cable
to the end of the Long Cable (18) with the s-hook.
The Nylon Strap (70) can be attached in the same
manner.
LOCKING THE LEG LEVER
To lock the Leg Lever (37), hold the Leg Lever
against the Front Leg (31). Insert the Long Lock Pin
(11) into the Leg Lever. The clip on the Long Lock Pin
should be turned so that it locks onto the Front Leg.
Note: The leg lever should be locked whenever it
is not being used.
70
24
37
11
31
72
18
71
8
68
72
24
70
38
58
