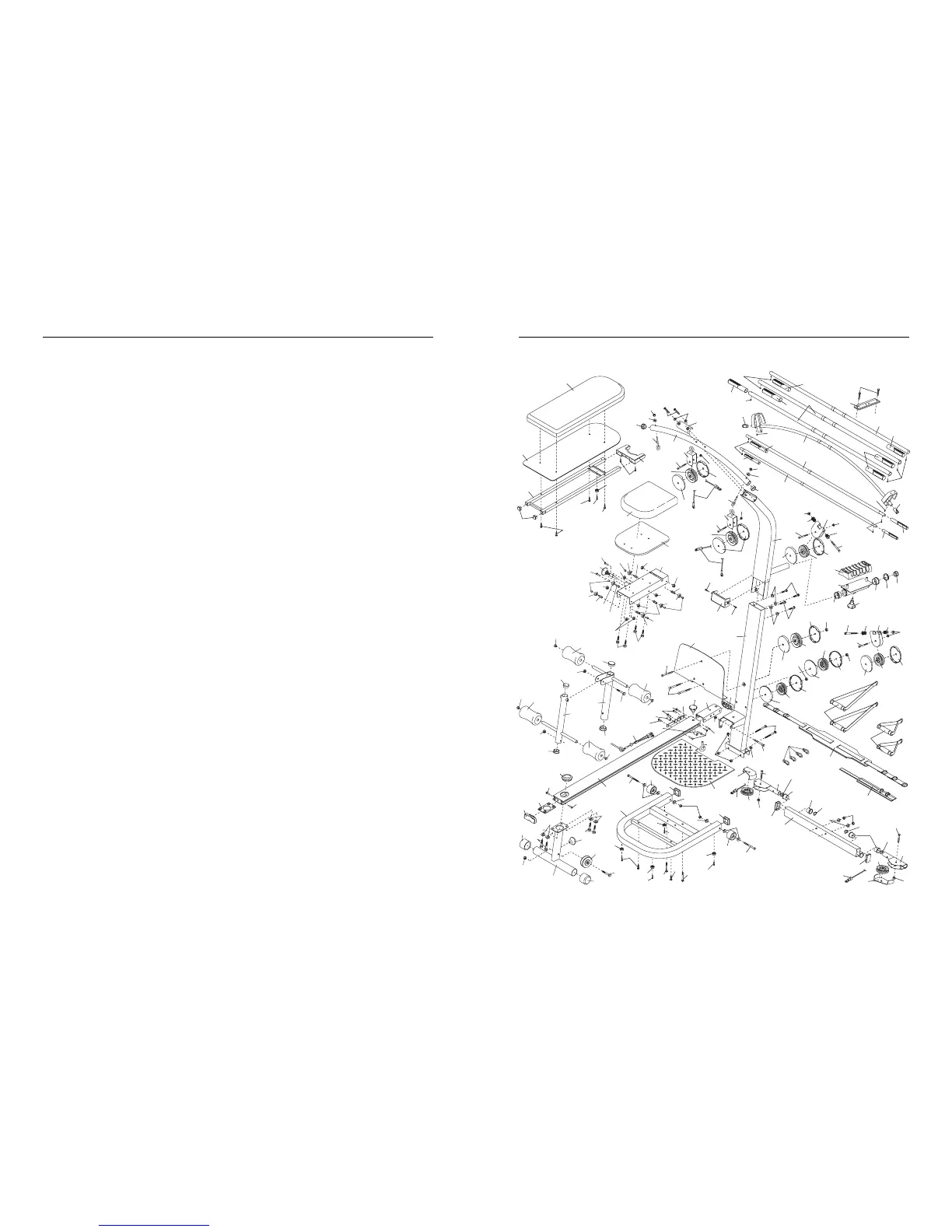

EXPLODED DRAWING—Model No. WEEVSY59430 R0903A
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
1 1 Base
2 1 Base Plate
3 1 Upright
4 1 Lat Tower
5 1 Bench Rail
6 1 Front Leg
7 1 Leg Lever
8 1 Backrest Backing
9 1 Seat Backing
10 1 Lat Tower Crossbar
11 1 Cross Tube
12 1 Seat Carriage
13 1 Seat
14 1 Backrest
15 1 Backrest Frame
16 1 Backrest Cap
17 1 19mm Spacer
18 1 Crossbow Fulcrum
19 1 Leg Developer
20 2 10-pound Short Crossbow Cap
21 2 High Pulley Housing
22 2 Swivel Arm
23 1 Foot Plate
24 2 M10 x 102mm Button Head Bolt
25 4 Arm Bushing
26 4 Foam Pad
27 2 57mm Round Outer Cap
28 9 90mm Pulley
29 14 Pulley Cover
30 1 Storage Knob
31 2 Wheel
32 1 Leg Lever Cable
33 2 Short Cable
34 2 Eyebolt
35 1 Crossbow Spacer
36 1 20-pound Removable Crossbow
37 2 Fulcrum Bushing
38 2 38mm Round Inner Cap
39 1 Bench Rail Bracket
40 1 M10 x 116mm Button Head Bolt
41 2 38mm x 64mm Inner Cap
42 1 Bench Knob
43 1 Fulcrum Knob
44 1 10-pound centre Crossbow
45 1 Seat Knob
46 4 M8 x 25mm Button Head Screw
47 2 M10 Nut
48 1 Leg Press Strap
49 2 Short Handle
50 1 Ankle Strap
51 4 Cable Clip
52 4 M8 Split Washer
53 3 Plastic Foot
54 2 25mm Square Inner Cap
55 1 45mm Round Inner Bushing
56 2 45mm Round Inner Cap
57 2 50mm Round Inner Cap
58 4 M6 x 45mm Screw
59 2 M8 Washer
60 1 M10 x 69mm Bolt
61 6 Seat Wheel
62 15 M4 x 16mm Screw
63 6 M6 Zinc Nylon Locknut
64 2 M10 x 72mm Bolt
65 3 M8 Nylon Locknut
66 1 M10 x 132mm Bolt
67 1 10-pound Removable Crossbow
68 2 Long Handle
69 2 M6 Black Nylon Locknut
70 2 M10 x 65mm Button Head Screw
71 6 M10 x 47mm Button Head Bolt
72 1 Crossbow Cover Plate
73 2 M10 x 143mm Carriage Bolt
74 4 Pivot Bushing
75 10 M10 Washer
76 20 M10 Nylon Locknut
77 6 M6 Shoulder Bolt
78 4 19mm Round Inner Cap
79 2 40-pound Crossbow Cap
80 1 Long Cable
81 2 M10 x 108mm Bolt
82 12 M6 x 16mm Screw
83 2 M10 x 66mm Carriage Bolt
84 1 Fulcrum Endcap
85 12 M4 x 12mm Flat Head Screw
86 2 M8 x 19mm Button Head Screw
87 4 M10 x 25mm Button Head Screw
88 2 20-pound Crossbow Cap
89 1 Name Plate
90 6 11mm Spacer
91 1 Retainer Ring
92 1 “V”-pulley
93 1 Crossbar Cover
94 2 Pulley Housing
95 2 80-pound Crossbow
96 1 40-pound Crossbow
97 1 M10 x 107mm Bolt
98 2 50mm Square Inner Cap
99 2 Rail Inner Cap
100 4 80-pound Crossbow Cap
101 2 10-pound Crossbow Cap
102 2 Large Plastic Foot
103 4 M10 Split Washer
104 1 Hook
105 1 Rail Bracket
106 1 22mm Spacer
107 4 Snap Ring
108 1 Storage Knob Bracket
109 2 Half Pulley Cover
# 1 User’s Manual
# 1 Exercise Guide
# 1 Exercise Decal
# 1 Large Hex Key
# 1 Small Hex Key
# 5 Videocassette
PART LIST—Model No. WEEVSY59430 R0903A
