10

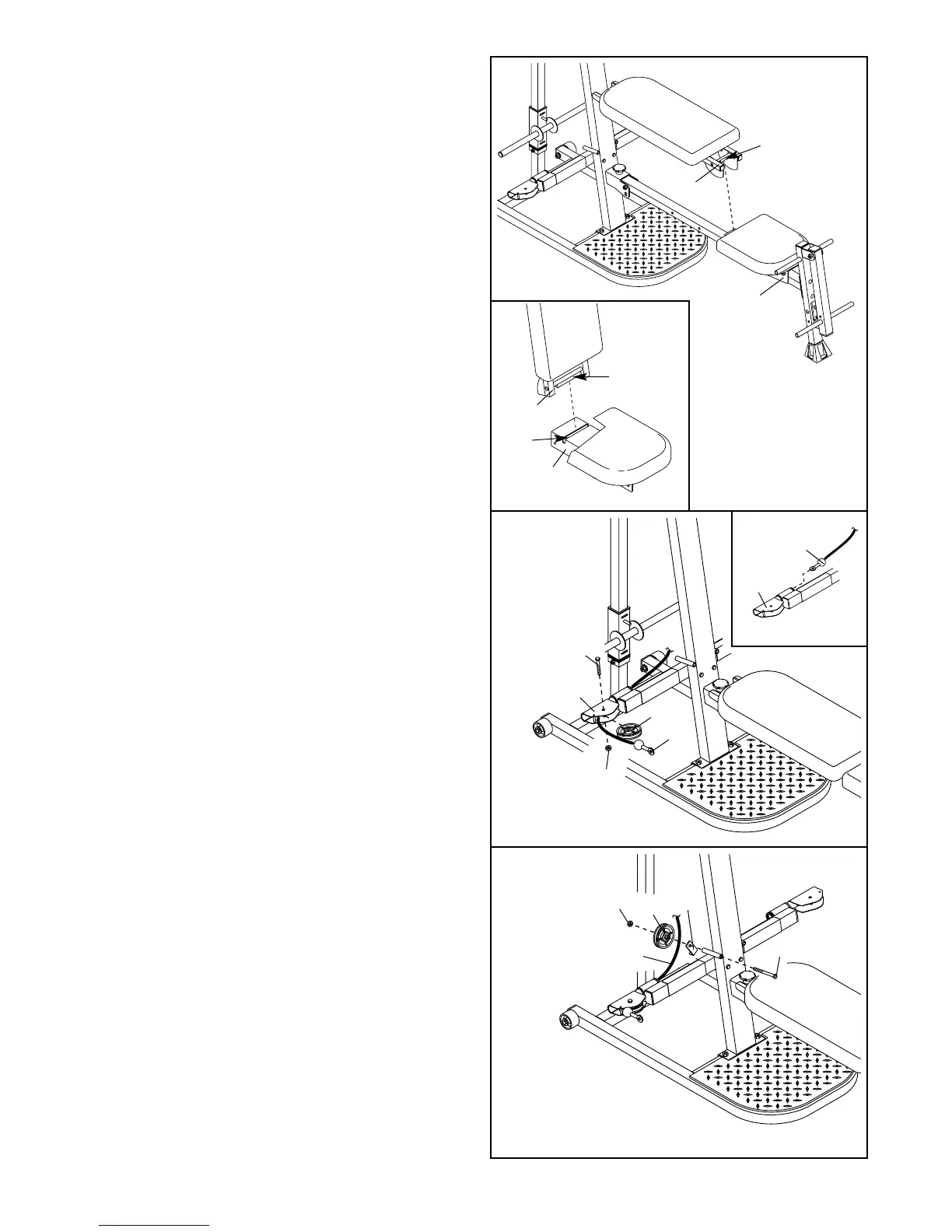

17. Insert the rod on the Backrest Frame (15) into the
slot in the Seat Carriage (12). Hold the Backrest
vertically over the Seat Carriage and slide the
rod into the slot, as shown in the inset draw-
ing.
18. Locate the Long Cable (80). Slide one end of
the Cable through the Pulley Arm (22) as shown
in the inset drawing.
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley to the Pulley Arm (22) with
an M10 x 40mm Bolt (71) and an M10 Nylon
Locknut (76).
19. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley and a Cable Trap (29) to
the Upright Base (3) with an M10 x 132mm Bolt
(72) and an M10 Nylon Locknut (76).
17
18
19
15
15
12
12
Rod
Slot
Rod
71
22
22
28
80
76
80
76
28
80
72
29
To Next Page
