6

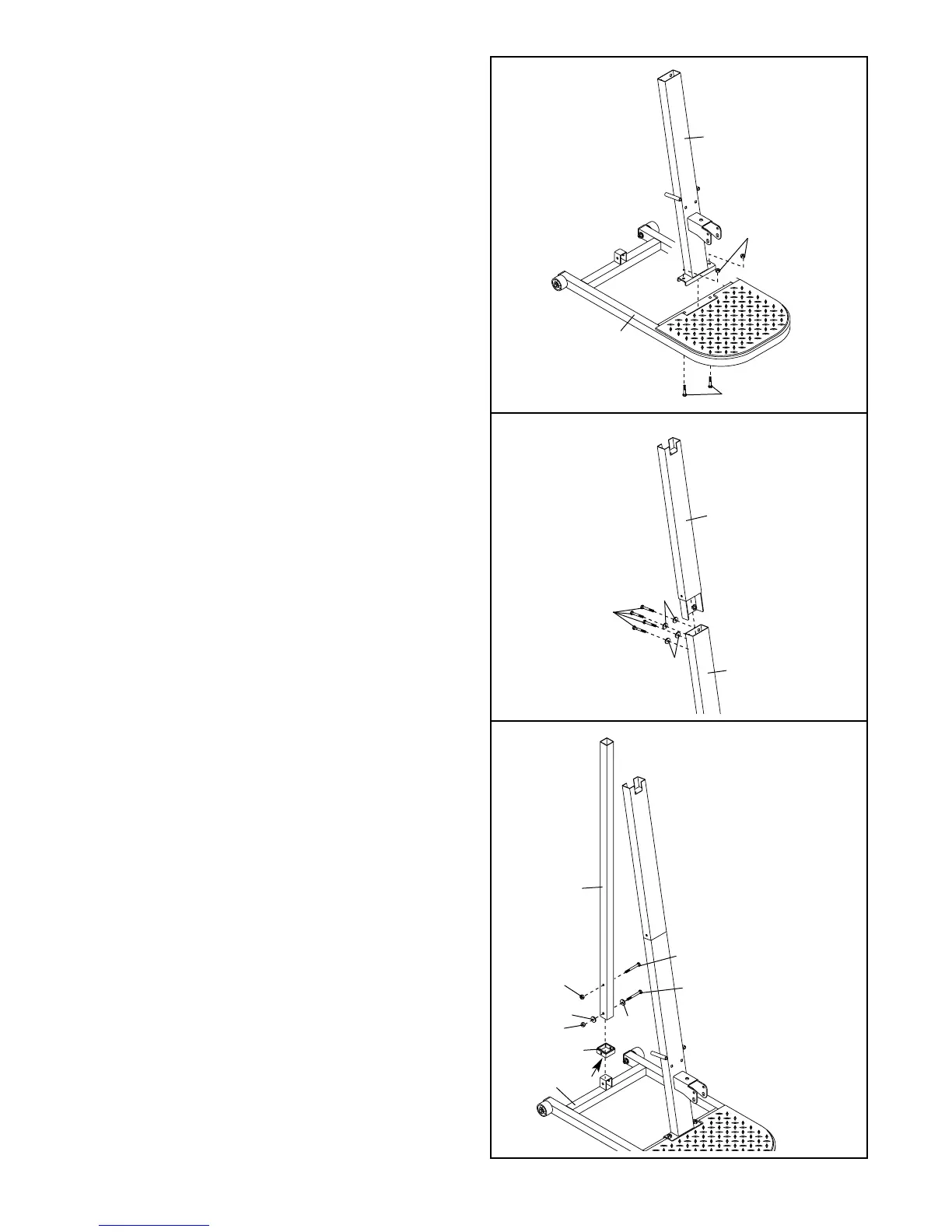

5. Note that the Carriage Stop (37) has been pre-
inserted into the Nylon Outer Bushing (74). Slide
the Nylon Outer Bushing onto the Rear Upright
(8); make sure that the visible edge of the
Carriage Stop (37) is on the bottom.
Attach the Nylon Outer Bushing (74) to the Rear
Upright (8) at the second hole from the bottom
with an M8 x 65mm Bolt (67) and an M8 Nylon
Locknut (65).
Attach the Rear Upright (8) to the Base (1) with
an M10 x 60mm Bolt (63), two M10 Washers
(75), and an M10 Nylon Locknut (76).
3. Insert two M10 x 61mm Carriage Bolts (83) into
the bottom of the Base (1). Set the Base flat on
the floor. Attach the Upright Base (3) to the Base
with the Bolts and two M10 Nylon Locknuts (76).
5
3
8
65
75
75
76
67
63
74
37
1
3
76
1
83
4. Attach the Upright (4) to the Upright Base (3) with
four M10 x 25mm Button Bolts (68) and four M10
Split Washers (43).
4
4
3
68
43
43
