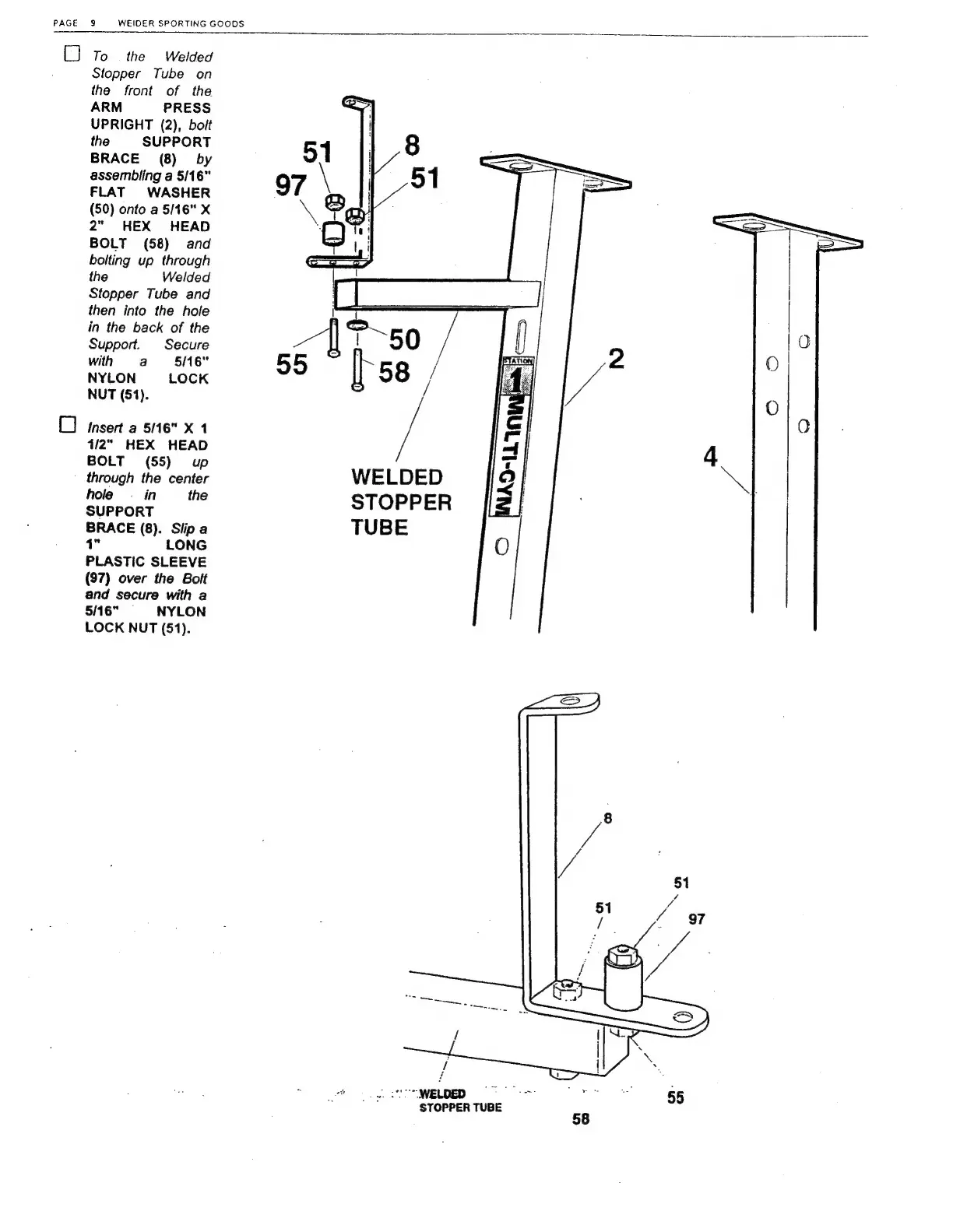

PAGE 3
[] то
WEIDER SPORTING GOODS
the Welded
Stopper Tube on
the front of the
ARM PRESS
UPRIGHT (2), bolt
the
SUPPORT
BRACE (8) by
assembling a 5/16"
FLAT WASHER
(50) onto а 5/16" X
2"
HEX HEAD
BOLT (58) and
bolting up through
the
Welded
Stopper Tube and
then into the hole
in the back of the
Support. Secure
with
a 5/16"
NYLON LOCK
NUT (51).
[] insert a 5/46" x 1
4/ “
HEX HEAD
BOLT (55) up
through the center
hole
. in the
SUPPORT
BRACE (8). Síp a
1"
LONG
PLASTIC SLEEVE
(97) over the Bolt
and secure with a
5/16" = NYLON
LOCK NUT (51).
WELDED
STOPPER
TUBE
WELDED =
STOPPER TUBE
