Weider Powermax 70072 - Top Frame Assembly

PAGE
15 WEIDER SPORTING GOODS

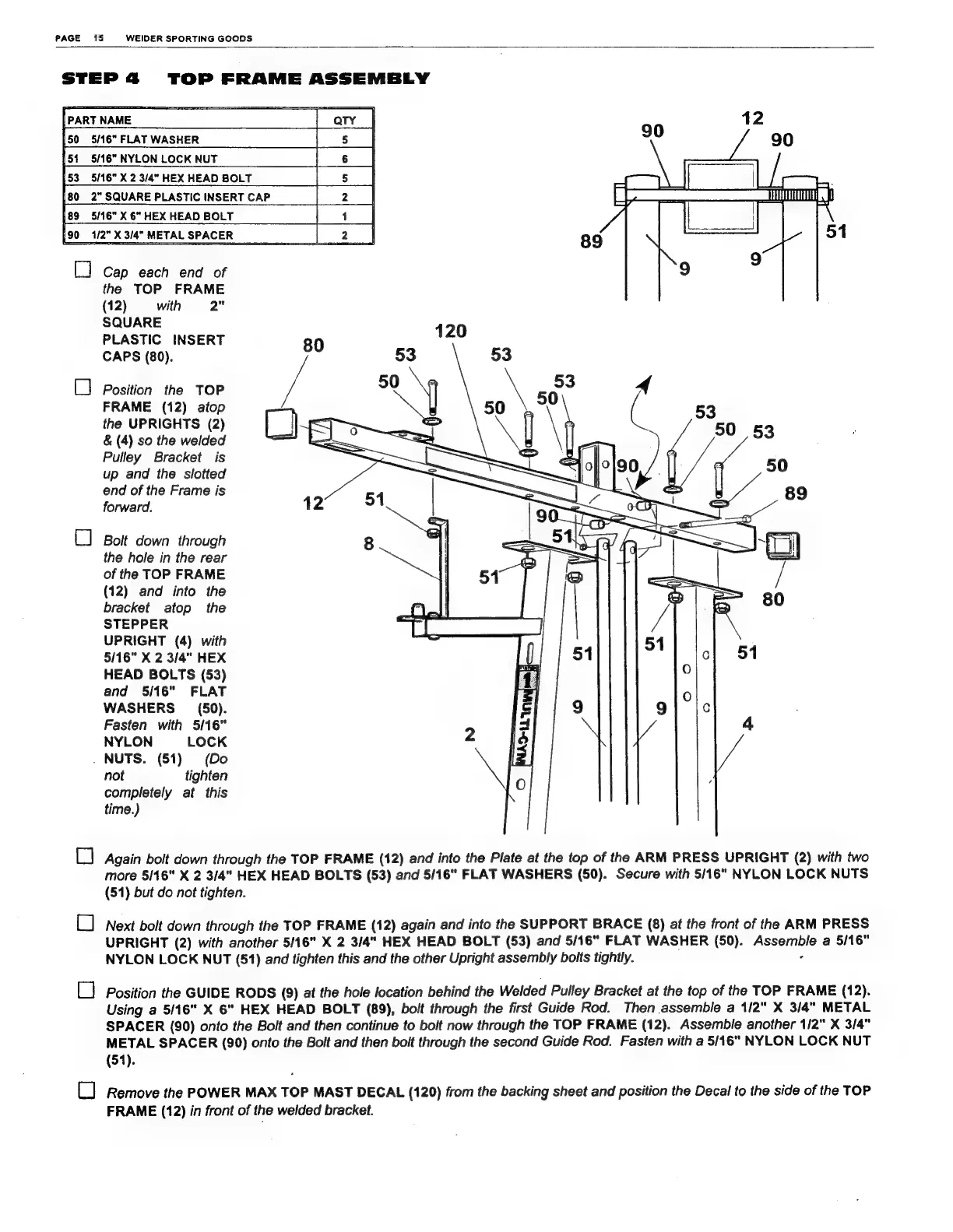

STEP 4 TOP FRAME ASSEMBLY
П Сар еасћ епа оѓ
PPARTNAME __ 0 0 00 | от |
|o sierFLATWaSHER | s |
| snernyrontocknut | e|
|53 5/16" X 2 3/4" HEX HEAD BOLT nm
|80 2" SQUARE PLASTIC INSERT САР |
|89 5/16" X 6" HEX HEAD BOLT BENE
[90 1/2" X3/4" METAL SPACER |
. NUTS. (51) (бо
the TOP FRAME
(12) with 2"
SQUARE
PLASTIC INSERT
CAPS (80).
Position the TOP
FRAME (12) atop
the UPRIGHTS (2)
& (4) so the welded
Pulley Bracket is
up and the slotted
end of the Frame is
forward.
Bolt down through
the hole in the rear
of the TOP FRAME
(12) and into the
bracket atop the
STEPPER
UPRIGHT (4) with
5/16" X 2 3/4" HEX
HEAD BOLTS (53)
and 5/16" FLAT
WASHERS (50)
Fasten with 5/16"
NYLON LOCK
not tighten
completely at this
time.)
Again bolt down through the TOP FRAME (12) and into the Plate at the top of the ARM PRESS UPRIGHT (2) with two
more 5116" X 2 3/4" HEX HEAD BOLTS (53) and 5/16" FLAT WASHERS (50). Secure with 5/16" NYLON LOCK NUTS
(51) but do not tighten.
Next bolt down through the TOP FRAME (12) again and into the SUPPORT BRACE (8) at the front of the ARM PRESS
UPRIGHT (2) with another 5/16" X 2 3/4" HEX HEAD BOLT (53) and 5/16" FLAT WASHER (50). Assemble a 5/16"
NYLON
LOCK
NUT
(51)
and
tighten
this
and
the
other
Upright
assembly
bolts
tightly.
.
Position the GUIDE RODS (9) at the hole location behind the Welded Pulley Bracket at the top of the TOP FRAME (12).
Using a 5/16" X 6" HEX HEAD BOLT (89), bolt through the first Guide Rod. Then assemble a 1/2" X 3/4" METAL
SPACER (90) onto the Bolt and then continue to bolt now through the TOP FRAME (12). Assemble another 1/2" X 3/4"
METAL SPACER (90) onto the Bolt and then bolt through the second Guide Rod. Fasten with a 5/16" NYLON LOCK NUT
(51).
Remove
the
POWER
MAX
TOP
MAST
DECAL
(120)
from
the
backing
sheet
and
position
the
Decal
to
the
side
of
the
TOP
FRAME (12)
in front
of
the
welded
bracket.
