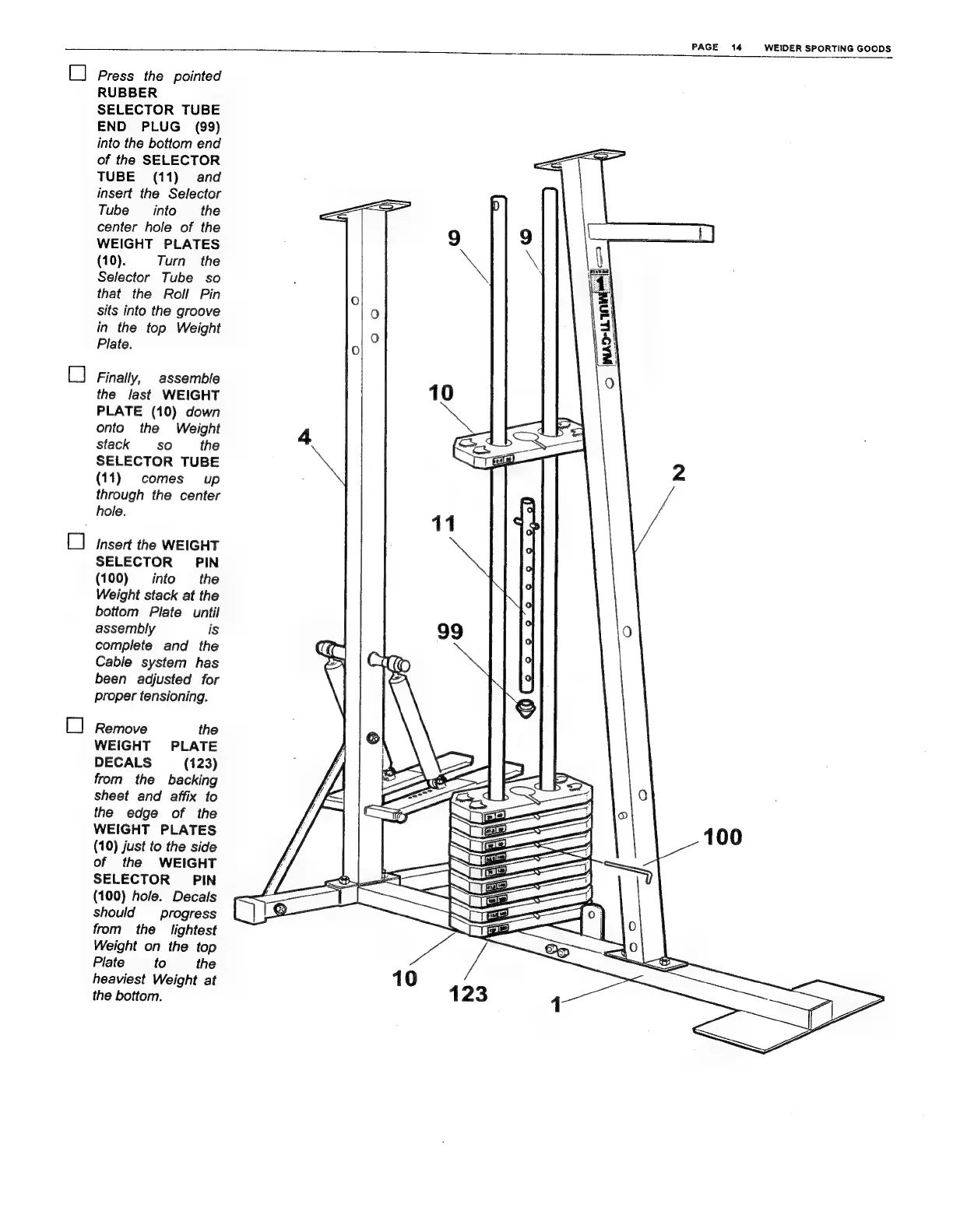

C] Press the pointed
RUBBER
SELECTOR TUBE
END PLUG (99)
into the bottom end
of the SELECTOR
TUBE (11) and
insert the Selector
Tube into the
center hole of the
WEIGHT PLATES
(10). Тип the
Selector Tube so
that the Roll Pin
sits into the groove
in the top Weight
Plate.
O Finally, assemble
the last WEIGHT
PLATE (10) down
onto the Weight
stack 50 ће
SELECTOR TUBE
(11) comes ир
through the center
hole.
0 insert the WEIGHT
SELECTOR PIN
(100) into the
Weight stack at the
bottom Plate until
assembly is
complete and the
Cable system has
been adjusted for
proper tensioning.
[0 Remove the
WEIGHT PLATE
DECALS (123)
Пот the backing
sheet and affix to
the edge of the
WEIGHT PLATES
(10) just to the side
of the WEIGHT
SELECTOR РІМ
(100) hole. Decals
should progress
from the lightest
Weight on the top
Plate to the
heaviest Weight at
the bottom.
