PAGE
16
WEIDER
SPORTING
GOODS

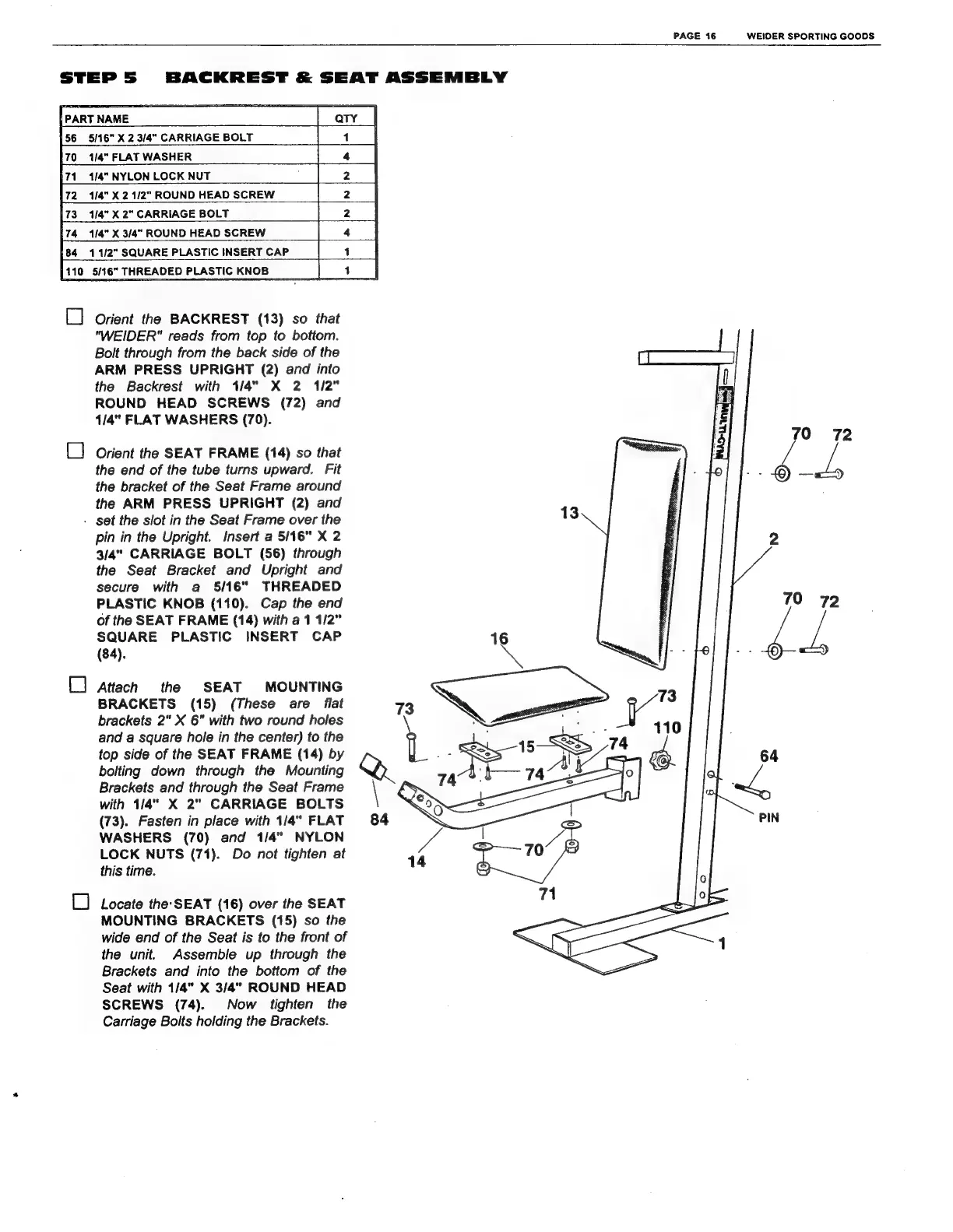

STEP
5
BACKREST
&
SEAT
ASSEMBLY
|
PART
NAME
156
5/16"
X
2
3/4"
CARRIAGE
BOLT
1
i
70
wriaTWASHER
__
__|
4
|
|
та"
NYLONLOCKNUT
_______
ie
ee
ra
174"
X
21/2"
ROUND
HEAD
SCREW
—
|
2
|
73
14"
X
2"
CARRIAGE
BOLT
|
2
|
|
«4
|
|
s
|
174
1/4"
X
3/4"
ROUND
HEAD
SCREW
[84
11/2"
SQUARE
PLASTIC
INSERT
САР
110
5/16"
THREADED
PLASTIC
KNOB
||
i
1
опет
the
BACKREST
(13)
so
that
"WEIDER"
reads
from
top
to
bottom.
Bolt
through
from
the
back
side
of
the
ARM
PRESS
UPRIGHT
(2)
and
into
the
Backrest
with
114"
X
2
1/2"
ROUND
HEAD
SCREWS
(72)
and
1/4"
FLAT
WASHERS
(70).
[]
Orient
the
SEAT
FRAME
(14)
so
that
the
end
of
the
tube
turns
upward.
Fit
the
bracket
of
the
Seat
Frame
around
the
ARM
PRESS
UPRIGHT
(2)
and
·
set
the
slot
in
the
Seat
Frame
over
the
pin
in
the
Upright.
Insert
a
516"
X
2
3/4"
CARRIAGE
BOLT
(56)
through
the
Seat
Bracket
and
Upright
and
secure
with
a
5/16"
THREADED
PLASTIC
KNOB
(110).
Cap
the
end
of
the
SEAT
FRAME
(14)
with
a
1
1/2"
SQUARE
PLASTIC
INSERT
CAP
(84).
C]
Attach
the
SEAT
MOUNTING
BRACKETS
(15)
(These
are
flat
brackets
2"
X
6"
with
two
round
holes
and
a
square
hole
in
the
center)
to
the
top
side
of
the
SEAT
FRAME
(14)
by
bolting
down
through
the
Mounting
Brackets
and
through
the
Seat
Frame
with
114"
X
2"
CARRIAGE
BOLTS
(73).
Fasten
in
place
with
1/4"
FLAT
WASHERS
(70)
and
1/4"
NYLON
LOCK
NUTS
(71).
Do
not
tighten
at
this
time.
L]
Locate
the:
SEAT
(16)
over
the
SEAT
MOUNTING
BRACKETS
(15)
so
the
wide
end
of
the
Seat
is
to
the
front
of
the
unit.
Assemble
up
through
the
Brackets
and
into
the
bottom
of
the
Seat
with
1/4"
X
3/4"
ROUND
HEAD
SCREWS
(74).
Now
tighten
the
Carriage
Bolts
holding
the
Brackets.
