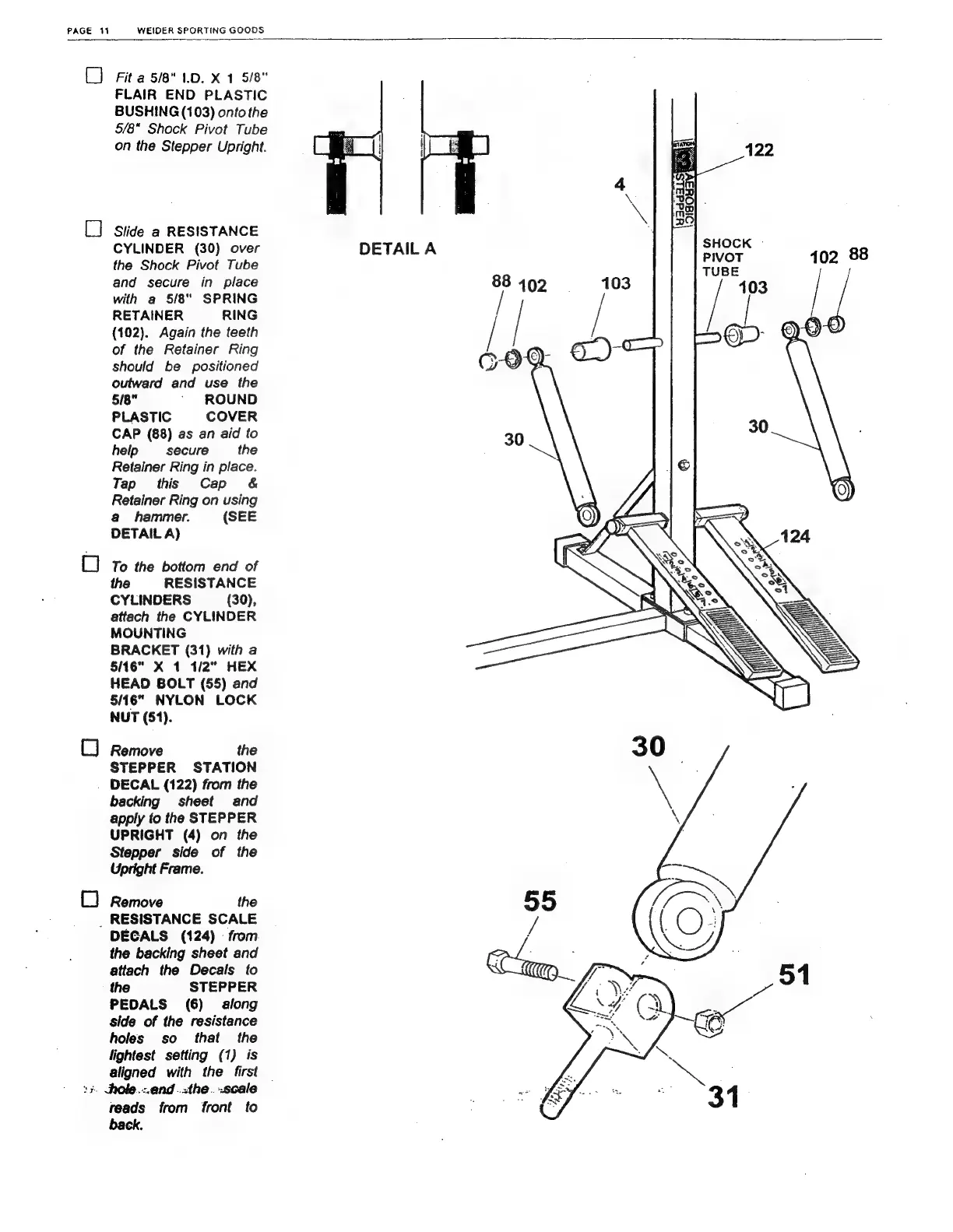

Fit a 5/8" LD. X 1 5/8"
FLAIR END PLASTIC
BUSHING (103) onto the
5/8" Shock Pivot Tube
on the Stepper Upright.
Slide a RESISTANCE
CYLINDER (30) over
the Shock Pivot Tube
and secure in place
with a 5/8" SPRING
RETAINER RING
(102). Again the teeth
of the Retainer Ring
should be positioned
outward and use the
5/8" ` ROUND
PLASTIC COVER
CAP (88) as an aid to
help secure the
Retainer Ring in place.
Tap this Cap &
Retainer Ring on using
a hammer. (SEE
DETAIL A)
To the bottom end of
the RESISTANCE
CYLINDERS (30),
attach the CYLINDER
MOUNTING
BRACKET (31) with a
546" X 1 1/2" HEX
HEAD BOLT (55) and
5/16" NYLON LOCK
NUT (51).
Remove the
STEPPER STATION
DECAL (122) from the
backing sheet and
apply to the STEPPER
UPRIGHT (4) on the
Stepper side of the
Upright Frame.
Remove the
_ RESISTANCE SCALE
DECALS (124) from
the backing sheet and
attach the Decals to
the STEPPER
PEDALS (6) along
side of the resistance
holes so that the
lightest setting (1) is
aligned with the first
s+. whole. and -the . scale
reads from front to
back.
DETAIL A
