Weider Pro 335 - Part Identification Chart

16
MONDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
AEROBIC EXERCISE
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
FRIDAY
Date:
/ /
Make photocopies of this page for scheduling and recording your workouts.
5

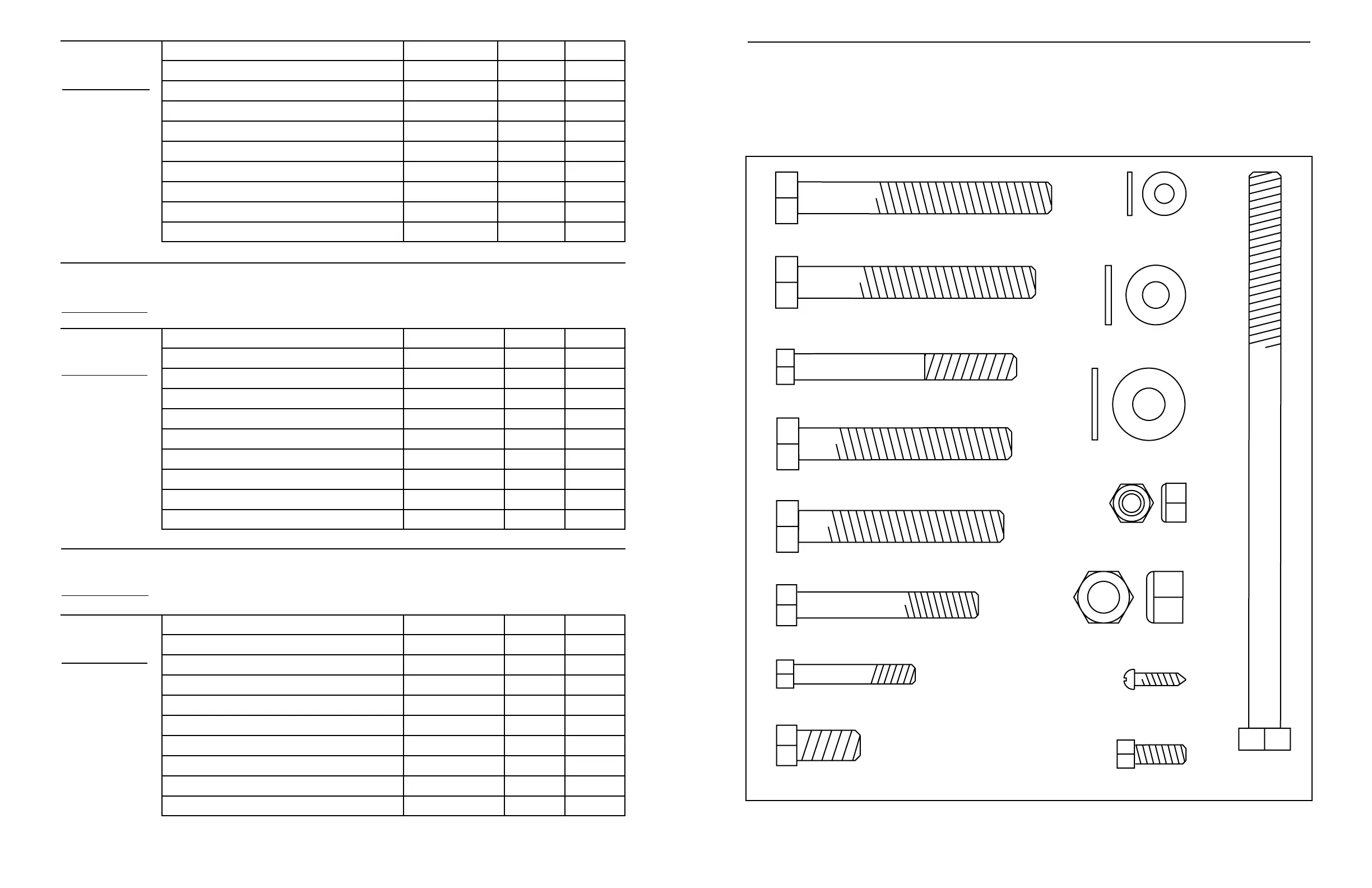

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
each part refers to the key number of the part, from the PART LIST on page 18 of this manual. Important:
Some parts may have been pre-assembled. If you cannot find a part in the parts bags, check to see if it
has been pre-assembled.
M10 x 80mm Bolt (35)
M10 x 65mm Bolt (40)
M8 Nylon Locknut (13, 62)
M8 Washer (38, 63)
M10 Nylon Locknut (19)
M6 Washer (25)
M10 Washer (24)
M10 x 75mm Bolt (51)
M10 x 175mm Bolt (17)
M8 x 57mm Bolt (39)
M4 x 16mm Screw (34)
M10 x 67mm Bolt (18)
M6 x 38mm Bolt (16)
M6 x 16mm Bolt (15)
M10 x 20mm Bolt (50)
M8 x 70mm Bolt (67)
PART IDENTIFICATION CHART
