Weider PRO 345 - Connect Seat Frame to Front Leg; Install Brace; Attach Seat Frame to Crossbar

7
3
47
47
50
50
47
2
2
2
3
44
37
37
34
33
8
8

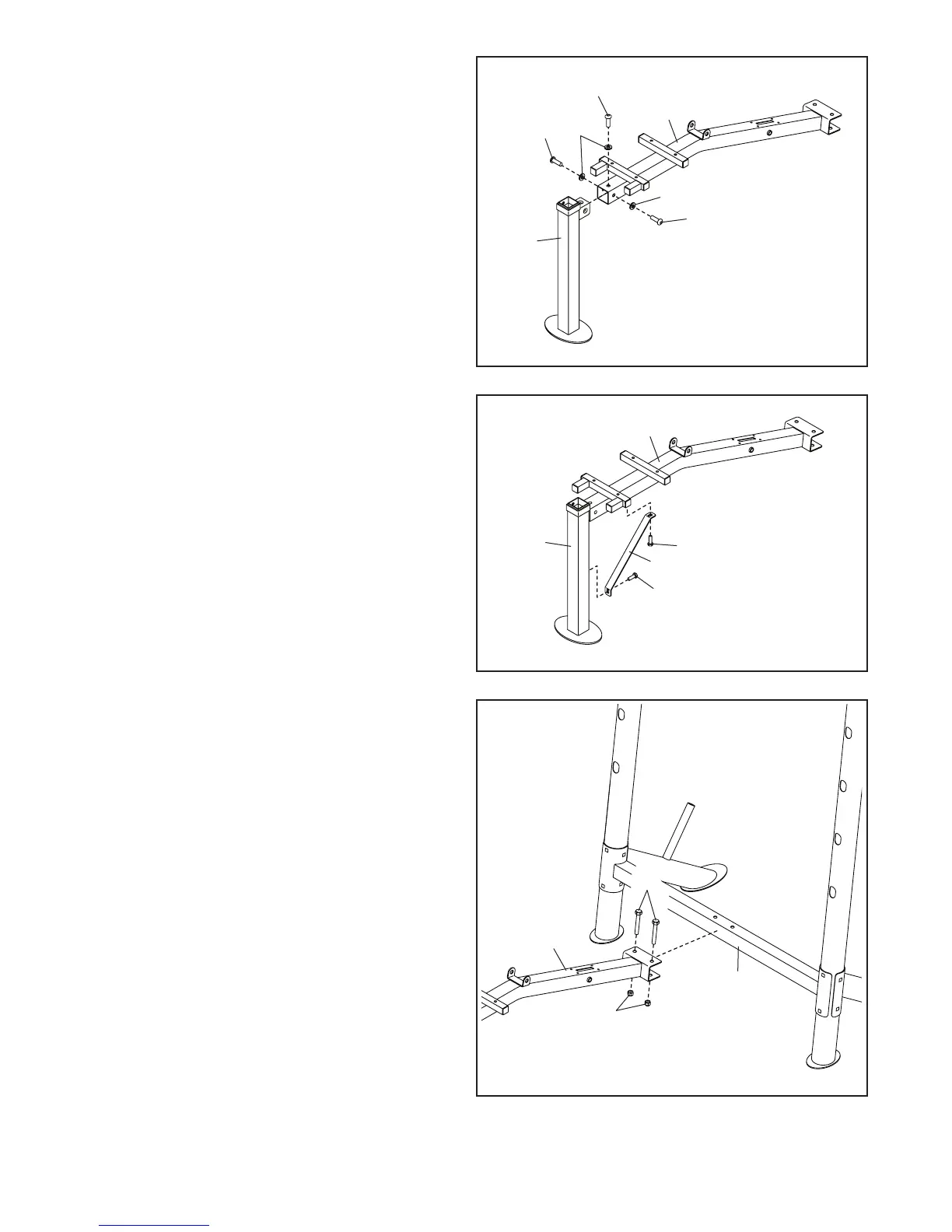

3. Attach the Seat Frame (2) to the Lower Front
Leg (8) with three M10 x 20mm Screws (47) and
three M10 Washers (50); do not tighten the
Screws yet.
4. Attach the Brace (44) to the Seat Frame (2) and
the Lower Front Leg (8) with two M8 x 20mm
Screws (37); do not tighten the Screws yet.
4
5
5. Attach the Seat Frame (2) to the Crossbar (3)
with two M10 x 70mm Bolts (34) and two M10
Locknuts (33).
See steps 2–4. Tighten the M10 Locknuts
(33), the M10 x 20mm Screws (47), and the
M8 x 20mm Screws (37).
